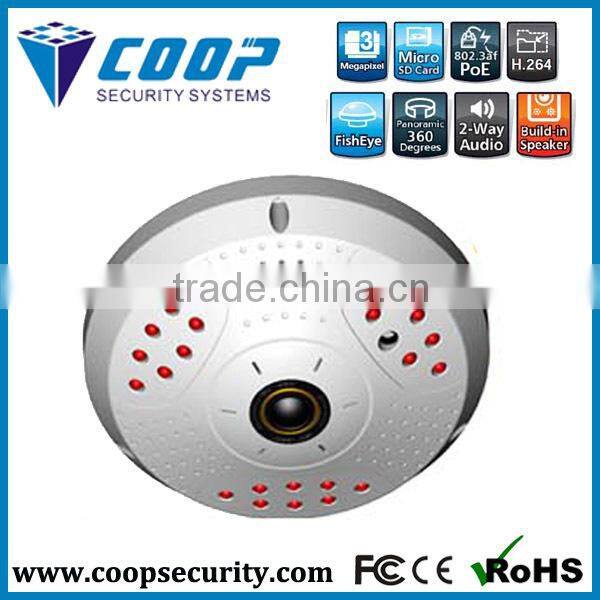

Home Security 360 degree Fisheyes Panoramic Camera WDR 1.3mp PTZ IP Camera
High Quality 1.3/3.0 Mega Pixel Image
COOP FPC-HD equips a 1.3/3.0 MegaPixel sensor for capturing the high quality video
stream. With this sensor, COOP FPC-HD is capable to capture images up to1280*9620/2048*1536pixels resolution. One of the most compelling advantages of MegaPixel surveillance systemsis the ability to capture more details in a frame and at the same time not missing any finer details, that are useful for such as license plateidentification and human recognition.3.0 Mepapixel Series offer Wide Dynamic Range
Micro SDCard Recording and 802.3af PoE
Memory card slot provides local storage function for saving image files to the specified SD card in your camera. This function can be enabled only when you insert the well-operative Micro SD/SDHC card to the camera. The camera has 802.3af PoE port so you can install it away from the power source.
IR-CUT Removable (ICR)
COOP FPC-HD equips with ICR. IR-CUT Removable is a gear which will adjust the IR filter for
adapting the light condition in the environment. With ICR, COOP FPC-HD can be used for most of
indoor locations
Support Built-in Microphone and Speaker
COOP FPC-HD has the built-in microphone and speaker, so a user can use two-way audio functionwithout external microphone and speaker.
Specification |
HP-13FPC-HD |
HP-30FPC-HD |
|
Optoelectronic |
|
||
Lens |
Fisheye lens, f=1.16mm, F=2.0 |
||
Field of View |
185° |
||
Iris |
Fixed |
||
Sensor |
1/3" Progressive Scan CMOS |
1/3.2" Progressive Scan CMOS |
|
Effective Pixels |
About 1.3 megapixels |
About 3.0 megapixels |
|
Sensibility |
0.15Lux F2.0(Color)/0.015Lux F2.0(B/W) |
0.5Lux F2.0(Color)/0.05Lux F2.0(B/W) |
|
Day/Night |
Auto switch IR Cut Filter |
||
Image |
|
||
Image Flip |
Horizontal/Vertical |
||
Image Adjustment |
Brightness, saturation, sharpness, contrast, BLC,AWB |
||
Max. Resolution |
1280X960 |
2048X1536 |
|
Video Compression |
Dual Stream H.264 |
||
Bit Rate |
100Kbps~6Mbps |
500Kbps~6Mbps |
|
Max. Frame Rate |
25fps |
15fps |
|
Audio |
|
||
Microphone |
Internal |
||
Speaker |
Internal 1W |
||
Audio Compression |
G.711 |
||

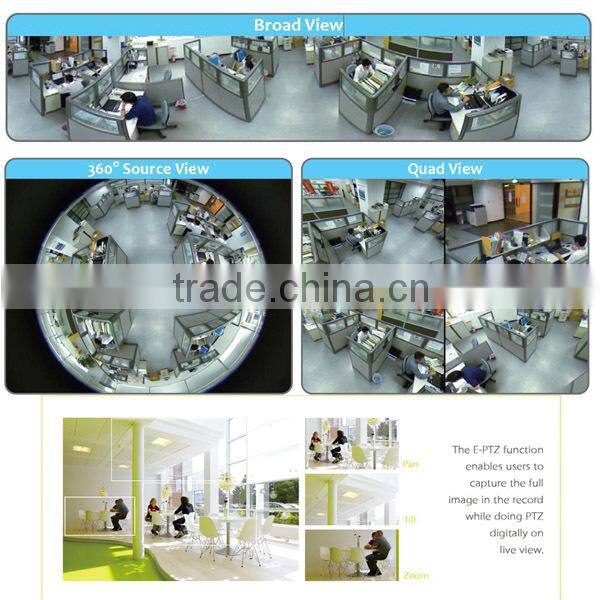

Pano Function |
|
||
Panoramic Display |
360° panoramic expansion-view,180° 2 split-view, 90° 4 split-view Longitude and latitude correcting view(wall mounted) |
||
DPTZ |
Digital Pan/Tilt/ Zoom |
||
Intelligent Function |
|
||
Intelligent Function |
4x3 Regional Detection,Detection sensibility 1~100 adjustable |
||
Alarm Function |
|
||
Alarm Trigger |
Motion Detection |
||
Alarm Action |
Alarm Record/Image Snap, Alarm Video/Image Upload(FTP) |
||
Network |
|
||
Protocol |
TCP/IP,HTTP,DHCP,DNS,RTP/RTSP,FTP,PPPOE,SMTP,NTP |
||
Compatibility |
ONVIF 2.0 |
||
Interface |
|
||
Comm. Interface |
1 RJ45 10M/100M Ethernet port |
||
Power Interface |
Φ5.5-2.1mm DC Socket |
||
Local Storage |
UP TO 128G TF Card |
||
General |
|
||
Power Supply |
DC12V±10%(1A) / POE |
||
Power Consumption |
<6W |
||
Working condition |
-15degree~+50 degree humidity 10%~ 95% |
||
Storage Condition |
-40degree ~+75degree humidity 10%~ 95% |
||
EMC |
CE,FCC |
||
Housing |
Plastic(White) |
||
Protection Grade |
IP50 |
||
Dimension |
Product:148×53mm;Package:260×215×103mm |
||
Weight |
N.W:0.5kg;G.W:1 kg |
||
Optional function |
WIFI,VANDALPROOF IK10 |
||
COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.
There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.
We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.
Fair
Certification if you need CE ROHS
