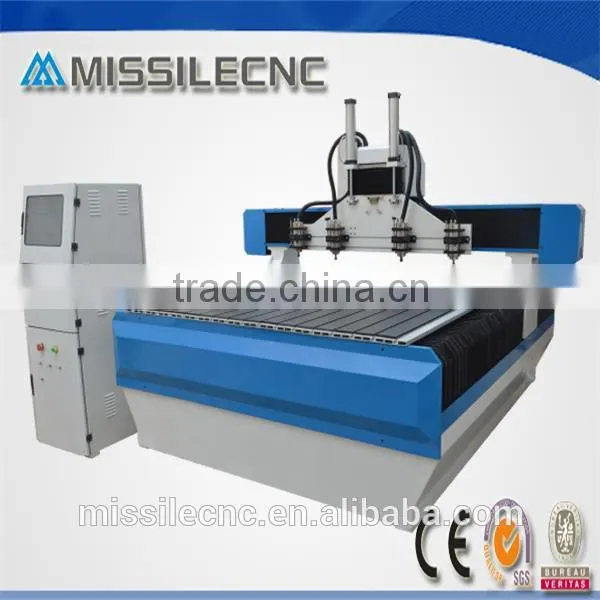

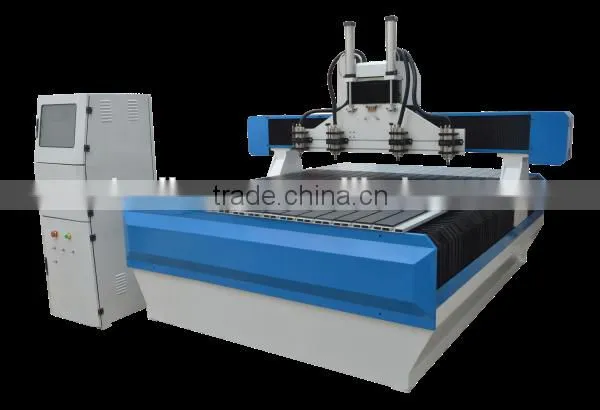

Multicam aluminum parts for cnc router machine 1618
FEATURES

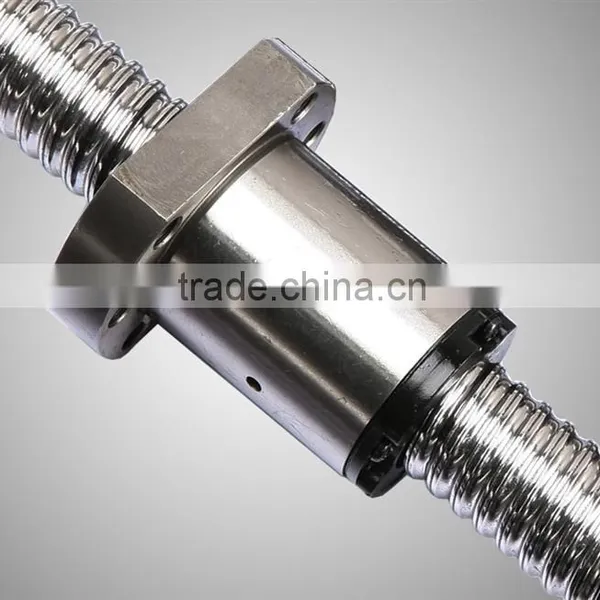

1.MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 3-AXIS IMPORT LINEAR SQUARE RAIL ,XYZ AXIS ADOPT IMPORT BALL SCREW ,MOVE SMOOTHLY ,HIGH ACCURACY CARVING.
2.HIGH-SPEED LOW NOISE IMPORT SPINDLE, LONG TIME.

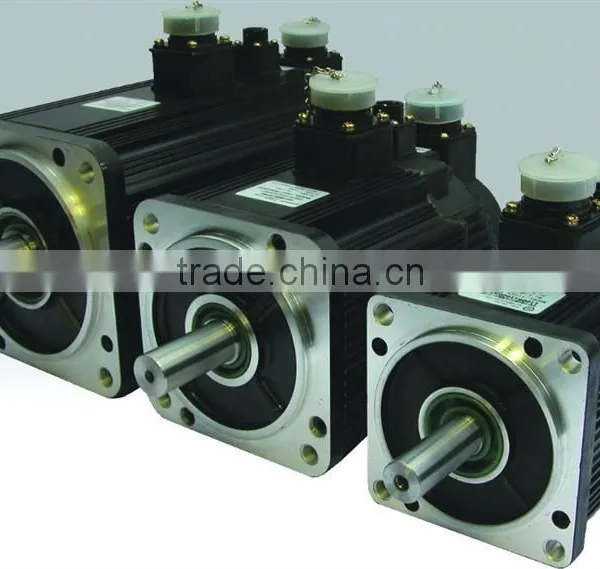

4. MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 3-AXIS ADOPT HIGH POWER HIGH SPEED LOW NOISE,LOW ERROR RATE SEVO DIVER AND MOTORS ,EFFICIENTLY AVOID MISPLACE SITUATION FOR MOTOR HEATING AFTER X –AXIS WORK HIGH SPEED LONG TIME
5. MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 WIDEN MACHINE HEAD PART ASSEMBLY ADDITIONAL BOB-WEIGHT AND ANCILLARY SHORTING,MAKE WHOLE MACHINE MOVE MORE SMOOTHLY,MORE FLEXIBLE UP AND DOWN.
6.MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 ORIGINAL NC STUDIO CONTROL SYSTEM WITH COMPUTER CONNECTION DIRECTLY,SUPPRT BREAK ,CONTINUE CARVING AFTER CUT OFF ELECTRIC ,AND AUTO-ALARM IN THE SITUTATION OF WRONG ENGRAVING,AVOID WASTE PRODUCTS,STRONG ANRI-INTERFERENCE ABILITY,AND AJUST PRODUCTS ACCURACY BY SOFTWARE, COMPATIBILITY TYPE3/ARTCAM/CASTMATE/PROE/UG/WEN TAI ECT KINDS OF CAD/CAM SOFTWARE.
7. MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 LATHE BED IS WELDED BY THICK SQUARE TUBES,THROUGH GIANT PLANER PROCESSING,STRONG AND NON-DEFRMATION,LONG LIFE TIME.
8. MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 3-AXIS ADOPT ANTI-DUST STRUCTURE TO AVOID FRAGMENT ENTERING INSIDE OF MACHINE,REDUCE TRANMISSION PART ABRATION.
9.UNIQUE START COUNTERWEIGHT,MAKE CARVING TABLE SMOOTHLY .REDUCING Z-AXIS ERROR RATE.
10. MULTICAM ALUMINUM PARTS FOR CNC ROUTER MACHINE 1618 OILING SYSTEM CAN EFFECIENTLY LUBRACATE FOR CNC MACHINE TRANMISSIOIN PART,INCREASE MACHINE LIFE TIME .
11.OPPITIONAL:AIR-COOLING OR WATER-COOKING SPINDLE,CUSTOMIZED MODELS.
| Model | 1618F4 |
| X,Y,Z Working Area | 1600x1800x180mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Ball Screw |
| Z axis transmission | Ball Screw |
| Max. Traveling speed | 40000mm/min |
| Max. Working speed | 20000mm/min |
| Soft working system | Windows2000/XP/98 |
| Rail Configuration | 25 square rail( opitional 20/30) |
| Spindle number | 4 |
| Resolution | 0.01mm |
| Spindle Power | 2.2kw*4 Airr-cooling spindle |
| Power (not spindle power) | 1.5kw |
| Spindle rotationg Speed | 24000RPM |
| Drive Motors | Servo made in China |
| Working Voltage | AC220V/50HZ |
| Operating System | Original Ncstudio system |
| Computer Interface | USB |
| Command Language | G-code/HP-GL |
| Software Compatibility | JDPaint |
| Packing | Wooden case |
MAIN APPLICATIOIN: WIDELY USED IN MDF,SOLID WOOD BOARD,ESPECIALLY ROSEWOOD ECT VALUABLE WOOD CARVING,3D RELIEF CARVING ECT.
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
