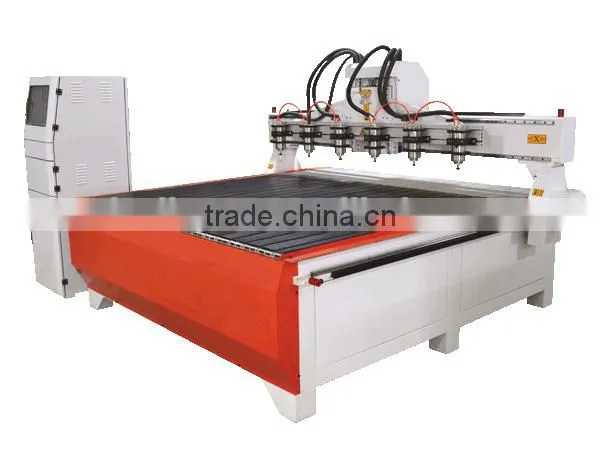

China manufacturer best sellers 1818 wood CNC Router for wood furniture
FEATURES
1. China manufacturer best sellers 1818 wood CNC Router for making wood furniture is specially designed for carving relief wooden furniture.
2.Structure : welded thick square-tube steel, whole body aging treatment, highly controlled rate of deformation .
3.Transmission: China manufacturer best sellers 1818 wood CNC Router for making wood furniture X and Y axis equipped with high precision high rigidity helical rack-pinion.Y axis is with two sides driving, high speed ,powerful

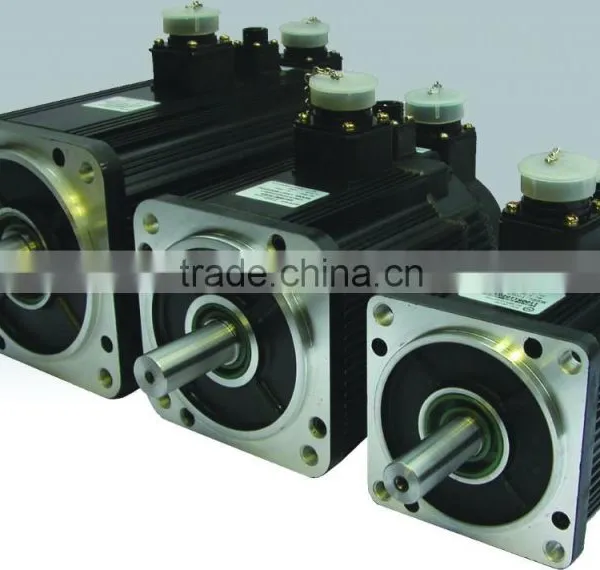

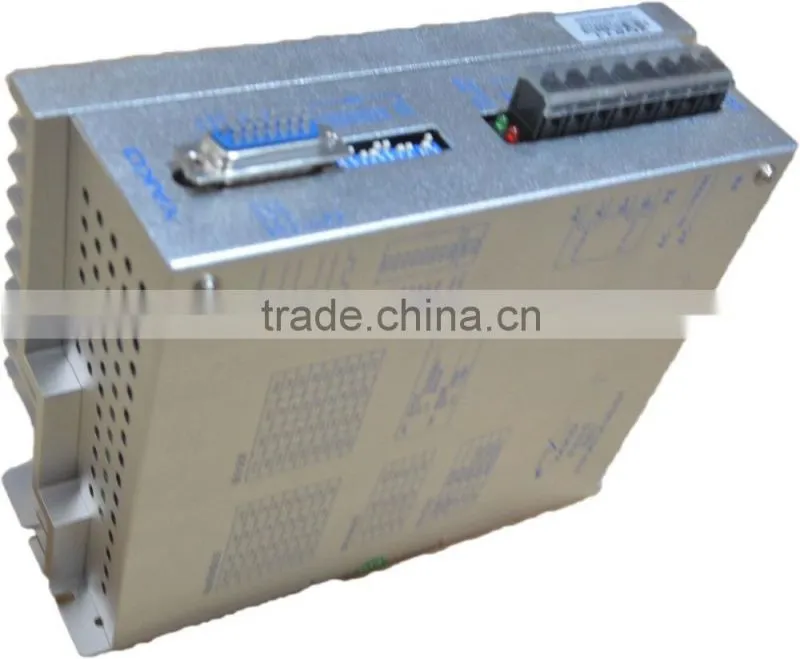

4.Driver: Leadshine Servo system ,economy mixture servo.
5.Control system : NC studio control system ,PC based control. It has the function of breaking point memorize function , which can back to work after accident (cutter break) or the next day.
6.Optional :Air cooling or water cooling spindle ,imported servo available ,customized different models.such as 1318 with one head and four spindles ,2515 with 2 headswith eight spindles.
7.Characteristic: Rack-pinion driving ,one type of economy relief CNC engraving machine.
| X,Y,Z Working Area | 1800x1800x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Ball Screw |
| Z axis transmission | Ball Screw |
| Max. traveling speed | 25000mm/min |
| Max. Working Speed | 15000mm/min |
| Rail Configuration | 20 square rail |
| Spindle Power |
Water-cooling 1.5kw ( opitional air-cooling spindle) |
| Spindle rotationg Speed | 6000-18000RPM |
| Drive Motors | Stepper System (opitional Servo) |
| Working Voltage | AC220V/50HZ |
| Operating System | NC Studio system ( opitional DSP handle) |
| Computer Interface | USB |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | JDPaint |
| Packing | Wooden case |
| N.W. | 1000KG |
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
WELCOME TO VISIT OUR FACTORY !!!
