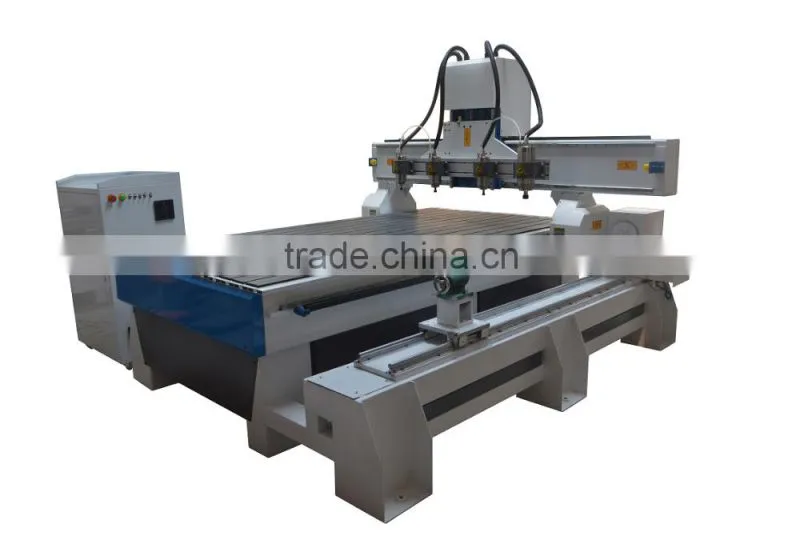

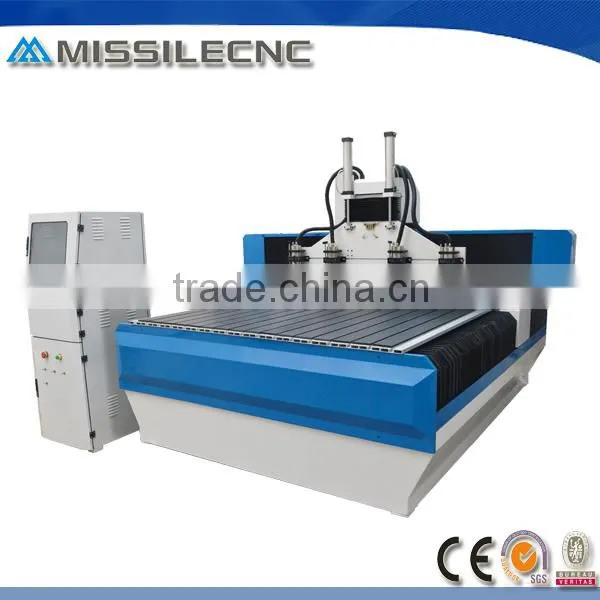

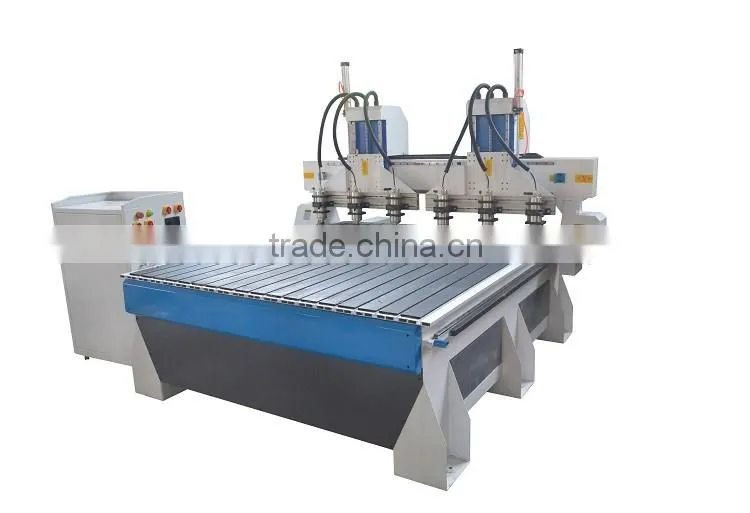

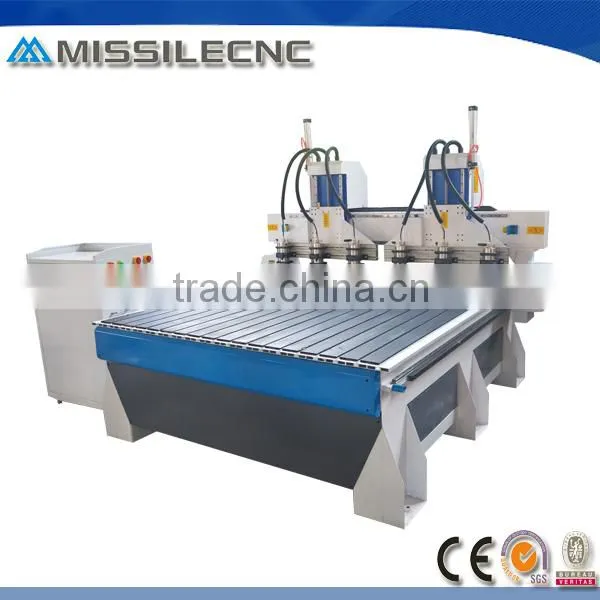

2016 precision double z-axis 6 heads 3d carving wood cnc router
Product description:
Our MFC01 cnc router is designed for 3d carving relief matertial. 3d carving cnc router is used to process Roman column, Archaize annatto furniture, 3D crafts, plastic models. This 6 heads wood cnc router integrate with twin Z axis, multi head, high speed motor driver to make sure high speed and high precision.
Parameters
X,Y,Z Working Area |
2500x1500x200mm (opitioinal other model) |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
40000mm/min |
Max. Working speed |
25000mm/min |
Soft working system |
Windows2000/XP/98 |
Rail Configuration |
TE 20 square rail |
Resolution |
0.01mm |
Spindle Power |
Water-cooling 1.5KW*6 (opitional Airr-cooling spindle ) |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
high speed stepper |
Working Voltage |
AC380V/50Hz,3PH (Opition: AC220V/50HZ) |
Operating System |
Original NC-studio system |
Computer Interface |
USB |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
JDPaint |
Packing |
Wooden case |
N.W. |
1300KG |
The accessory
As 3d relief carving machine, our wood cnc router adopts original sapre parts to make sure high precision.
water cooled spindle ball screw
Control card rack and square rail
Features
WTC03 3d carving wood cnc router is designed for 3D carving, with high configuraton.
1. linear square guide rails, high loading capacity, smooth operation, high precision, and long life.
2. X Y axis rack transmission and Z axis by ball screw, with high-precision and high-speed when cut.
3. Adopt water-cooling spindle, great performance, big torque, high efficiency.
5. Using quality spindle motor and driver, Y-axis dual motor drive, with faster speed and better
stability.
6. Compatible with any advanced CAD/CAM software, such as Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD/ Wentai, etc..
Optional Parts:
1. Japan imported servo motor (Panasonic, Yaskawa),
Taiwan imported servo motor, or servo motors made in China
2. The number of spindle motor is optional as per your special requirement.
3. The machine size can be customized
4. Vacuum tabletop, dust collector

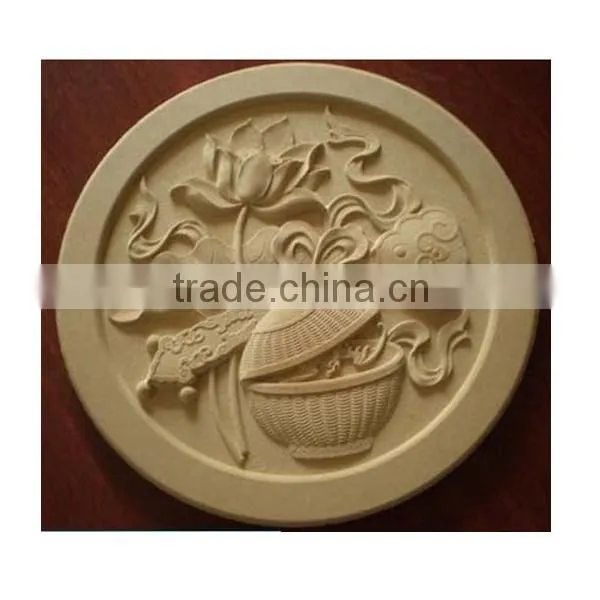

The samples & application
Furniture: can process cabint, wood door, soild wood, plate-type, windows, table,chairs, etc.
Decoration: screen, wave plate, huge-scale hanging, advertisment plates, markings makiing.
Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.

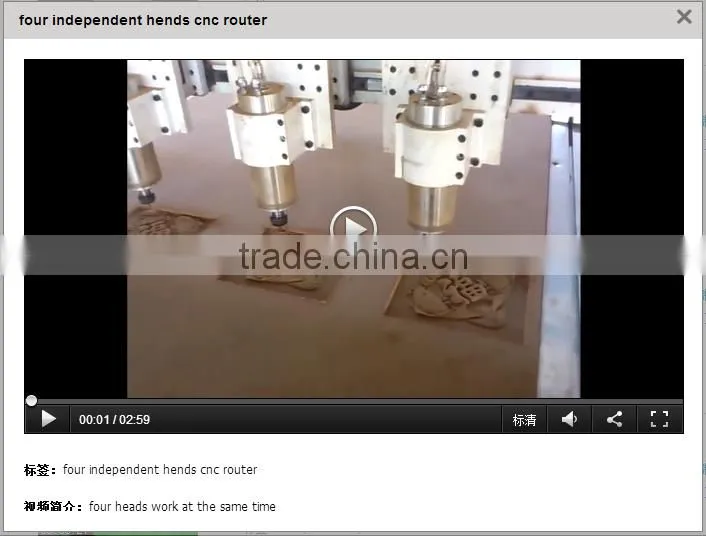

Working video
WTC woodworking cnc router is multi head working at same time, with same toolpath. This is working video for yr reference.
Our Company:
1.We can guarantee the machine made in our factory, all have our brand: If you need to check, welcome to our company and visit our factory.
2.We have specialists on the CNC Router Machine researched, including all kinds of machines: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
3. based on the strong sales network and stable quality, for the best selling products we all have wide stock to make satisfied with your needs, then save your time and money on the shipment.
4.we have the technical sales managers who can speak fluent English,answer you questions in 24 hours.
Workshop
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
1)What is the most complex design?
Do you plan to use the machine for cutting, carving, drilling, or all of the above?
2) how many heads?
X axis ( ____ )mm------W
Y axis ( ____ )mm ------L
Z axis ( ____ )mm ------H
3. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty.
