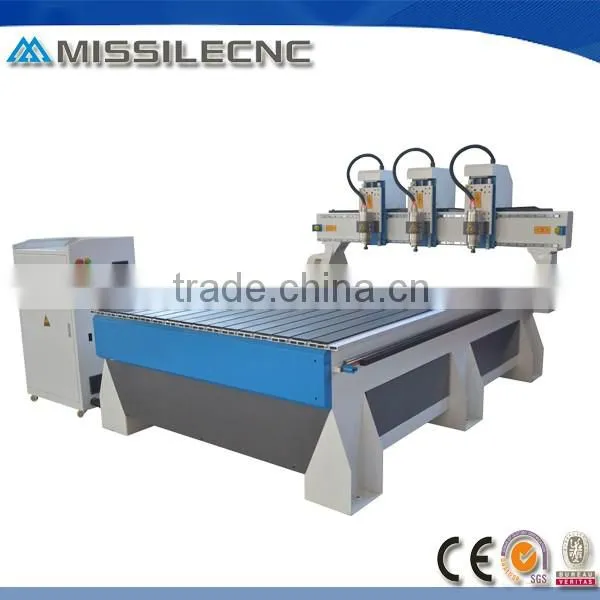

2016 high speed multi head 1325 wood carving cnc router
Product description:
Our WTC03 cnc router is designed for wooden. Wood carving cnc router is used to process cylinder and plain material etc. This 1325 cnc router integrate with high speed motor driver, original control system, rack and rotary axis.
Parameters
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05MM |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot table |
Frame |
Square pipe Welded Structure |
X, Y, Z axis transmission |
X Y axis Rack and Z axis Ball screw |
MAX traving speed |
40000mm/min |
Max. Working Speed |
20000mm/min |
Guide |
TE 20 square rail |
Spindle Power |
1.5kw water cooled spindle*3+3.0kw*1 |
Spindle rotationg Speed |
24000RPM |
Drive Motors |
High speed motor and driver |
Working Voltage |
AC220V/ 380V/ 50Hz,3PH |
Operating System |
Origianl Nc-studio |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
all kind of 3D and JD caving software |

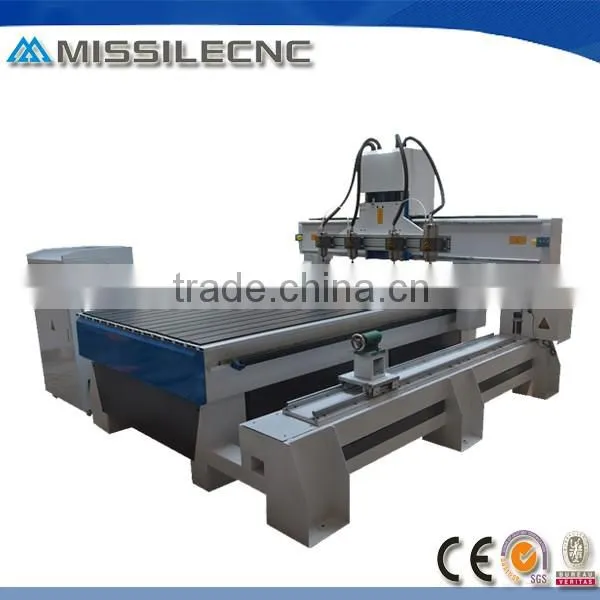

Standard Rotary axis |
300mm diameter, 2000mm length |
Features
WTC03 multi head 1325 cnc router is designed for 3D carving, with high configuraton.
1. linear square guide rails, high loading capacity, smooth operation, high precision, and long life.
2. X Y axis rack transmission and Z axis by ball screw, with high-precision and high-speed when cut.
3. Adopt water-cooling spindle, great performance, big torque, high efficiency.
5. Using quality spindle motor and driver, Y-axis dual motor drive, with faster speed and better
stability.
6. Compatible with any advanced CAD/CAM software, such as Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD/ Wentai, etc..
Optional Parts:
1. Japan imported servo motor (Panasonic, Yaskawa),
Taiwan imported servo motor, or servo motors made in China
2. The number of spindle motor is optional as per your special requirement.
3. The machine size can be customized
4. Vacuum tabletop, dust collector

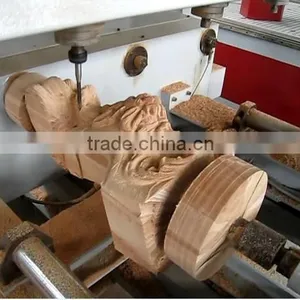

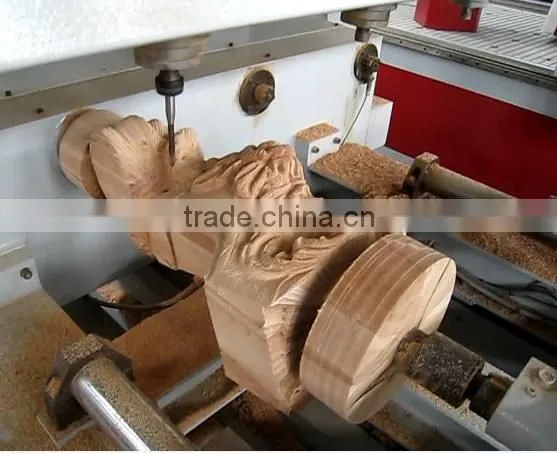

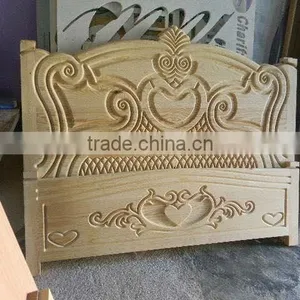

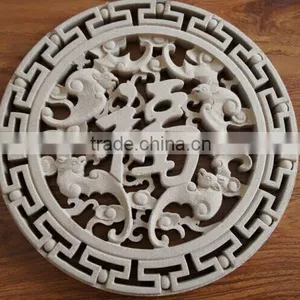

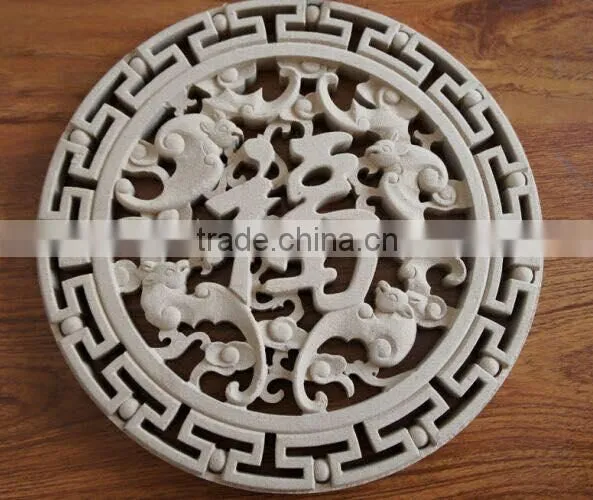

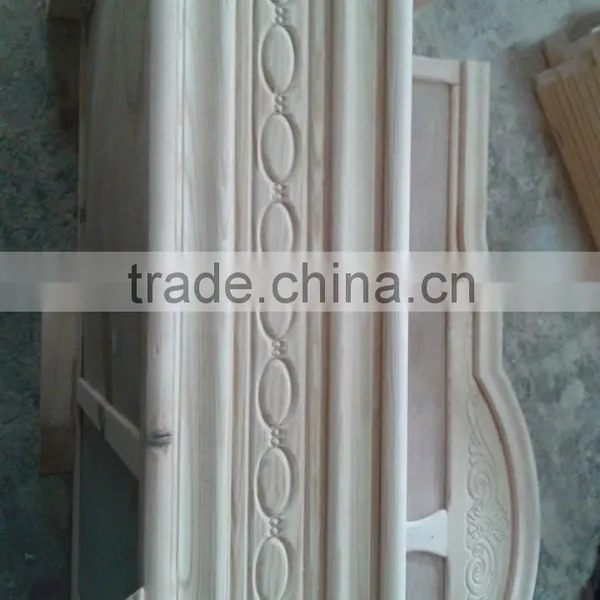

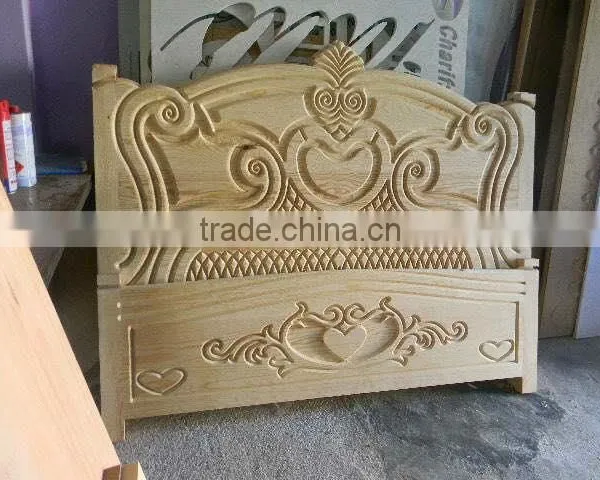

The samples & application
WTC wood carving cnc router is widely used 3d relief, including classical mahogany furniture,
white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture,
advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.
Working video
WTC 1325 cnc router is multi head working at same time, with same toolpath. This is working video for yr reference.
Our Company:
1.We can guarantee the machine made in our factory, all have our brand: If you need to check, welcome to our company and visit our factory.
2.We have specialists on the CNC Router Machine researched, including all kinds of machines: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
3. based on the strong sales network and stable quality, for the best selling products we all have wide stock to make satisfied with your needs, then save your time and money on the shipment.
4.we have the technical sales managers who can speak fluent English,answer you questions in 24 hours.
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
1)What is the most complex design?
Do you plan to use the machine for cutting, carving, drilling, or all of the above?
2) how many heads?
X axis ( ____ )mm------W
Y axis ( ____ )mm ------L
Z axis ( ____ )mm ------H
3. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty.
