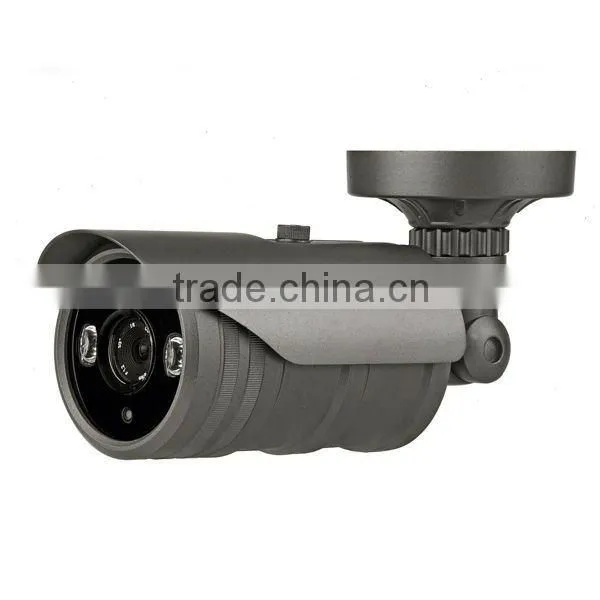

True Day and Night Camera With Infrared for NightVision

Name: True Day and Night Camera With Infrared for NightVision
Brand: COOP Security
SKU: 103886063

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP Security

Model Number:

HP-700IR3-F

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP Security

Model Number HP-700IR3-F

Type Analog Camera

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

700tvl CCTV Camera with Infrared
1/3" Sony Exview HAD II Double Scan CCD
SONY EFFIO-P DSP
ATR-EX,2D&3DNR, 40m IR
OEM & ODM

Product Description

Day and Night Camera With Infrared for NightVision

FEATURES

1/3" Sony Exview HAD II Double Scan CCD

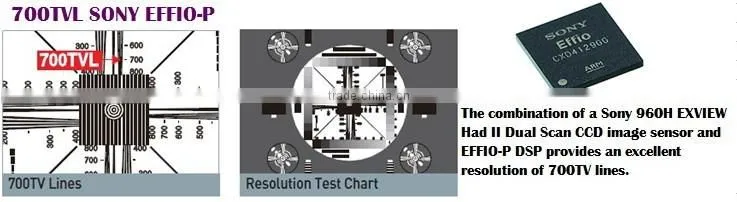

SONY EFFIO-P DSP, 700TVL Color
2D & 3D Noise Reduction, ATR-EX (Adaptive Tone Reproduction),

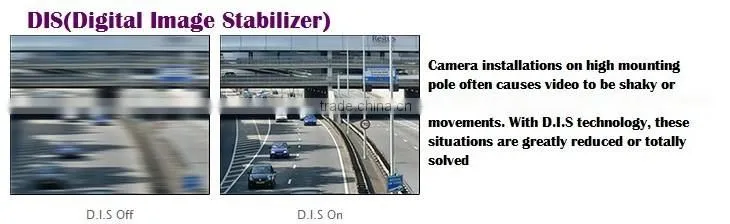

Slow shutter (Sens-up), Real WDR(128dB), DIS(Digital Image Stabilizer)
Support HLC(High Light Compensation), E-zoom(x256)
3pcs 3rd Generation IR leds
50M IR distance
(3rd Generation IR LED: high brightness, 50,000 hours service life, 5%/year luminous decay)
9-22mm manual iris lens

Model	HP-700IR3-F
Imaging Sensor	1 / 3" SONY DOUBLE SCAN CCD +EFFIO-P 4129 DSP
Pixel	PAL:976(H) x 582(V);NTSC:976(H) x 494(V)
Signal System	PAL/ NTSC
Syn. System	Internal Synchronization
Shutter speed	1/53~1/100000s
S/N Ratio	More than 50dB(AGC OFF)
Video Output	1.0Vp-p, 75 ohms BNC
Horizontal resolution	700TVL
Minimum Illumination	Color 0.1Lux(F1.2,50IRE,AGC ON),B/W:0.001Lux(F1.2,50IRE,AGC ON)

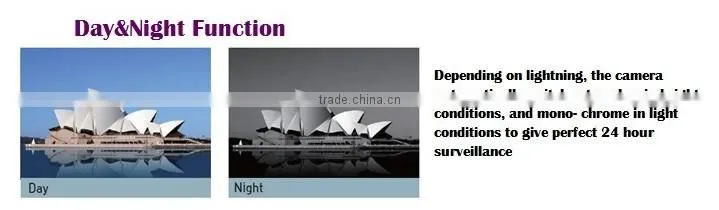

D/N Switch	Auto/Color/B/W/External Control
Brightness Switch	Color to B/W & B/W to Color for option
D/N Switching Time	0-255
Title setting	16 characters
Title Position	Any position on the Screen
Image Brightness	0~99 adjustable
AGC	AGC+Slow shutter
OSD	English/Chinese
Led Light Wave	650nm/850nm
Strong Light Reversion	4 zones
Backlight Compensation	0~3 adjustable
PRIVACY	1~8 Zones
WDR	FULL FUNCTION/NORMAL/LIGHT
Motion Detection	On / Off (multi-sensitivity settings, alarm time optional)
Mirror	Vertical/Horizontal/Vertical/Horizontal/off
AWB	Manual/Auto/Auto tracking/Lock
Sharpness	0~15adjustable
GAMMA	0.3~1.0 adjustable
DPC	MDPC/ADPC
3D DNR	High/Medium to high/Medium/Low to Medium/Low/Off
Sense-Up	Off/x2/x4/x8/x16/x32/x64/x128/x256
RS-485 Remote control	Support
Communication Add.	1-254 optional
BPS baud rate	2400/9600/14400/19200/38400
Control Protocol	Pelco-D
Power Supply	DC12V/AC24V(optional)
Operation Temperature	-10C~+60C
Operation Humidity	20~80%
