HD-SDI Infrared Dome Camera 1/2.5" Aptina CMOS 4-9mm Lens 36 IR LED

Name: HD-SDI Infrared Dome Camera 1/2.5" Aptina CMOS 4-9mm Lens 36 IR LED
Brand: COOP Security
SKU: 103884979

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP Security

Model Number:

HD-20VDVF-SDI

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP Security

Model Number HD-20VDVF-SDI

Type Digital Camera

Style Dome Camera

Sensor Other, CMOS, 1/2.5 inch

Technology Infrared

Special Features Vandal-proof

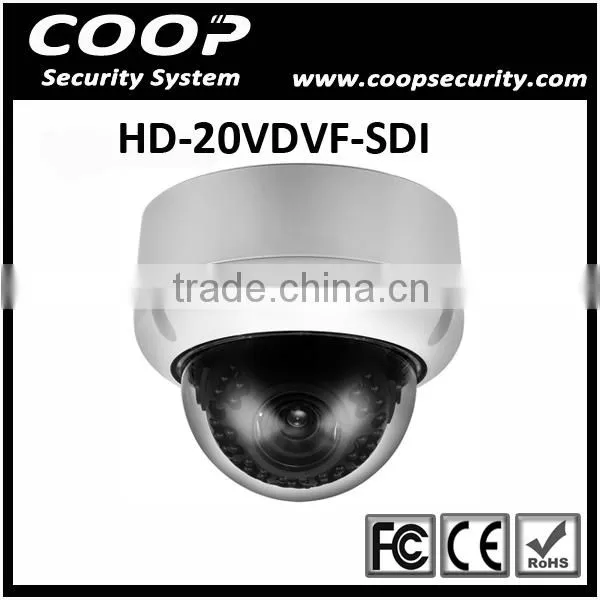

HD-SDI Infrared Dome Camera 1/2.5" Aptina CMOS 4-9mm Lens 36 IR LED (HD-20VDVF-SDI)

Product Description

Main Functions

1080P 2.0 Megapixel HD-SDI, CMOS Mega image sensor

Support D-WDR,2D-DNR, IR-CUT FILTER

OSD control, motion detection, digital zoom

IR LED: φ5 X 36PCS black color IR LED, IR distance 35M

4-9mm 2.0 megapixel lens

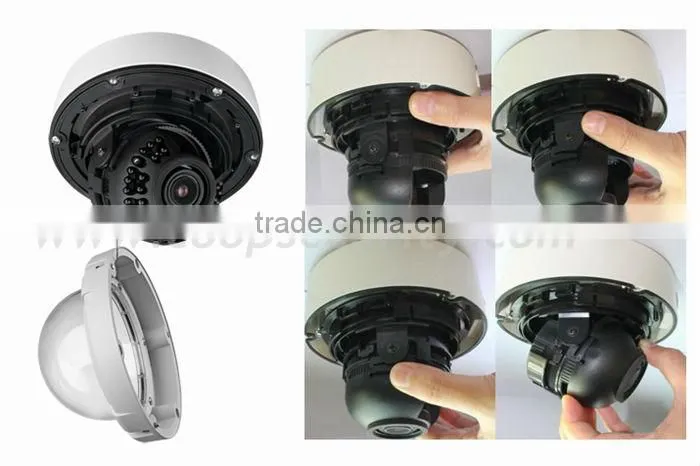

4 structure metal vandal-proof IR dome camera

Product Features

1080P high perfermance 1/2.5" Progressive Aptina CMOS image sensor.
Standard HD-SDI high resolution interface (meet SMPIE 292M standard).
Standard HD-SDI high resolution video output,progressive scan.
Original video without compress, real time output, support IR complement.
IR-CUT ON/OFF switch, OSD control, D-WDR, AGC, 2D-DNR, Move detection.
Digital zoom, DOT Compensate, ATR, Brightness and sharpness adjustable.
Day&Night mode), Low power consumption, Constant current protecion IR LEDs.
IR-CUT mega pixels lens, Precise focus, DC12V Power supply.
Multi-language optional(English, simplified Chinese,Spanish,Portuguese, German, French, Russian, traditional Chinese,Thai,Korean,Japanese,Frasi,Polish).

Data Sheet

Power Supply	Power adapter: 12V(min 0.5A)
Image Resolution	1080P(1920×1080)30Hz/25Hz
Sensor Specifications	1/2.5 inch
Pixel Size	2.2um x 2.2um
Color System	Ycbcr 16bit
Video Output	HD-SDI (SMPTE274M standard)
Video Output Interface	BNC
Shooting Speed	30fps/25fps
Min. illumination	0.1LUX (single-frame and color mode)
OSD	Support multiple languages (up to 30 andflexible customize)
Scene Mode	General/Highlight
Infrared Switch	Auto/Color/Gray
HDR	On/Off
Analog Gain	On/Off
2D DNR	On/Off
Automatic ExposureResponse Speed	8 frames
AWB	Auto/Mode 1/Mode 2/Mode 3/Off
CCM	On/Off
DPC	On/Off
Brightness/Contrast/ Saturation/Hue	0~255 adjustable
Self Adaption	On/Off
Auto Iris	Selectable
Transmission Distance (Non-Relay)	Min 300m (the quality of coaxial cable is optional)
Power Consumption	Max 2W (with 12V power supply, IR off)
IP Grade	IP65 (according to different products)
Working Environment	Temperature: - 10°C ~ + 50°C Humidity: ≤ 90%
