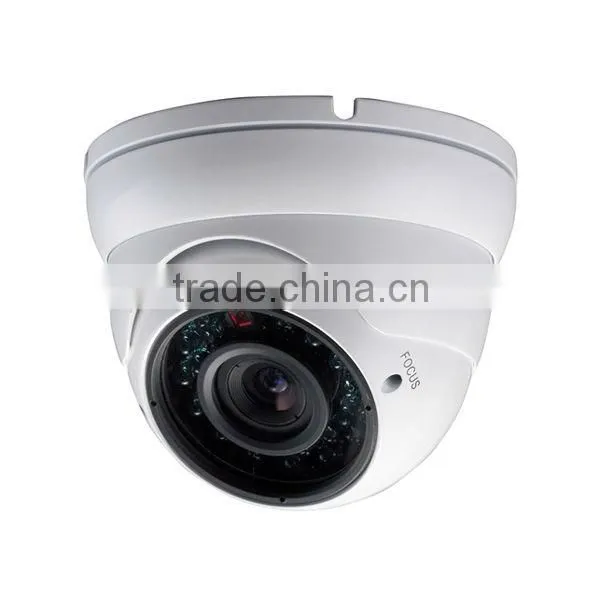

1 3 Sony CCD Camera With Varifocal Lens

Name: 1 3 Sony CCD Camera With Varifocal Lens
Brand: COOP
SKU: 103880829

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

HP-650DHVA

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP

Model Number HP-650DHVA

Type Other, Analog Camera, Analog Camera

Style Other, Dome Camera, Dome Camera

Sensor Other, CCD, 1/3" Sony Exview HAD II CCD

Special Features Vandal-proof

Specifications

1 3 sony ccd camera
650TVL Color,700TVL B/W
30Pcs IR leds, IR Distance:30M
2DDNR,HLC,CRR, ATR
4-9mm/2.8-12mm Lens

HP-650DHVA Explosion Proof Dome Infrared Surveillance Camera

Feature:

1/3" Sony Exview HAD II CCD (ICX672AKA/ ICX673AKA)

SONY EFFIO-E DSP

650TVL Color,700TVL B/W

2DDNR, Support HLC, CRR, ATR

36Pcs φ 5 IR leds

IR Distance: 30M

Built-in 4-9mm Lens ( 9-22mm/2.8-12mm optional)

Technical Data:

Function
Imaging Sensor	1 / 3" SONY EXVIEW HAD CCD
Pixel	PAL:752(H)×582(V); NTSC:768(H)×494(V)
Signal System	PAL/ NTSC
Syn. System	Internal Synchronization
Shutter speed	PAL:1/50~1/100000s; NTSC:1/60~1/100000s
S/N Ratio	More than 50dB(AGC OFF)
Video Output	1.0Vp-p, 75 ohms
Horizontal resolution	Color 650TVL, B/W 700TVL
Minimum Illumination	Color0.1Lux(F1.2,50IRE,AGCON) B/W:0.001Lux(F1.2,50IRE,AGC ON)
D/N Switch	Auto/Color/B/W/External Control
Brightness Switch	Color to B/W & B/W to Color for option
D/N Switching Time	0s~10s
Title setting	16 characters
Title Position	Any position on the Screen
Image Brightness	0~99 adjustable
AGC	Off/12db/24db/36db
OSD	English/Chinese OSD
Peripheral Brightness Compensation	0~50 adjustable
Strong Light Reversion	0~60 adjustable
Backlight Compensation	0~3 adjustable
PRIVACY	1~8 Zones
Privacy Zone Color	Color 0~Color 7 optional
ATR	Off/On/Auto
Noise Reduction	2D-DNR
Motion Detection	On / Off (multi-sensitivity settings, alarm time optional)
AWB	ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Special	Rotation/ up-side down /Mirror/Off
Sharpness	On/off(Level Adjustable)
GAMMA	0.3~1.0 adjustable
CCD white Point Auto-detection	Support
Auto-completion point	White and black points automatically added
RS-485 Remote control Optional	Support
Communication Add.	1-254 optional
BPS baud rate	2400/9600/14400/19200/38400
Control Protocol Optional	Pelco-D
Video Output	BNC method
Power Supply	DC12V/AC24V(optional)
Power consumption	2.0 W
Operation Temperature	-10⁰C~+50⁰C

DHSF-Series other Dome Cameras

Model	HP-882DHVA	HP-888DHVA	HP-600DHVA	HP-630DHVA	HP-650DHVA	HP-700DHVA
Image Sensor	1/3"SONY Super HAD II CCD	1/3"SONY Super HAD II CCD	1/3"SONY Super HAD II CCD	1/3"SONY Super HAD II CCD	1/3" Sony Exview HAD II CCD	1/3" Sony Exview HAD II Double Scan CCD
Horizontal Resolution	420TVL	540TVL	600TVL Color 650TVL B/W	630TVL Color 700TVL B/W	650TVL Color 700TVL B/W	700TVL Color
