Specifications
led ceiling panel light1.led edge-lit
2.brightness or color temperature adjustable
3.three years warranty
Detailed Product Description

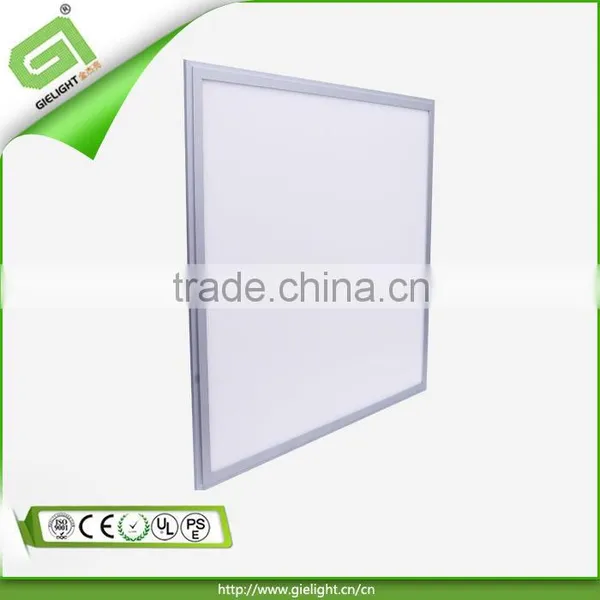

led ceiling panel light
1.Ultra thin:10mm
2. 30x30,30x90,30x120,60x60,60x120cm...
3. UL,CE.Emergency available.
4. 3 years warranty.
5. 75LM/W
Type No. |
Watt |
LED Type |
LED Qty |
Lumen
|
Actual Size(L*W*H) |
GL-PL-S300*300 |
20W |
SMD3528 |
216PCS |
1600±10% |
295*295*10mm |
GL-PL-S300*600 |
28W |
SMD3528 |
270PCS |
2100±10% |
295*595*10m |
GL-PL-S300*900 |
34W |
SMD3528 |
324PCS |
2500±10% |
295*895*10mm |
GL-PL-S600*600 |
43W |
SMD3528 |
432PCS |
3500±10% |
595*595*10mm |
GL-PL-S300*1200 |
50W |
SMD3528 |
480PCS |
3800±10% |
295*1195*10mm |
GL-PL-S600*1200 |
65W |
SMD3528 |
640PCS |
4500±10% |
595*1195*10mm |
Parameters:
LED Panel input Voltage: 24-30Vdc
Color Temperature: 2700-3500k, 4000-4500k, 5700-6500k
Operating Temperature: -25°C-50°C
Appearance: Frosted
Main Material: Pure Aluminum + Acrylic cover.
Certificates:
CE(LVD),CE(EMC); ROHS, SAA, UL.
Warranty: 3 years
Within the warranty period, Gielight bears the shipping cost back and forth for replacing the defective goods.
Applications:
1.Houses, offices, shop, showroom, supermarket, hospital, hotel, meeting room, corridor......
Product Details:
UL Driver Edge-lit
Our Factory:
Professional Equipments:
