197mm 12W LED Downlight With Edge Lit
- T/T Money Gram Credit Card
You May Like
Product Details
| Lamp Body Material | Aluminum | Model Number | GL-PL-R197 | |
| Place of Origin | Guangdong, China | Brand Name | Gielight |
Product Description
Specifications
LED Downlight1.Ultra thin, side view
2.No any dark area
3.100-240VAC, UL Driver
4.CE RoHS
LED Downlight
Specification
Type No. | Watt | LED Type | LED Qty | Lumen | Actual Size(R*H) |
GL-PL-R197A | 12W | High-brightness SMD3528 | 104PCS | 850±10% | φ197*16mm |
GL-PL-R197B | 10W | SMD3528 | 104PCS | 700±10% | φ197*16mm |
GL-PL-R175A | 10W | High-brightness SMD3528 | 88PCS | 750±10% | φ175*13.7mm |
GL-PL-R175B | 7W | SMD3528 | 88PCS | 600±10% | φ175*13.7mm |
Electrical Parameters:
LED Panel Output Voltage: 26-30VAC
External Driver Input Voltage: 100-240Vac
Frequency: 50/60Hz
Optical Parameters:
Light Efficiency: 75-85LM/W
Color Temperature: Pure white, Warm white, Amber white
Other Parameters:
Product Patents: Yes
Operating Temperature: -20°C-50°C
Storage Temperature: 0-35°C
Appearance: Frosted
Main Material: Aluminum Alloy+ Optical PMMA
IP Rating: IP40
Life Span: 50,000hours
Certificates: CE RoHS UL Driver
Warranty: 3 years
a. Within the warranty period, Gielight provides free repairing service. If the certain item can not be repaired, Gielight will offer the new one for replacement at no extra cost.
b. Within the warranty period, Gielight bears the shipping cost back and forth for replacing the defective goods, on condition that the defection rate equals to or exceeds 2% of the ordered quantity for each shipment.

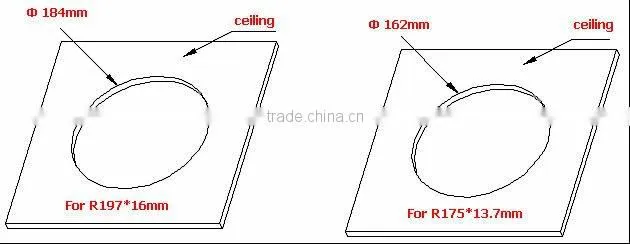

Size Instruction:
The size of hole on the ceiling:

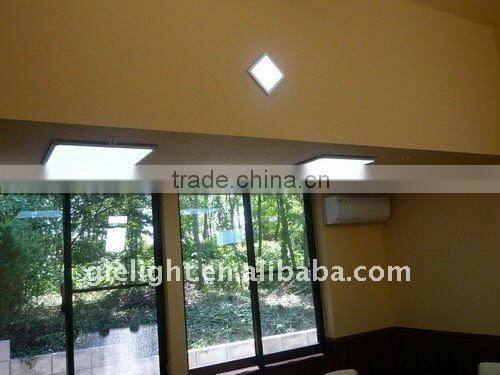

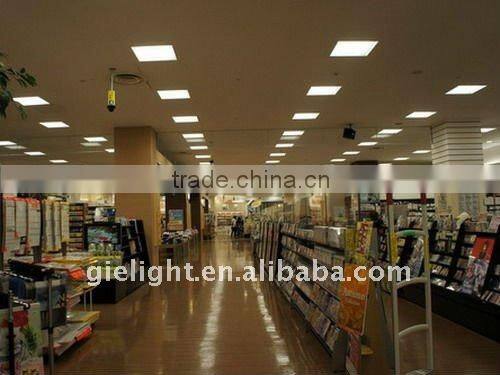

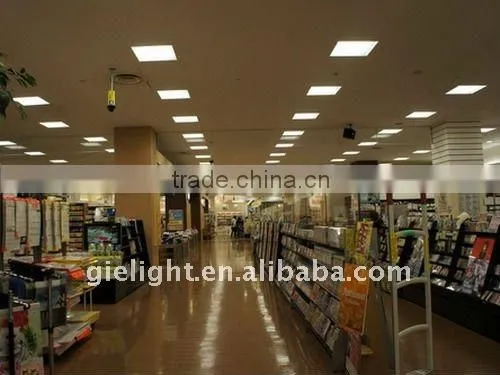

Application
Pls don't hesitate to send me inquiry.
Thank you in advance!
