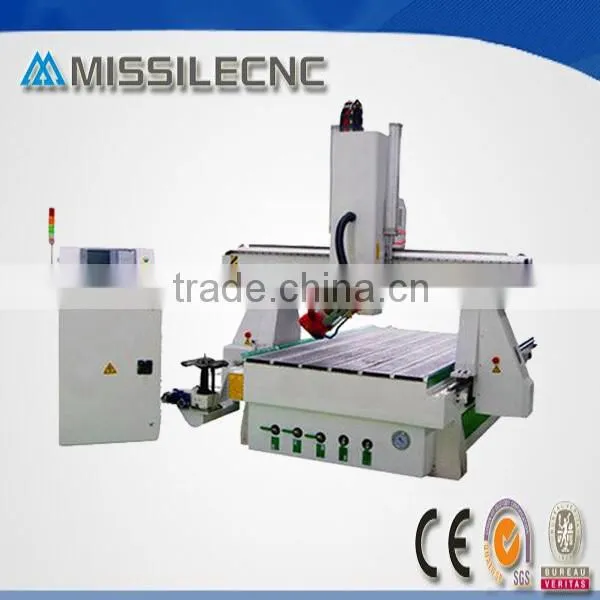

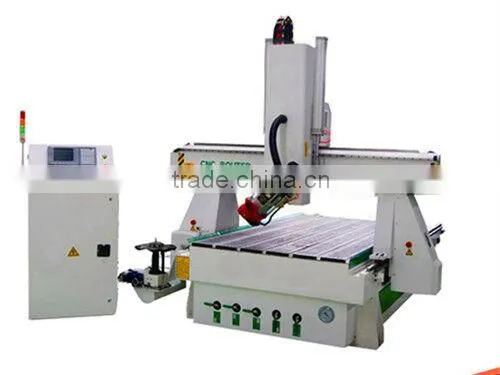

good price 3d wood carving cnc woodworking machinery router
FEATURES

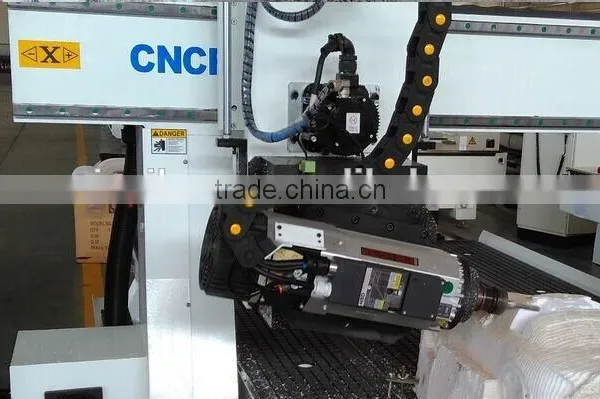

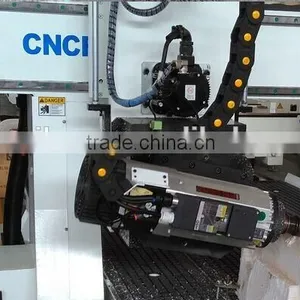

1.The spindle can rotate 180 degree, can make multi-kinds of surface
2.Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing

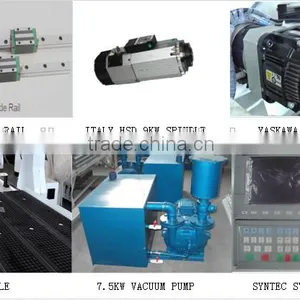

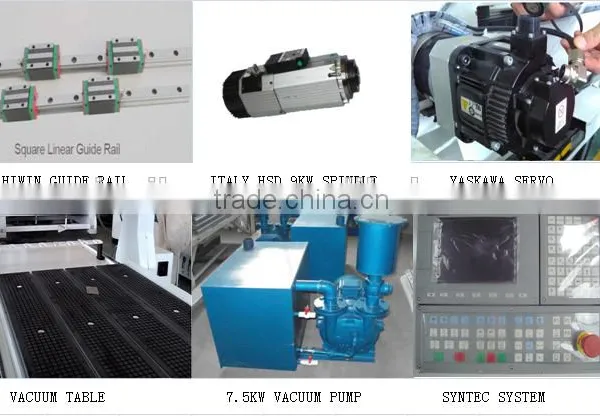

3.Italy 9KW 4 axis HSD spindle

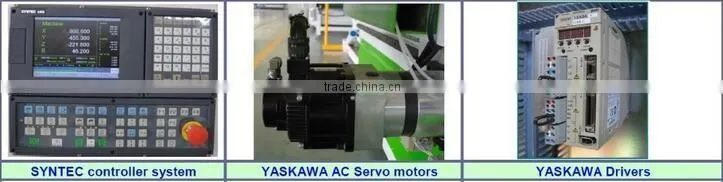

4.Taiwan SYNTEC 4 axis control system
5.China price 4 axis wood cnc router is Japan YASKAWA servo driver and motor
| X,Y,Z Working Area | 1300X2500X450mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z axis transmission | Ball Screw |
| Max. Traveling speed | 25000mm/min |
| Max. Working speed | 15000mm/min |
| Rail Configuration | 25 square rail |
| Spindle Power | Italy 9KW 4 axis HSD spindle |
| Spindle rotationg Speed | 0-18000RPM |
| Drive Motors | Japan YASKAWA Servo |
| Working Voltage | AC380V/50Hz,3PH |
| Operating System | Taiwan SYNTEC 4 axis control system |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | TYPE3 |
| Packing | Wooden case |
| N.W. | 2200KG |

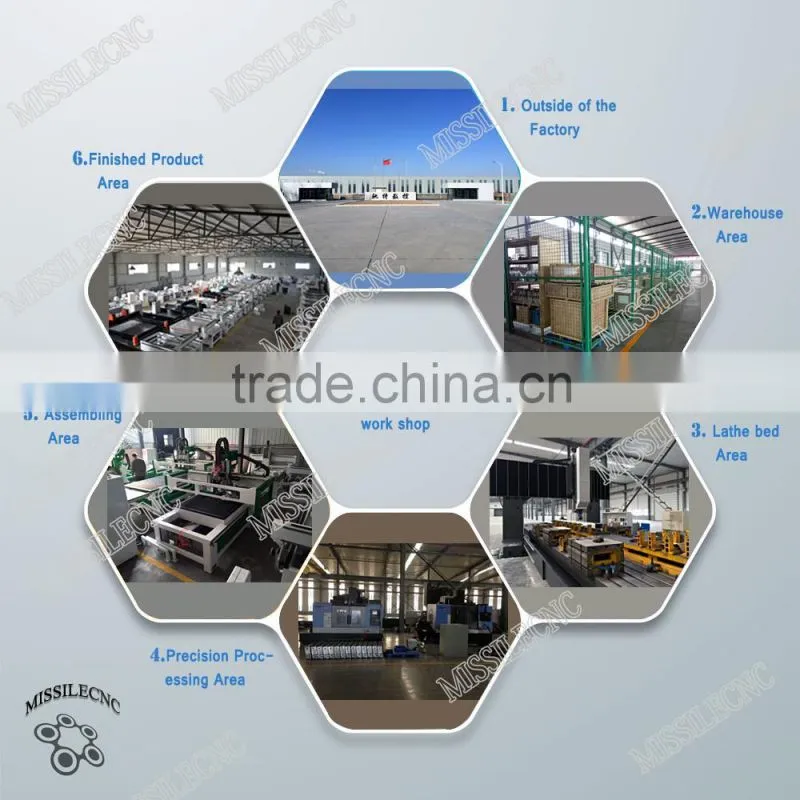

WORKSHOP
Quality control
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
any requirement of cnc router ,please call me .
