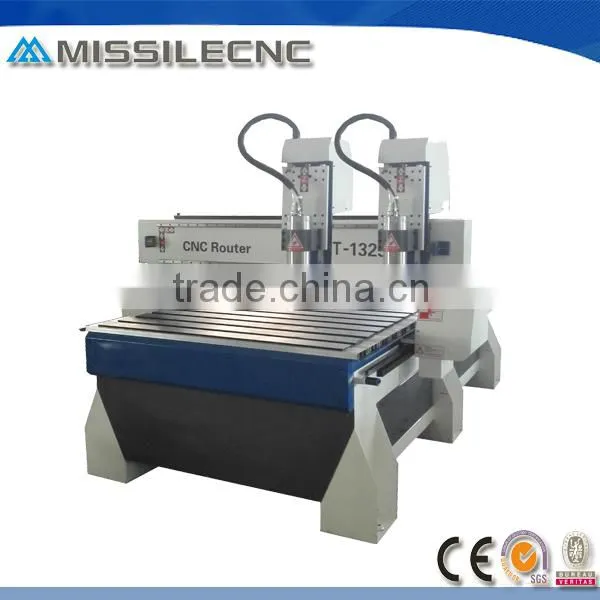

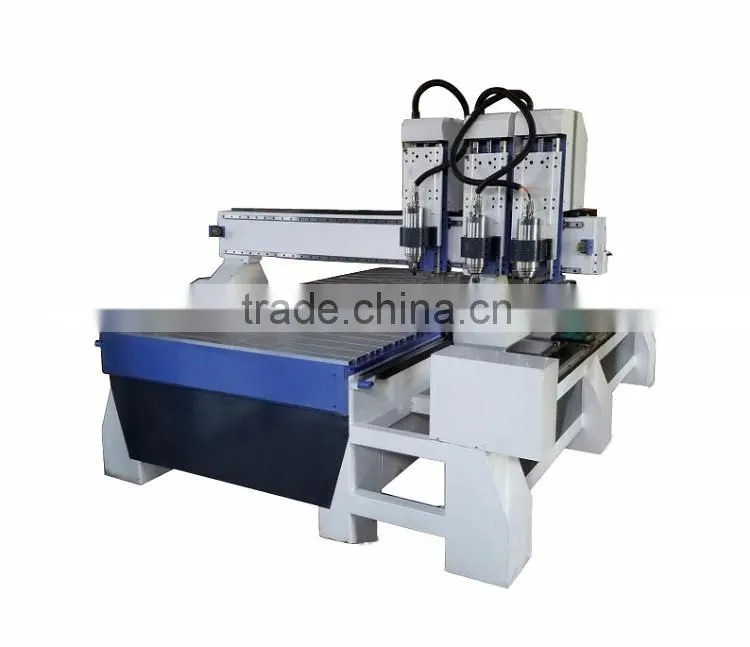

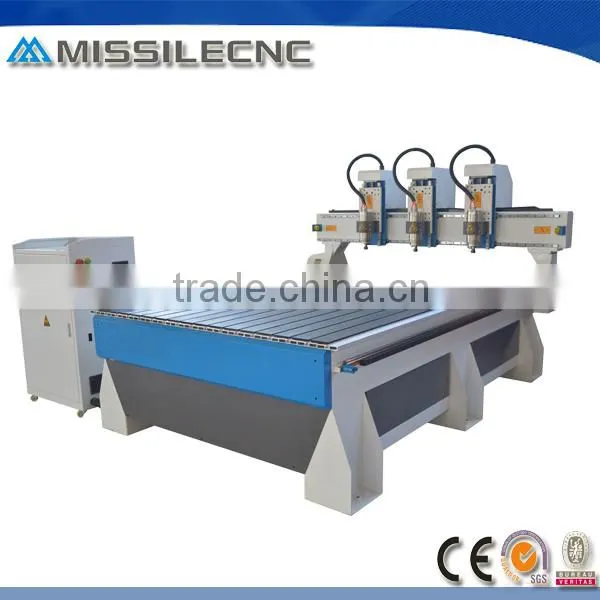

2016 New type automatic 3d sculpture carving wood cnc router
Automatic 3d sculpture carving wood cnc router is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
The automatic 3d sculpture carving wood cnc router is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
Technical parameters of automatic 3d sculpture carving wood cnc router :
Model |
1325 |
X,Y,Z Working area |
1300*2500*200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear, |
Z axis transmission |
Ball Screw |
Max Traving speed |
25000mm/min |
Max Working speed |
15000mm/min |
Rail Configuration |
20 square rail |
Spindle Power |
Water-cooling 1.5KW*4 |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Stepper System |
Working Voltage |
AC220V/50HZ |
Operating System |
NC Studio system |
Computer Interface |
PCI |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
Packing |
Wooden case |
N.W. |
1450KG |
Features of automatic 3d sculpture carving wood cnc router :

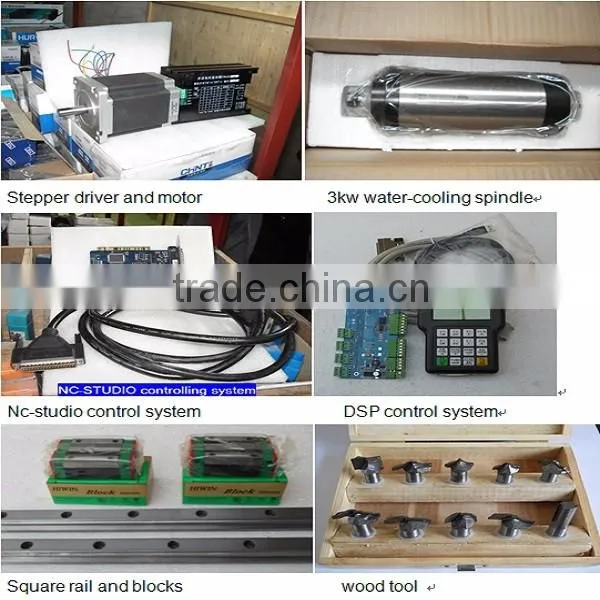

1. 3-axis import linear square rail , xyz axis adopt import ball screw , move smoothly , high accuracy carving .
2. High-speed low noise import spindle , long time .
3. 3-axis adopt high power high speed low noise , low error rate sevo diver and motors , efficiently avoid misplace situation for motor heating after x –axis work high speed long time widen machine head part assembly additional bob-weight and ancillary shorting , make whole machine move more smoothly , more flexible up and down .
4. Original nc-studio control system with computer connection directly , supprt break , continue carving after cut off electric , and auto-alarm in the situtation of wrong engraving , avoid waste products,strong anri-interference ability,and ajust products accuracy by software , compatibility type3/artcam/castmate/proe/ug/wen tai ect kinds of cad/cam software .
5. Lathe bed is welded by thick square tubes , through giant planer processing , strong and non-defrmation , long life time .
Main applications of automatic 3d sculpture carving wood cnc router :
It is widely used for processing art craft , classical furniture , redwood etc 3d relief engraving .
Furniture: can process cabint , wood door , soild wood , plate-type , windows , table,chairs, etc.
Decoration: screen , wave plate , huge-scale hanging , advertisment plates , markings makiing .
Arts: can engrave on man-made stone , wood , bamboo , marble , acrylic , double-colored board beautiful drawings and letters .
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
