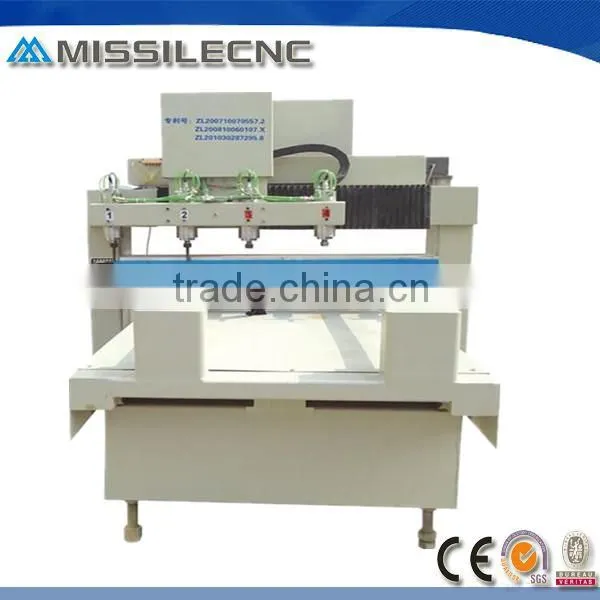

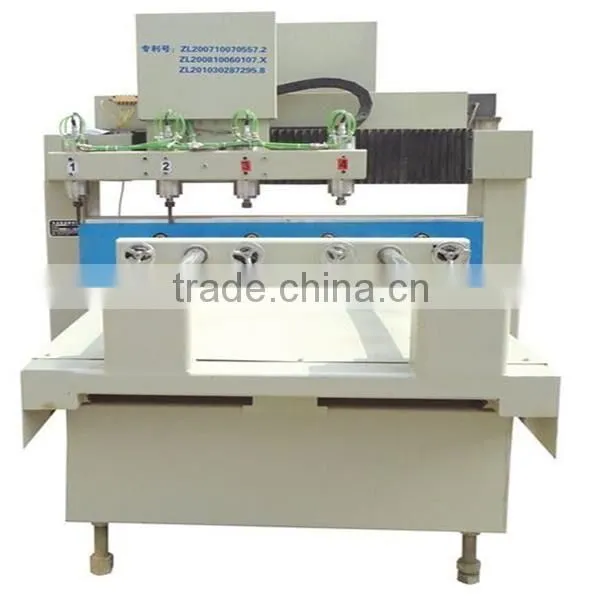

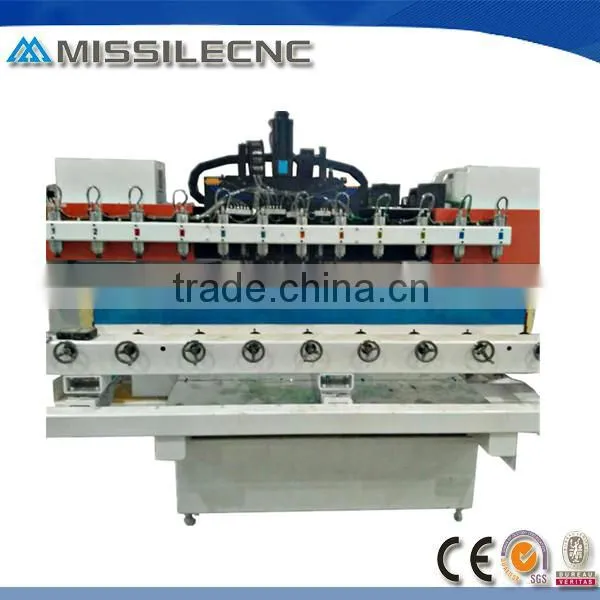

Multi heads cnc router 4 axis cnc wood engraving machine
Multi heads cnc router 4 axis cnc wood engraving machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Multi heads cnc router 4 axis cnc wood engraving machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
Technical parameters of 4 axis cnc wood engraving machine :
No |
Description |
Parameter |
1 |
Material size |
1200x2500mm |
2 |
Table size |
2000x2450x2200mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.05mm |
5 |
Table Surface |
Aluminum T-slot Table(Option: Vacuum table) |
6 |
Frame |
Square pipe Welded Structure |
7 |
X, Y axis transmission |
Ball Screw |
8 |
Z axis transmission |
Ball Screw |
9 |
Max. traveling speed |
40000mm/min |
10 |
Max. working speed |
25000mm/min |
11 |
Rail Configuration |
25 square rail |
12 |
Spindle Power |
Water-cooling 2.2KW*8 (OPITIONAL AIR-COOLING SPINDLE) |
13 |
Spindle rotationg Speed |
0-24000RPM |
14 |
Drive Motors |
Servo System |
15 |
Working Voltage |
AC220V/50Hz |
16 |
Operating System |
DSP system |
17 |
Command Language |
G code, u00, mmg, PLT, HPG |
18 |
Software Compatibility |
Powermill |
19 |
Packing and Size |
Wooden case |
20 |
N.W. |
2200KG |
Features of 4 axis cnc wood engraving machine :

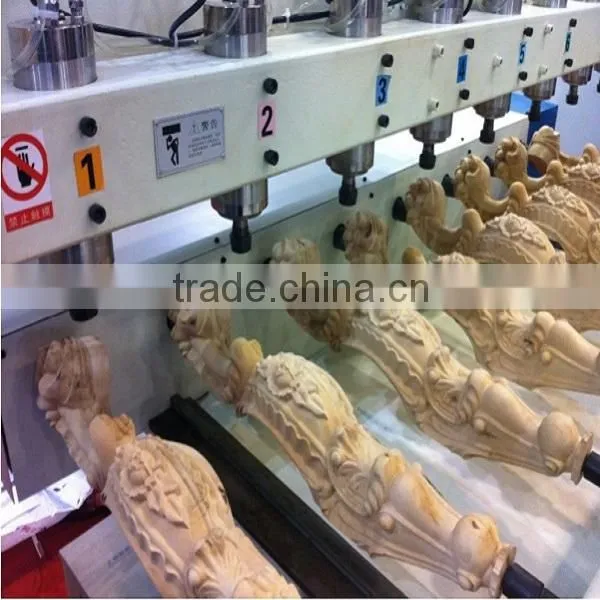

1. Processing 3D or complex crafts; can be rotated 360 degrees to engraving statues, sculptures, small crafts, european furniture .
2. Adopting the four axis control system, servo drive, handle controled, convenient operation, easy to learn.
3. Using the table driveing, stable operation, higher machining precision.
4. The structure is thick square tube welded bed, heavy capacity, pipe thickness up to 10 mm.
5. High speed spindle motor and adopts water cooling , low energy consumption, this machine consumes 2-3 kw per hour.
Main applications of 4 axis cnc wood engraving machine :
4 axis cnc wood engraving machine is widely used for processing art craft , classical furniture , redwood etc 3d relief engraving .
Furniture: can process cabint , wood door , soild wood , plate-type , windows , table,chairs, etc.
Decoration: screen , wave plate , huge-scale hanging , advertisment plates , markings makiing .
Arts: can engrave on man-made stone , wood , bamboo , marble , acrylic , double-colored board beautiful drawings and letters .
4 axis cnc wood engraving machine Packing: strong wooden package
Shipping: 7-20 working days after confirming the order
MISSILECNC is a professional CNC machinery manufacturer. We have our own two brands: CHEETECH (classic series) and MISSILECNC (advanced series). MISSILECNC ecpanded its presence with over 5,000 CNC routers and systems, involving more than 200 kinds of series: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
Questions and answer for 4 axis cnc wood engraving machine :
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions, we will solve it for free.
