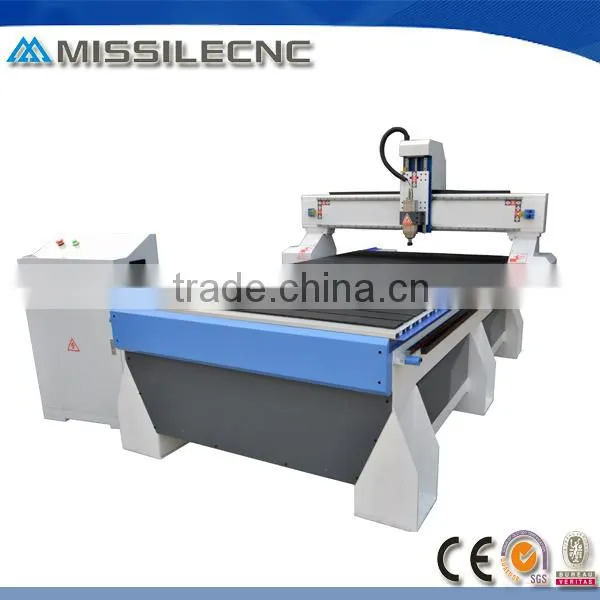

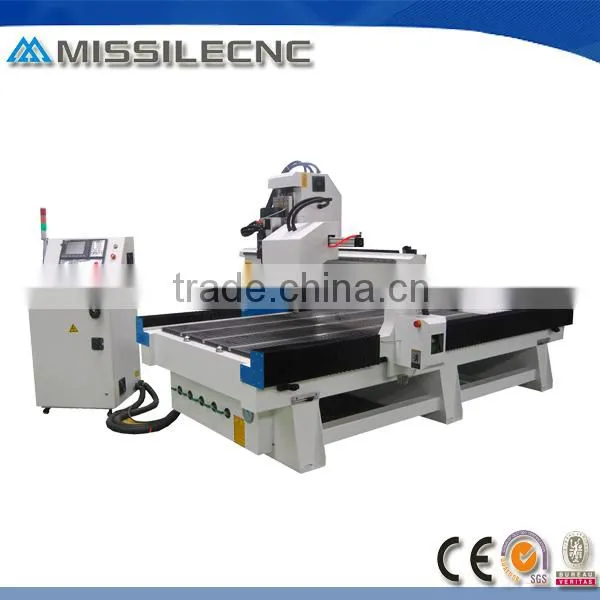

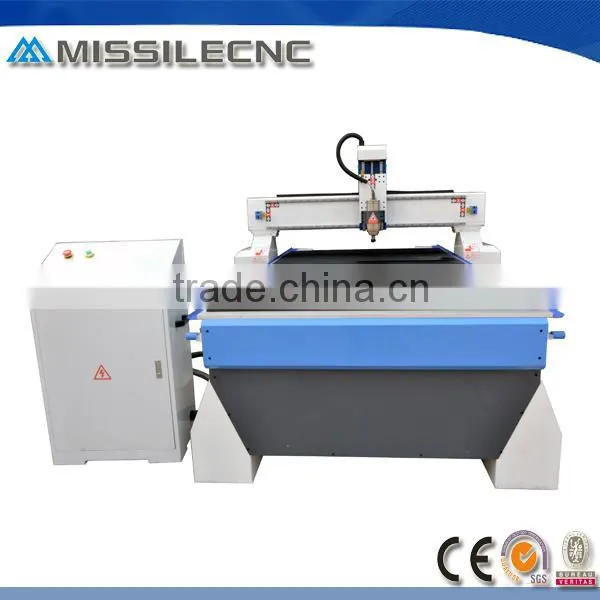

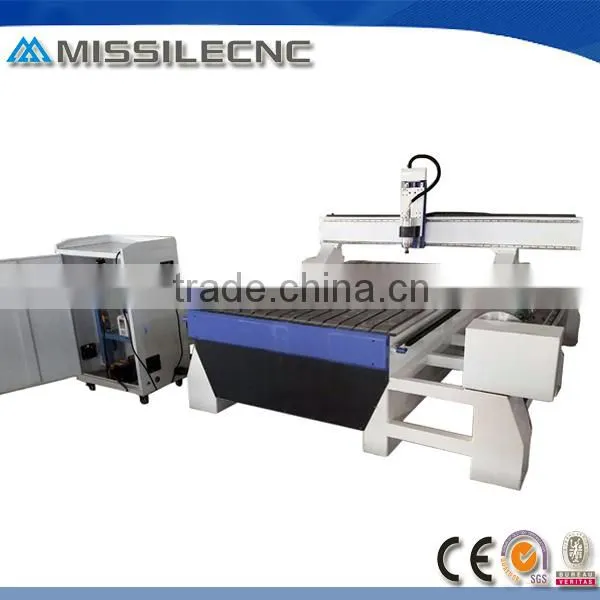

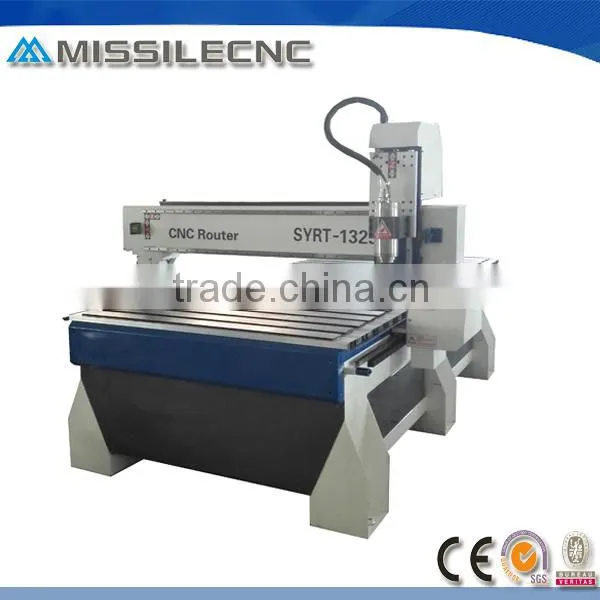

High speed plastic 4 aix 3d cnc engraving machine
High speed plastic 4 aix 3d cnc engraving machine is designed for 3d carving cylinder matertial. 3d engraving machine is used to process Roman column, Archaize annatto furniture, 3D crafts, plastic model and All kinds of 360 ° of cylindrical products.
3d engraving machine specification:
Product name |
High speed plastic 4 aix 3d cnc engraving machine |
X,Y,Z Working Area |
1300X2500X450mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
25000mm/min |
Max. Working speed |
15000mm/min |
Rail Configuration |
25 square rail |
Spindle Power |
Italy 9KW 4 axis HSD spindle |
Spindle rotationg Speed |
0-18000RPM |
Drive Motors |
Japan YASKAWA Servo |
Working Voltage |
AC380V/50Hz,3PH |
Operating System |
Taiwan SYNTEC 4 axis control system |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
TYPE3 |
Packing |
Wooden case |
N.W. |
2200KG |
3d engraving machine detail:
3d engraving machine feature:
1.High speed plastic 4 aix 3d cnc engraving machine spindle can rotate 180 degree, can make multi-kinds of surface
2.Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing
3.Italy 9KW 4 axis HSD spindle
4.Taiwan SYNTEC 4 axis control system
5.China price 3d engraving machine is Japan YASKAWA servo driver and motor
3d engraving machine application:
1. High speed plastic 4 aix 3d cnc engraving machine is fit for wood classical furnitures, such as cutting and engraving on Rosewood for furniture,indoor decoration. And with vacuum holding and dust collector, the 4 axis cnc router machine is qualified for mass-producing of furniture.
2. High speed plastic 4 aix 3d cnc engraving machine is also mainly used in Roman column, Archaize annatto furniture, 3D crafts, plastic models and All kinds of 360 ° of cylindrical products. The 3d engraving machine can also process complex deep anaglyph tablet type.
Other main products
1.we are professional manufacturer of 3d engraving machine
2.we have professional technical team
3.we have strictly inspection instrument ,ensuring each machine qualified before leaving factory
4.we have good after-sale service team,we will solve all problems within 24 hours on internet and tel
5.we will free training to make sure u know how to operate cnc router
Guarantee & Aftersales Service:
1.Guarantee the High speed plastic 4 aix 3d cnc engraving machine for one year.
2.We can design the 3d engraving machine machine as your requirement.
3.User-friendly English manual for 4 aix 3d engraving machine using and maintaining.
4.Providing low price and high quality engraving machine for customers.
FAQ:
Q1.How to get the most suitable machine and best price.
Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.
Q4.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
One year .If you have any questions during this time,we will solve it for free.
