Home > Products > Diesel Power Machinery > electric start marine diesel engine 4L88C 88hp with DNV/BV/CCS for fishing boat in Philippines

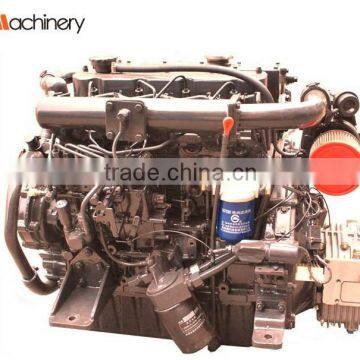

electric start marine diesel engine 4L88C 88hp with DNV/BV/CCS for fishing boat in Philippines
- 50 Unit / Units per Month
- Shanghai
- T/T
You May Like
-
High speed marine diesel engine SY144C 130hp With CCS/DNV/ABS for lifeboat in Vietnam
-
3cylinders Marine diesel engine with gearbox 39hp N485J-3 with CCS/DNV electric starting for enclosed lifeboat in Dubai
Quality Choice
-
4 stroke marine diesel engine SY144C 130hp 3.2L With CCS/DNV/BV for fishing boat in Philippines
-
4 stroke Marine diesel engine with gearbox 28hp ZX2105J-1 2.1L electric starting for open type lifeboat in Dubai
-
4stroke Marine diesel engine with gearbox 39hp N485J-3 2.2L with CCS/ABS electric starting for enclosed lifeboat in Brazil
-
Marine diesel engine with gearbox 88hp 4L88CB electric starting with CCS/LR/ABS for enclosed lifeboat in Dubai
Product Details
| Condition | New | Engine | 4 Stroke | |
| Engine Capacity | 2.1 - 3L | Fuel Type | Diesel | |
| Cylinders | 4 | Engine Position | Inboard | |
| Dimensions (L x W x H) (mm) | 695*650*658mm |
Product Description
Have “CCS”,“ZY”and“EC” type approval certificates
Match with SCG025,ZF25M,ZF30M,MA125A reduction gearbox and high flexible coupling
Low inertia hole of fuel injector with low fuel consumption and emission
Exhaust manifold integrated with sea fresh water heat exchanger design, it has a compact size and lower noise
Main Technical Data
Model | 4L68C | 4L88C |
Type | In line,water cooling, four stroke, nature inspiration | In line,water cooling, four stroke, turbo charger |
Combustion chamber type | Direct injection | |
Cylinder No. | 4 | |
Bore×Stroke (mm) | 95×100 | |
Total displacements (L) | 2.834 | |
Fire order | 1→3→4→2 | |
Compression ratio | 18:1 | |
Rated power/Speed (kW/r/min) | 50/3200 | 65/3200 |
Max. power/Speed (kW/r/min) | 55/3303 | 71.5/3303 |
Rated fuel consumption (g/ kW·h) | ≤245 | |
Lubrication method | Combination of force,Splash | |
Cooling method | Force water cooling,closed circulation by sea fresh heat-exchanger | |
Rotation direction | Anticlockwise (View from flywheel end) | |
Starting method | Electric(option another starting device) | |
Max. idle speed(r/min) | 3460 | |
Idle speed (r/min) | ≤850 | |
Overall dimension(L×W×H)(mm) | 666×630×658 | 695×650×658 |
Net weight(Kg) | 280 | 305 |
