Specifications
eyepiece camera for microscopeDESCRIPTION

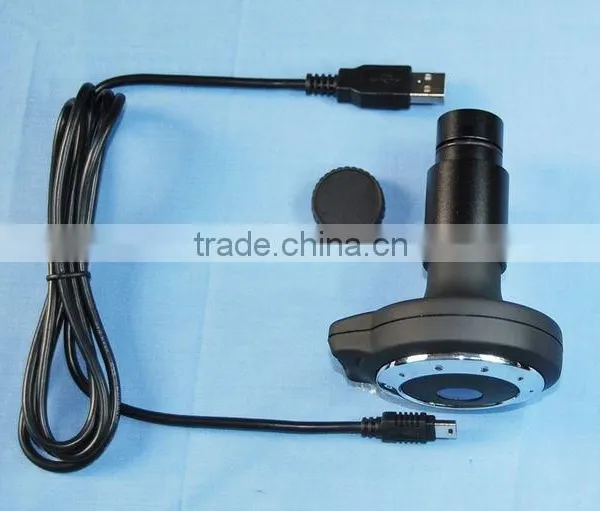

MEM1300 (1.3 megapixel) is professionally designed for microscope, which is usually to be connected to either microscope eyepiece tube or the trinocular c-mount. MEM1300 captures stills photos of 1280*1024 pixel and video clips of 640*480 pixel. The special design of IC Board enables MEM1300 offer true color and bright image, and with a advanced imaging software you can create excellent microscopy reports by setting density, contrast, saturation, sharpness and exposing time. MEM1300 keeps the balance between resolution and transmitting rate. It is hard to process a big image file on net, so more resolution is not always better.
SPECIFICATIONS
Sensor Parameter |
1/2" 1.3 Mega Pixels CMOS |
Max Resolution |
1280*1024 |
USB Device |
USB 2.0, 480 MB /s |
Frame Rate |
16 f/s @ 1280*1024 |
Preview Model |
1280*1024, 640*480, 320*240 |
Pixels Size |
5.2μm *5.2μm |
Sensitivity |
1.8 V/lux-sec@550nm |
Spectrum response |
400nm---1000nm |
Shutter Type |
ERS(electronic rolling shutter) |
White Balance |
Auto |
Accessories |
One adapter of Dia.30 mm for stereo microscope |
USB cable length |
1.5M |
Operating System |
Windows--XP2,Vista |
|
Basic PC* |
Pentium4 2.0GHz or more |
512MB RAM or more | |
USB 2.0 Port | |
17 Monitor or more big |
PACKAGE
PRODUCT PACKAGE
Unit package:19*13.4*8.6cm*3
Standars package:68*39*44.5cm*3
