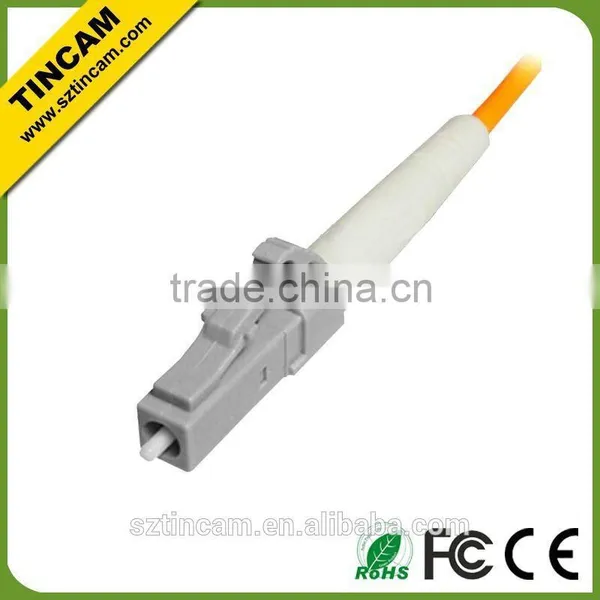

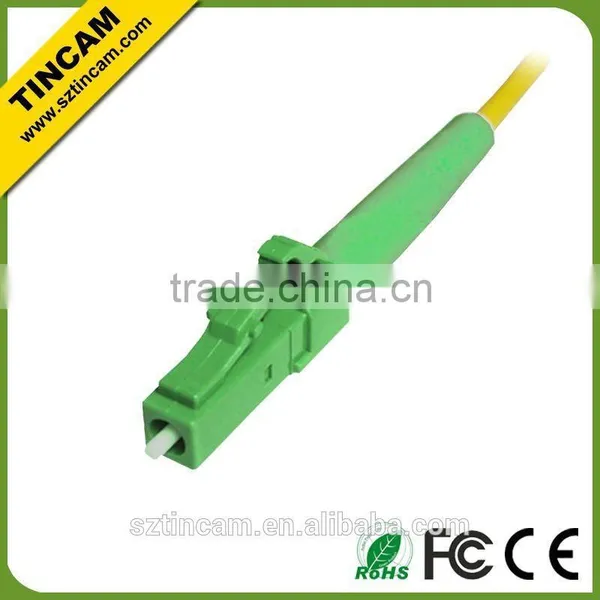

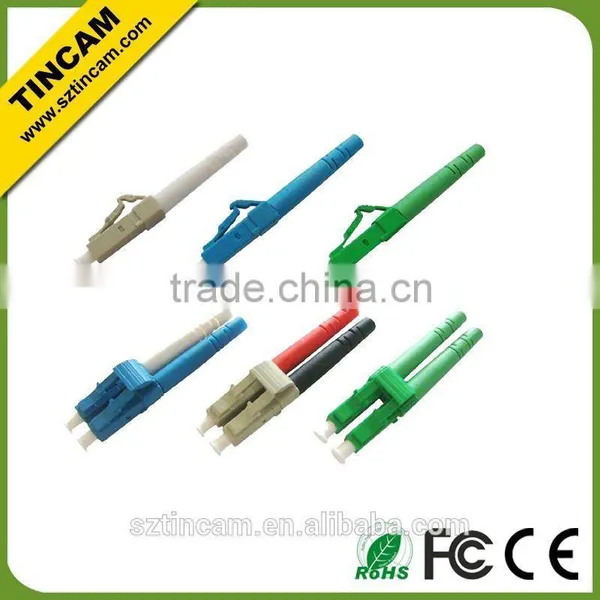

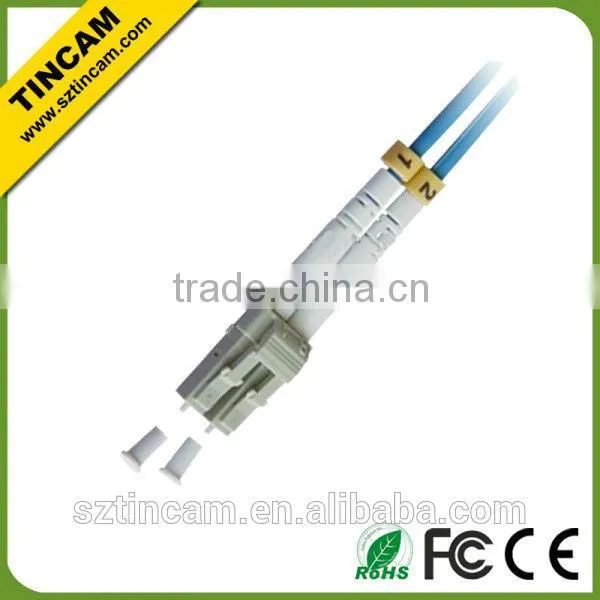

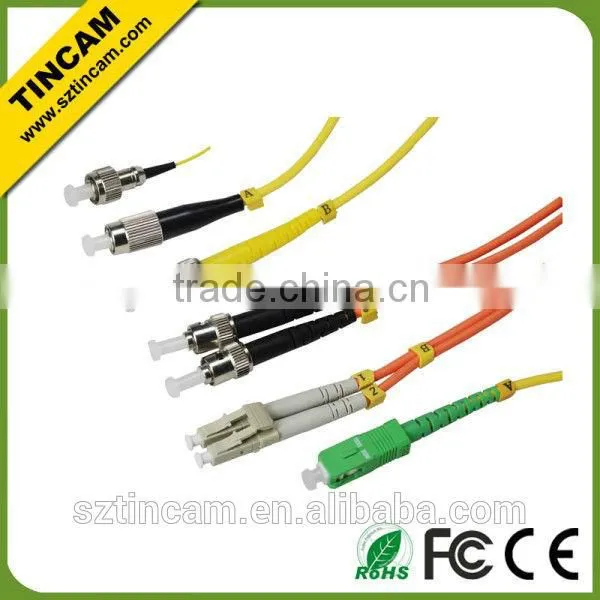

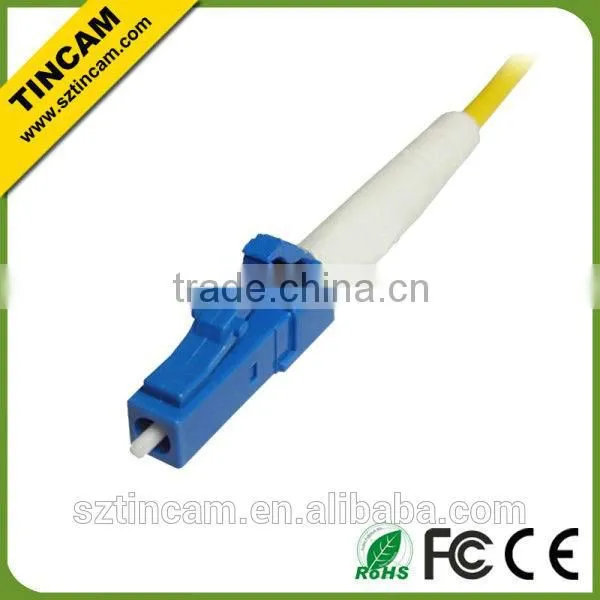

simplex LC Fiber optic Connector
1. Applications:
--CATV
--Telecom Network
--Metro
--Multimedia
--Data processing
--Premiseinstallation
--GigabitEthernet
2. Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramicferrule
3.Specifications:
| Single Mode | Multimode | |
| Insertion Loss | <0.10dB | <0.15dB |
| Return Loss | ≥55dB (APC ≥65dB) | ≥35dB |
| Duranility | <0.1dB typical change, 500 matings | |
| Operating Temperature | -40 to +75 °C | -40 to +75 °C |
| Ferrule Hole Sizes | 125.0+1/-0um,Conentricity:≤1um | 125um,Conectricity:≤3um |
| 125.3+1/-0um,Conentricity:≤1um | 127um,Conectricity:≤3um | |
| 125.5+1/-0um,Conentricity:≤1um | 128um,Conectricity:≤3um | |
| 126.0+1/-0um,Conentricity:≤1um |
4. Ordering Choices:
FC/PCSM one-piece, multi-piece, 3mm or 2mm boot
FC/PCSM one-piece, multi-piece, 900um boot
FC/APCSM one-piece, multi-piece, 3mm, 2mm or 900um boot (conical)
FC/APCSM one-piece, multi-piece, 3mm, 2mm or 900um boot (step)
FC/APCSM one-piece, multi-piece, 3mm, 2mm or 901um boot (conical pre-angled)
FC/PC MM one-piece, multi-piece, 3mm or 2mm boot
FC/PC MM one-piece, multi-piece, 900um boot
