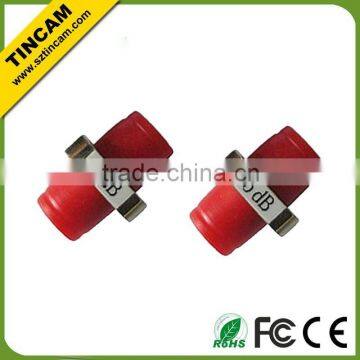

FC-UPC Female to Female SM ATTENUATOR
- 100000 Piece / Pieces per Month
- Yantian
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Tincam | |
| Model Number | FC-UPC Female to Female SM ATTENUATOR |
Product Description
FC-UPC Female to Female SM ATTENUATOR
FEATURES
n Metal ion doped fiber
n Attenuation levels ranging from 1 dB to 30 dB
n Low back reflection
n High power endurance
n Maximum stability, reliability and flat spectral response
n 100% IL, RL and visual inspection tested
n Easy to connect/disconnect (Push-Pull)
n High mechanical resistance
APPLICATION
n Telecommunication
n Local area network
n CATV,FTTH
n Fiber optic sensors
n EDFA loop tests and measurements
n Optical transmission system
n Testing instruments
TECHINCAL SPECIFICATIONS
Parameters | FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid |
Attenuation Range | 0dB ~ 30dB |
Operation Wavelength | SM: 1260-600nm, or 1310nm/1550nm |
MM:850nm, 1310nm | |
Return Loss | ≤50dB (PC) |
≤55dB (UPC) | |
≤65dB (APC) | |
Attenuation Accuracy | ±0.5dB (1 ~ 10 dB) |
±10% of Attenuation Value (11~30 dB) | |
Polarization Dependent Loss (PDL) | ≤0.2dB |
Exchangeability | ≤0.2dB |
Repeatability | ≤0.2dB |
Durability | ≤0.2dB Typical 1000 matings |
Maximum Optical Input Power | 200mW |
Operating Temperature | -20 ~ +75°C |
Storage Temperature | -40 ~ +85°C |
ORDER INFORMATION
TBC | — | FC | / | PC | — | SM | — | SX | — | 5 | — | 1310 | |||||
0 | 1 | 2 | 3 | 4 | 5 | 6 | |||||||||||
0 | Brand name | ||||||||||||||||
1 | Connector:: LC, SC, FC, ST, MU, etc | ||||||||||||||||
2 | Lapping Way : PC&APC | ||||||||||||||||
3 | Cable Type SM(9/125μm) ,MM(50/125μm & 62.5/125μm) | ||||||||||||||||
4 | Fiber Number SX(Simplex) or DX(Duplex) | ||||||||||||||||
5 | Attenuation : 1dB, 2dB, 5dB, 7dB,10dB, 15dB, 20dB 30dB or others | ||||||||||||||||
6 | Wavelength: 1310nm & 1550nm or 850 | ||||||||||||||||
7 | |||||||||||||||||
