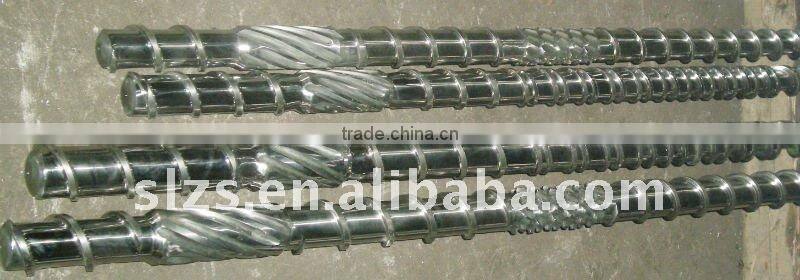

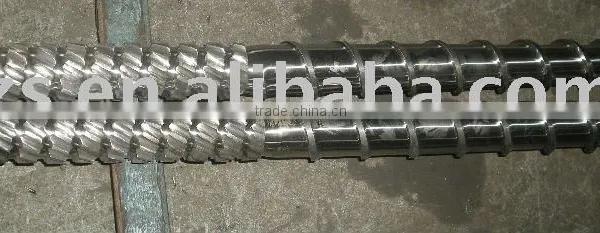

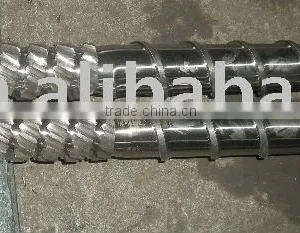

Help CenterSingle Screw for PP,HDPE,LDPE Blowing Molding Machine
Related Products
-
Degassing Screw for PP GranulaUS$ 100 - 10,000MOQ: 1 Set -
Blowing Molding Machine Screw BarrelUS$ 100 - 10,000MOQ: 1 Set
-
Single Screw and Barrel for Blowing Molding MachineUS$ 100 - 10,000MOQ: 1 Set
-
Single Extruder Screw and BarrelUS$ 500 - 10,000MOQ: 1 Set
-
Extruder Screw BarrelUS$ 100 - 100,000MOQ: 1 Set
Specifications
Depending on your intended application we can place a broad range of products, geometries and materials at your disposal.1.Conical(parallel) twin screw& barrel
Production scope:
Conical twin screw and double holes cylinder Φ35/70~Φ92/178
Parallel twin screw and double holes cylinderΦ35/35~Φ250/250
CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares.
2.Screw & barrel for single screw extruder
Production scope: Screw diameter Φ20~Φ500
Maximum screw length 10,000mm
Barrel inner bore diameter Φ500mm
3.Screw & barrel for injection molding machine
Production scope: Screw diameter Φ20~Φ500
Maximum screw length 10,000mm
Barrel inner bore diameter Φ500mm
4.Assembly parts of screw & barrel
Technical data:
Depth of Nitrated Layer: 0.5-0.8mm Hardness of nitration: 900-1020Hv
Fragility of nitration: Less than grade 1 Surface roughness: Ra 0.4um
Hardness of Cr-coating Layer: ≥950Hv Thickness of Cr-coated Layer: 0.03-0.08mm Hardness of Bimetallic Layer: HRC55-72 Depth of Bimetallic Layer: >2mm
