Austempered Ductile Iron( ADI ) Grinding Ball

FOB Price

US$ 700 - 1,200 / Ton

10 Tons(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Rong Mao, Rong Mao
Model Number	ADIB 60-150	Application	Applicable for all Mines, Cement Plant and Power Plant., metallurgy mine, ore dressing,power coal-grinding and cement productio
Dimensions	60-150 mm, 60mm-150mm

Product Description

Austempered Ductile Iron( ADI ) Grinding Ball

Product Description

Chemical Composition(%)

C	Si	Mn	Cr	Ni	Cu	Mo	S	P
3.3-3.9	2.2-3.0	2.3-2.9	1.0	0.2-0.5	0.4-1.0	0.3-0.8	0.03-0.05	0.03-0.05

1. Key Indicators

Description	Properties			Metallographic Structure	Falling- ball Impact Fatigue Life
	Hardness (HRC)		AK (J/cm²)		≤Φ100	>Φ100
	Superficial	Center
ADI Grinding Ball	64	60	7-10	B+A+Carbide	≥18000	≥15000

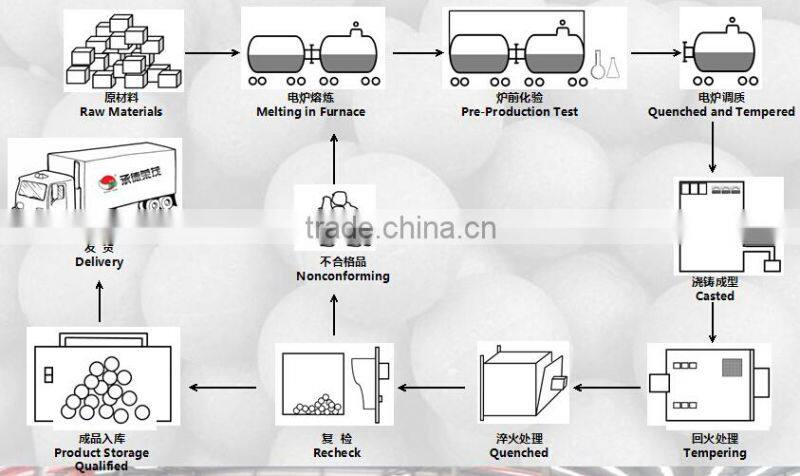

2. Production Process

Advantages

1. Characteristics and Advantages

Properties contrast with other type grinding balls:

Description	Properties			Metallographic Structure	Falling-Ball Impact Fatigue Life
	Superficial Hardness (HRC)	AK (J/Cm²)
ADI Grinding Ball	≥60		≥7	B+A+ Carbide	<Φ100	≥18000
					≥Φ100	≥15000
Low-Cr Ball	≥45		≥2.5	P + Carbide	>5000
Medium-Cr Ball	≥47		≥2.5	P + Carbide	<Φ80	≥13000
					≥Φ80	≥6000
High-Cr Ball	≥55		≥2.5	M + Carbide	<Φ80	≥15000
					≥Φ80	≥10000
Forged Ball	≥47		≥10	P + Carbide	----	----

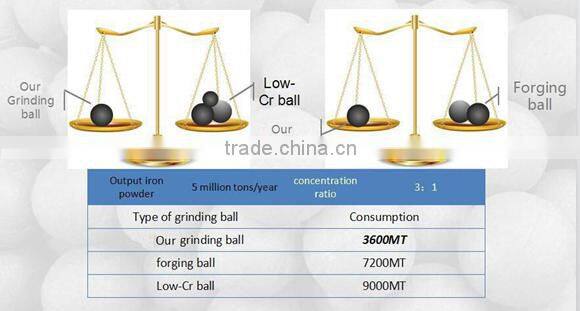

Consumption contrast with other type grinding balls:

ADI Grinding Ball Advantage:

1. High hardness and good wear resistance;

2. Strong toughness and unbreakable;

3. Regular outer shape, keeping a round shape without deformation;

4. Light weight and energy saving and environmental protection.

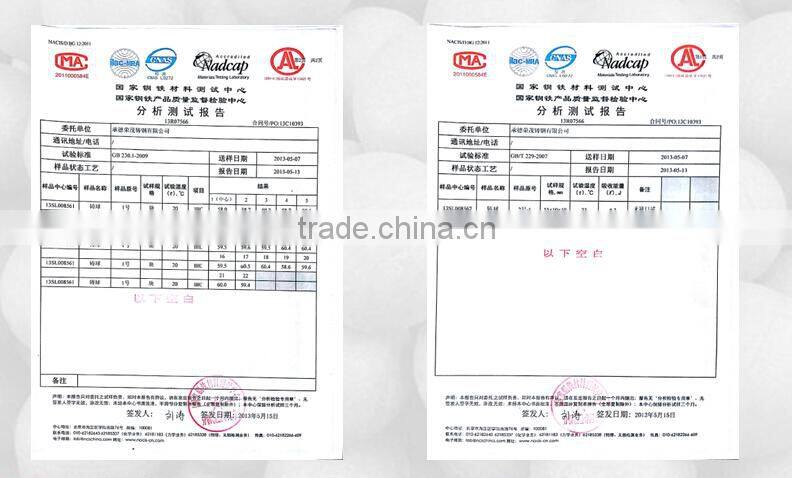

2. The Third-Party Testing Report

Company Information

1. Our company is awarded as " Honor the Contract and Keep the Promise Company" by government for successive years.

2. Selling well at home and abroad.

We sincerely welcome OEM and ODM orders.

Production Capacity:

Product Line Name	Production Line Capacity	Actual Produced(Previous Year)
Grinding Ball and Lining Plate	6,000 Tons / Month	48,000 Tons

Real Case for Large Contract:

Products Name	Order(in the last 12 months)
Austempered Ductile Iron Grinding Ball	1,100 Tons

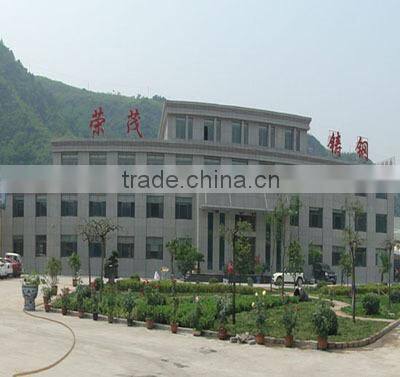

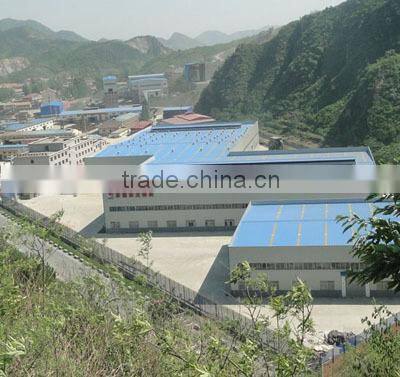

Our Factory

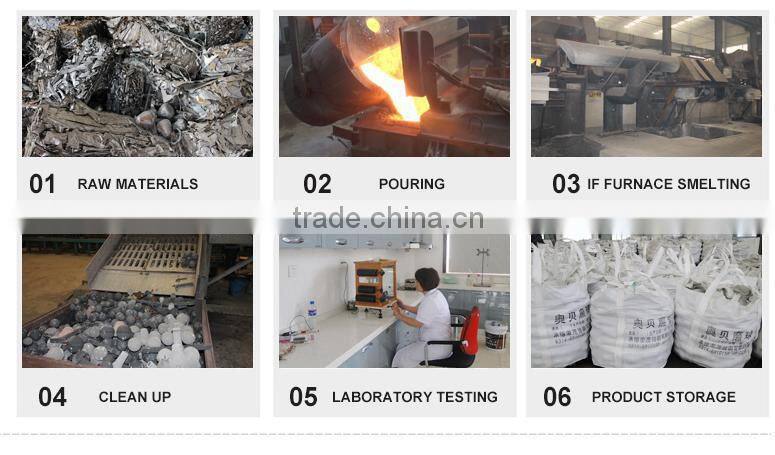

Automatic production line of casting molding, ingenious “Isothermal Quenching Process”

Packaging & Shipping

Packaging Detail: FLEXIBLE CONTAINER BAGS OR STEEL DRUMS

Delivery Detail: According to the order and client's instructions.

2. Selling well at home and abroad.

We sincerely welcome OEM and ODM orders.

Production Capacity:

Product Line Name	Production Line Capacity	Actual Produced(Previous Year)
Grinding Ball and Lining Plate	6,000 Tons / Month	48,000 Tons

Real Case for Large Contract:

Products Name	Order(in the last 12 months)
Austempered Ductile Iron Grinding Ball	1,100 Tons

Our Factory

Automatic production line of casting molding, ingenious “Isothermal Quenching Process”
