Factory Direct Sale Diesel Generator 150 Kva With ATS

FOB Price

US$ 6,500 - 9,500 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	JG
Model Number	CCFJ120J	Output Type	AC Three Phase
Speed	1500rpm	Frequency	50hz
Rated Power	120kw	Rated Voltage	400v
Rated Current	360A

Product Description

Specifications

1.diesel generator 150 kva
2.ISO,CE certificate
3.global service for 12 month
4.reliable performance

1. diesel generator 150 kva general feature:

1) Output range: 120kW (150kVA)

2) Engine model: cummins engine

3) Alternator: Stamford, Marathon series

4) Water-cooled

We are the top VIP supplier on Alibaba ,

authorized by famous certification authority-BV ( Bureau Veritas ).

2. Diesel Generator Technical Data:

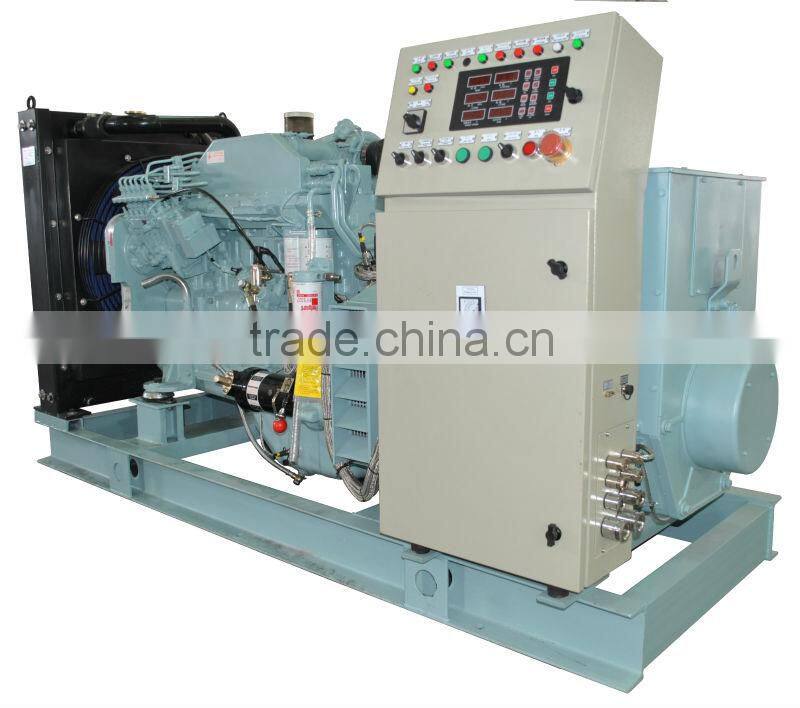

120kw cummins marine generator

1.Main technical data of genset
1.1	Model	CCFJ120JW
1.2	Prime power	120KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	1700kg
1.6	Overall dimension	2100×800×1360mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	CUMMINS
2.2	Model	6CTA8.3-GM155
2.3	Prime power	155KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	114×135 mm
2.8	Displacement	8.3L
2.9	Starting method	Electric
2.10	Fuel consumption	212g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-120-4
3.3	Prime power	120KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H

3.Warranty:

Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

4.Certificate & Document:

1) Alternator operation and maintenance manual 1PC

2)Engine operation and maintenance manual 1PC

3)Generator Overall drawings of the set 1PC

4)Electrinic system drawing 1PC

5)Bench test 1PC

6)Packing list 1PC

5.picture:
