4Cr5MoSiV1 ( H13 ) Hot Work Steel

FOB Price

US$ 500 - 3,000 / Ton

5 Tons(Min. Order)

Port TIANJING PORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS, DIN, GB, JIS	Grade	4Cr5MoSiV1 (H13)
Thickness	20-200mm	Place of Origin	Shanxi, China
Brand Name	exsteel	Model Number	4Cr5MoSiV1 (H13)
Type	Other, Hot work steel	Technique	Other, hot rolled or forged
Surface Treatment	Coated	Application	Other, Hot work steel
Special Use	Other, Hot work steel	Width	205-610mm
Length	Customized

Product Description

1. MAIN APPLICATION

a, Full hardness (52-54HRC) plastiy moulds with high polishing and long lifetime requirements (such as Bakelite plastic moulds)

b, Lead, Zn and Alalloy die casting moulds (such as engine radiator, lights and other decration products)

c, Aluminium extruded moulds (such as Aluminum window frame, computer radiator)

d, Hot forging moulds (such as auto connecting rods, crank, stainless dinner knife)

e, Cu ally extruded, die casting moulds.

2. DELIVERY CONDITION

EF or ESR, hot rolled or forged, black surface or milling

Hardness: annealed to HB≤229

Width: 205-610mm

Thickness: 20-200mm

Rounds: dia 20-300mm

3. CHARACTERISTICS

a, Electroslag remelting steel, high purity; good resistance to dissolve

b, Homeogeneous micrstrure, better heat resistance with good toughness, high temperature resistant resistant metal erosion

c, Good resistance to high temperature tempering performance, hardness steady working under 600℃, low dimensional distortion.

d, Cold and hot fatigue resistance, good heat checkign resistance ability

4. DELIVERY

Acc. to your request--Standard steelbar (sawing)

--non-standard steel bar (sawing)

or Mill deliver condition, without sawing or cutting.

5. CHEMICAL ANALYSIS

6. COMPARED GRADES(BASED ON USAG

7. HEAT TREATMENT(FOR REFERENCE)

China grades	Foreign grades	C	Si	Mn	P≤	S≤	Cr	Mo	V
——	1.2344	0.37-0.42	0.90-1.20	0.30-0.50	0.030	0.030	4.80-2.50	1.20-1.50	0.90-1.10
4Cr5MoSiV1	H13	0.30-0.40	0.80-1.20	0.20-0.40	0.030	0.030	4.75-5.50	1.25-1.75	0.80-1.20

Chinese	American	German	Swedish	Japanese
GB	AISI	DIN	ASSAB	JIS
4Cr5MoSiC1	H13	1.2344	8407	SKD61

Quenching	Tempering/HRC
1020-1050	100	200	300	400	500	550	600	650	700
Air, oil or salt bath	52	52	52	54	54	54	50	42	32

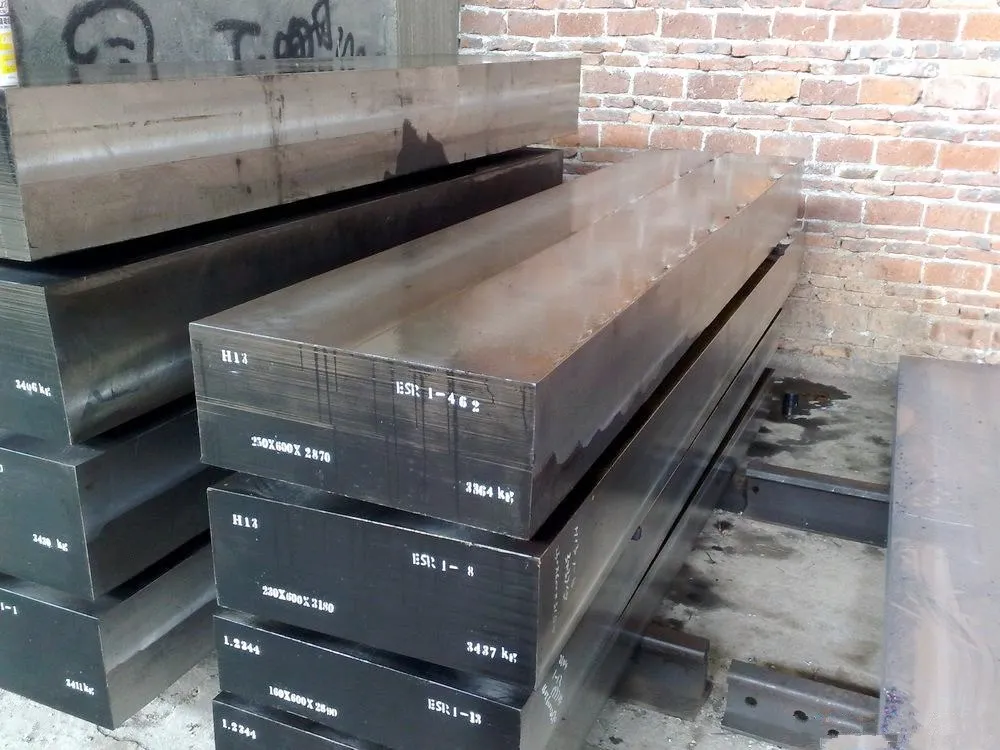

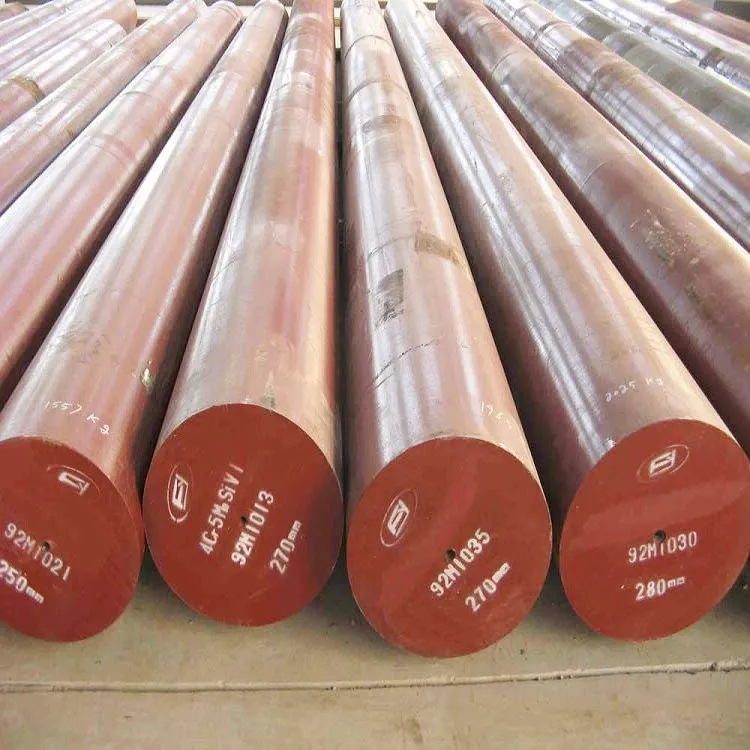

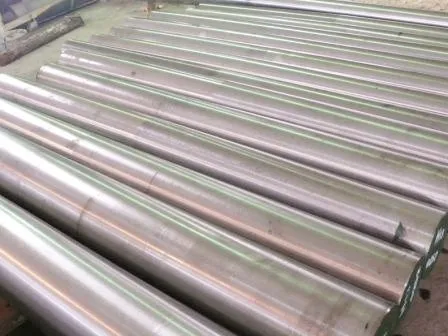

Products Show

Our Service

Sawing

According to your request :
-- Standard steel bar (sawing)

--non-Standard steel bar (sawing)
-- Mill deliver condition , without sawing or cutting .

Ultrasonic Testing

Hardness detection

Our Company

Company Profile

EnXiang International Co.,Ltd is ZhongYe cast steel factory subordinate company,Started the first domestic special steel smelting, ferroalloy sales and commodity foreign trade in a body comprehensive enterprise. The company has independent import and export rights, has the abundant technology, equipment and an experienced team with high quality. After more than 30 years of development, has now become a set of steelmaking, casting, production and sales as one of the medium-sized enterprises. Currently has yearly produces 20000 tons of capacity.

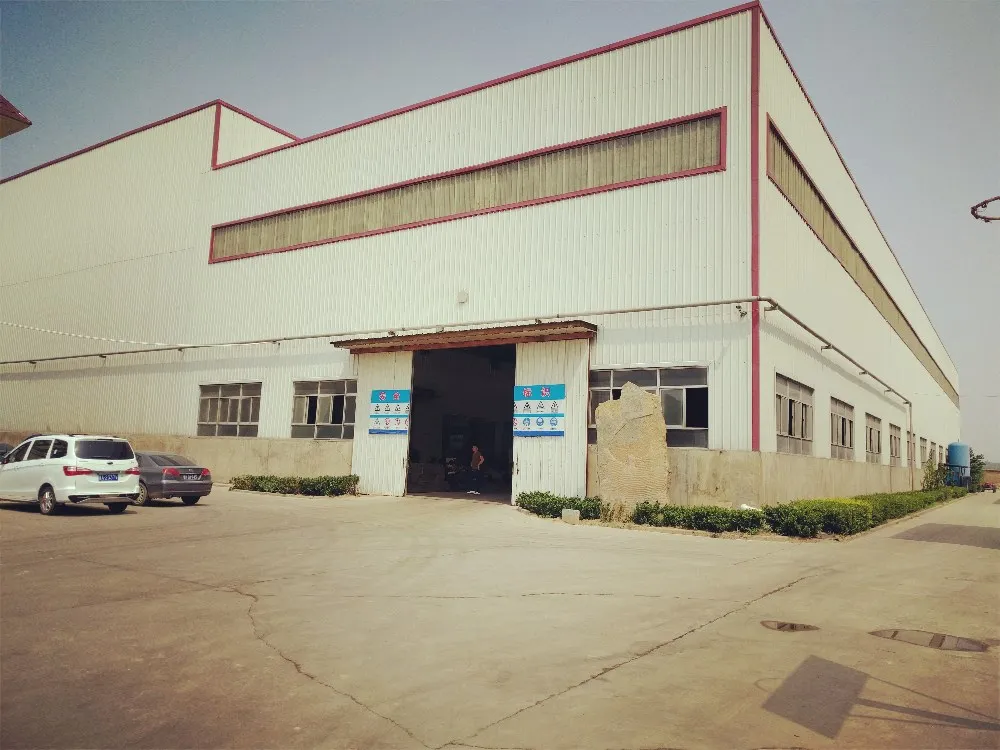

Factory

Our Factory

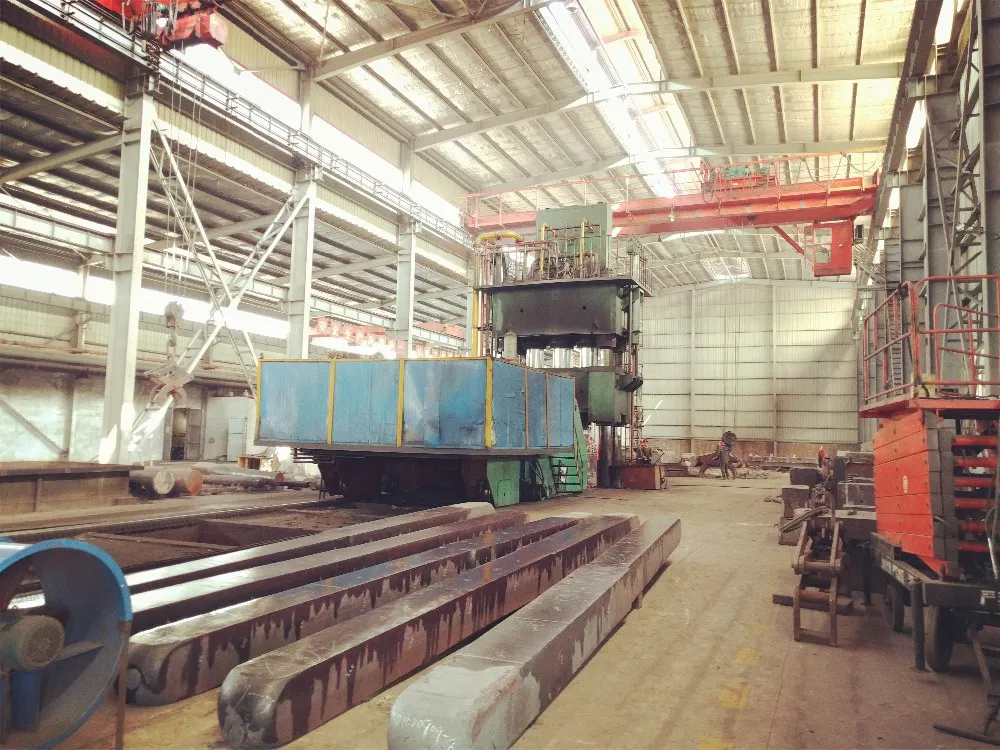

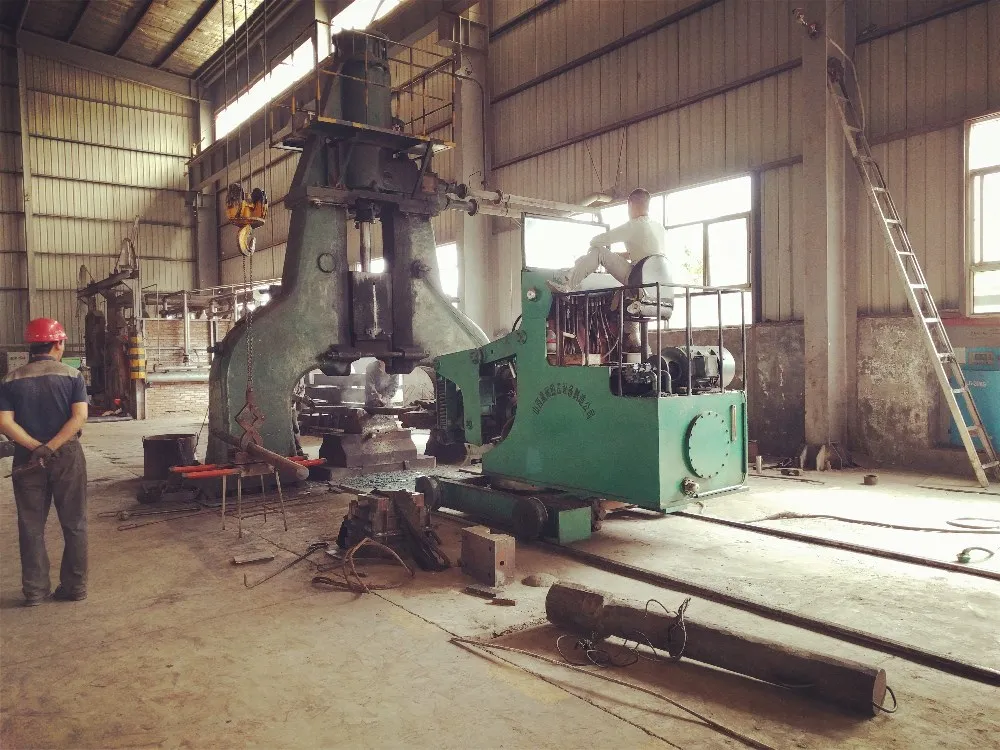

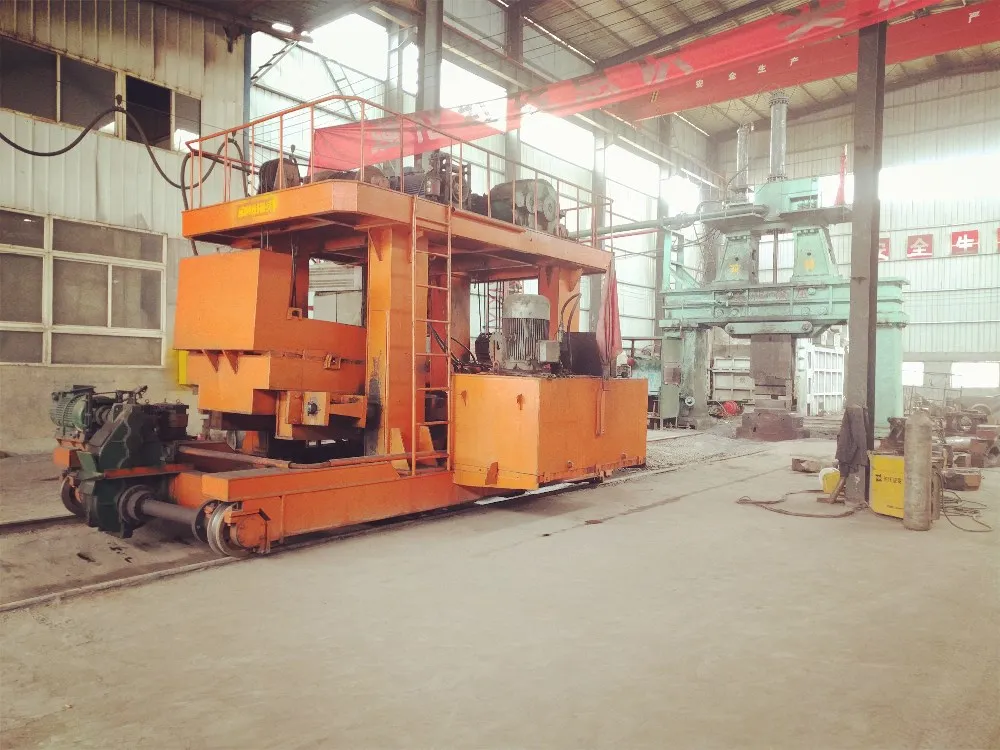

Workshop

Our Workshop

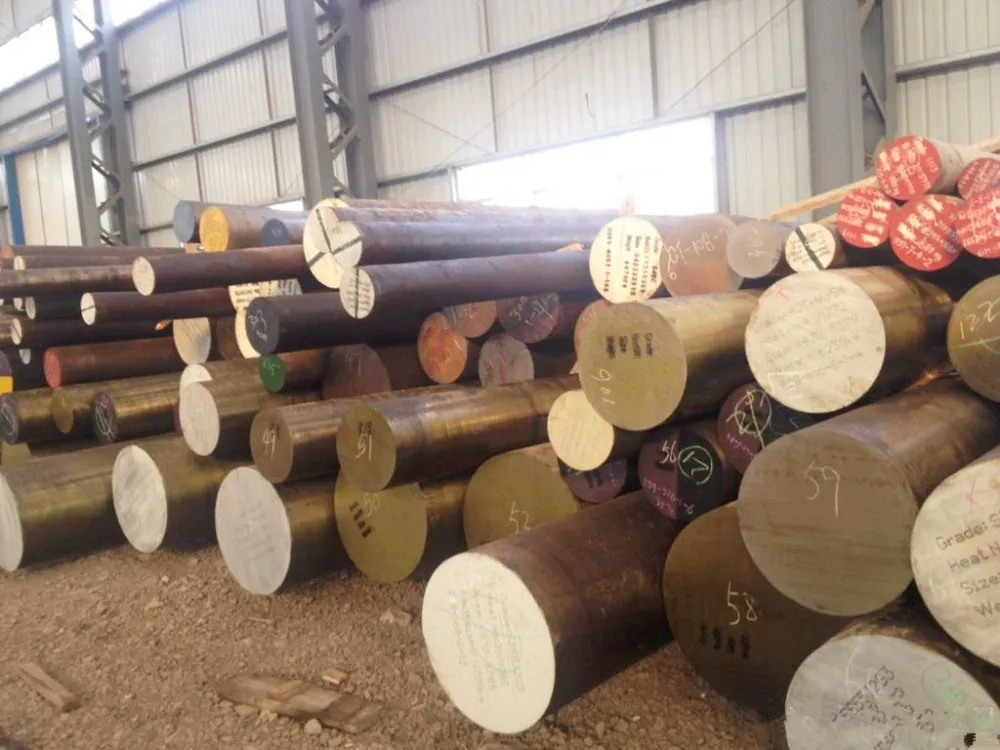

Warehouse

Our Warehouse

Team

Our Team

Delivery

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

Our Certifications

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
