Elevator Oil Buffer/Lift Hydraulic Oil Buffers
US$ 50 - 90
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Banda
Model Number:
BDOH-425
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port Zhangjiagang port Taicang port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Elevator Oil Buffer/Hydraulic Oil BuffersUS$ 50 - 90MOQ: 10 Pieces -
Lift Safety Components / Elevator Oil Buffer / Lift Hydraulic BufferUS$ 50 - 90MOQ: 10 Pieces
-
Elevator Oil Buffer / Lift Safety ComponentsUS$ 50 - 90MOQ: 10 Pieces
-
Lift Hydraulic Buffer, Lift Oil Buffer, Lift Safety ComponentsUS$ 50 - 90MOQ: 10 Pieces
-
Elevator Hydraulic Buffer, Lift Oil Buffer, Lift Safety ComponentsUS$ 50 - 90MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Banda
Model Number
BDOH-425
Elevator Oil Buffer
1.Oil Buffer for elevator
2.Various specifications available
3.Passed testing by NETEC
Elevator Buffer, Elevator Oil Buffer, Hydraulic Buffer, Elevator Hydraulic Oil Buffer
Banda has been supplying various specification of elevator oil buffer as per customers’ requirement as follows. Oil buffer are well sealed without any oil leakage, free of maintenance. They are green products which are tested and passed by National Elevator Inspection and testing center of China.
Elevator Oil Buffer Parameters
| Model | Rated Speed | Max.total buffer weight | Min.total buffer weight | S(mm) | L(mm) | aXb(mm) | AXB(mm) | C(mm) |
| BDOH-10 | ≤1.0m/s | 2500kg | 300kg | 100 | 388 | 150x90 | 180x125 | 14 |
| BDOH-16 | ≤1.6m/s | 5300kg | 700kg | 175 | 625 | 210x100 | 270x150 | 18 |
| BDOH-20 | ≤2.0m/s | 5300kg | 1300kg | 290 | 915 | 210x100 | 270x160 | 18 |
| BDOH-65 | ≤0.63m/s | 4600kg | 1000kg | 65 | 350 | 150x100 | 190x160 | 14 |
| BDOH-70 | ≤1.0m/s | 2500kg | 300kg | 70 | 305 | 210x80 | 250x125 | 18 |
| BDOH-80 | ≤1.0m/s | 3000kg | 600kg | 80 | 313 | 150x90 | 200x125 | 14 |
| BDOH-210 | ≤1.75m/s | 3000kg | 780kg | 210 | 600 | 150x90 | 200x125 | 14 |
| BDOH-220 | ≤1.75m/s | 2500kg | 600kg | 225 | 780 | 210x80 | 250x125 | 18 |
| BDOH-275 | ≤2.0m/s | 3500kg | 850kg | 275 | 790 | 210x80 | 250x125 | 14 |
| BDOH-425 | ≤2.5m/s | 3500kg | 860kg | 425 | 1128 | 150x100 | 190x160 |

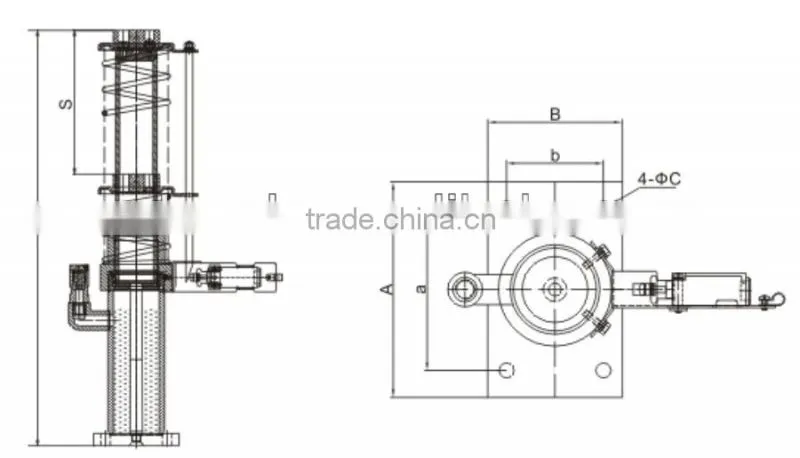

Elevator Oil Buffer Drawing

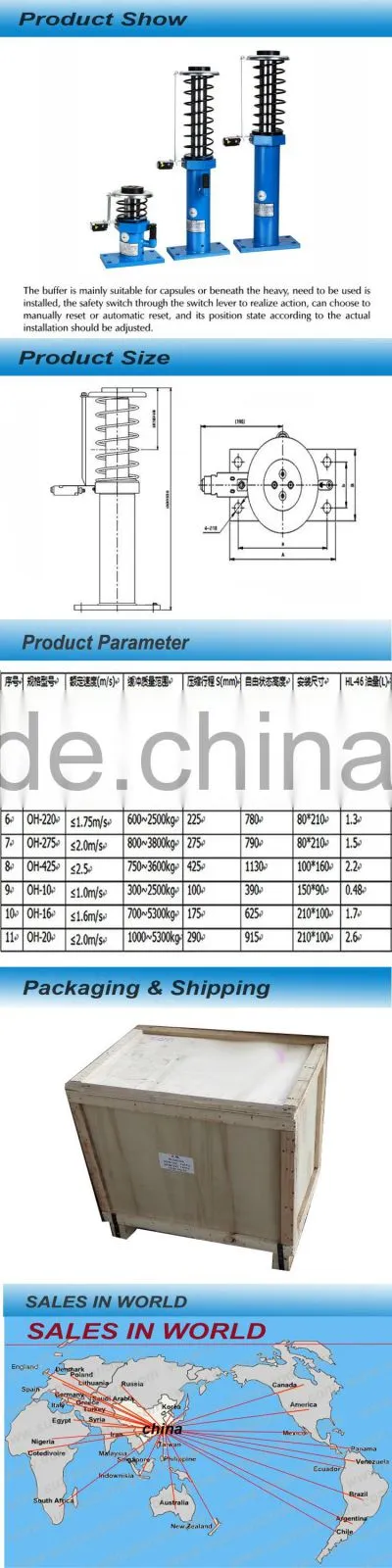

Elevator Oil Buffer Picture:
