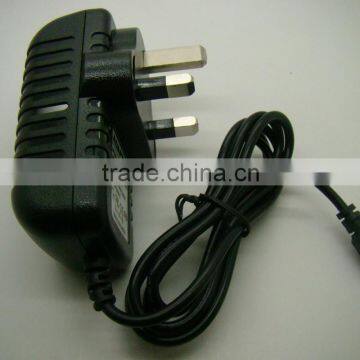

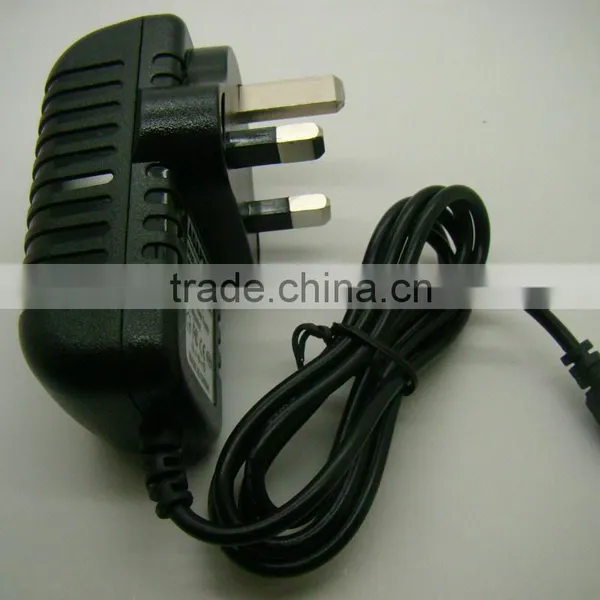

ac dc Adapter 25.5V 800mA Power Supply 25.5V 0.8A dc Power Supply

Oupt power range

25.2V1A 12.6V3A 16.8V2A (also have those models for selection)

The adapter size

85*48*32mm

The adapter weight

160g/pcs

Input Rated Voltage

100Vac~240Vac

Input Frequency Range

50Hz~60Hz

Input Current

less than 0.5A

Input Inrush Current

less than 50A

Efficiency

80%(MIN)at Rated Voltage

DC Output Voltage

25.2V± 5%  (option)

DC Output Current

1A    (option)

DC Output Power

25.2w    (optional)

Leakage Current

less than 5mA

Standby power

less than 0.5w

DC connector

5.5*2.1*10mm (optional)

DC cable

1.5m 2464UL 22AWG cable (optional)

Ripple and Noise

less than 120Mv at full road with 20MHz bandwidth

Turn On Delay Time

less than 3S  (AC:110V and full load)

Certificates

CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310

Dielectric Voltage

A IEC320 three pin input---output(FG)3000Vac one minute

Safety protection

output voltage protection (150%-180% rated output current)

output current protection (150%-180% rated output current)

short current protection

Operating Temperature

-10°C - +45°C

Storage Temperature

 -20°C - +40°C

Safety Standard

EN60950-1 UL60950-1  ESD (EN61000 3-3)

CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B

ISO 9001: 2008
