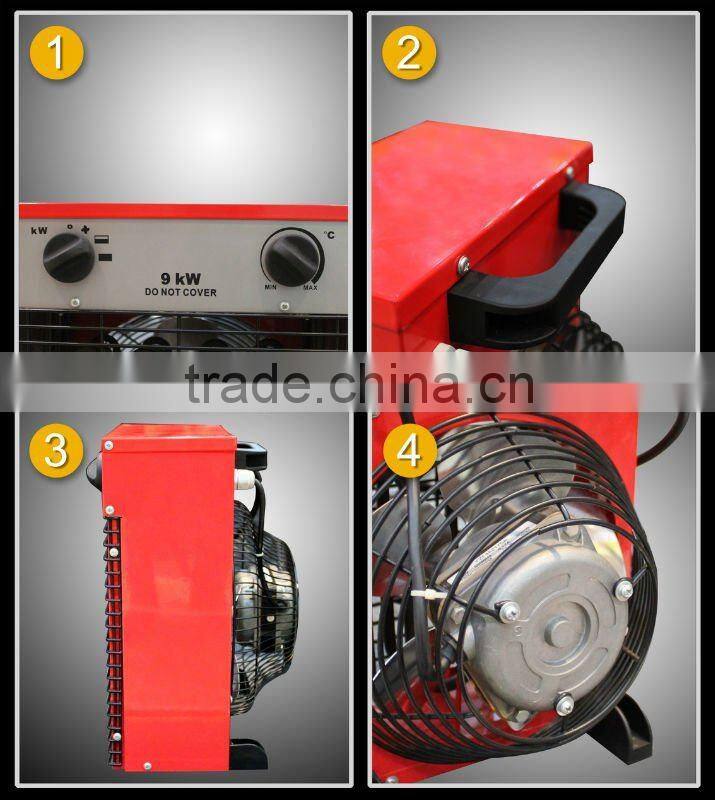

9kw Air Heater With Overheater Protection

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Air Heater	Power Source	Electric
Place of Origin	Zhejiang, China	Brand Name	BGE or OEM
Model Number	IFH02-90C

Product Description

Specifications

1.Overheat protection
2.With fan and handle
3.Whole metal casing
4.More large of Air-consumption
5.Low Noise,IPX4/CE/GS

Introduction:

* Company history: established in 1999. professional manufacturer specialized in heaters.
* Industrial fan heater, industrial diesel heater, gas forced heater,radiator heater,quartz heater etc.
*Main markets: Germany, Denmark, Norway, Sweden, Finland, UK, France,Russia, Australia, America and Asia etc.

* Employees: 320-400

* Production capacity: 6+ lines , 800,000 pcs/ year,
* Quality management system: ISO 9001

Features :

Model	IFH01-20C	IFH01-33C	IFH02-50C	IFH02-90C
Electric supply	230V ~50Hz	230V ~50Hz	400V ~50Hz	400V ~50Hz
Heating setting	25/1000/2000W	30/1650/3300W	30/2500/5000W	52/4500/9000W
Capacity	2KW	3KW	5KW	9KW
	6825 Btu/h	11260 Btu/h	17060 Btu/h	30706 Btu/h
	1720 Kcal/h	2837 Kcal/h	4299 Kcal/h	7738.2 Kcal/h
Air Output	272 m³/h	550 m³/h	550 m³/h	787 m³/h
Outlet temperature	52 °C	51 °C	56 °C	75 °C
Suggestion using area	20 m²	40 m²	60 m²	80 m²
Packing	1 pcs/ctn	1 pcs/ctn	1 pcs/ctn	1 pcs/ctn
Product Meast	215x205x280mm	260x220x340mm	265x225x345mm	305x385x390mm
Packing Meast	220x210x310mm	275x230x370mm	275x255x365mm	310x280x425mm
N.W.	3.1 kgs	4.0 kgs	5.1 kgs	7.0 kgs
G.W.	3.6 kgs	4.6 kgs	5.9 kgs	8.0 kgs
Qty/20'	1955 pcs	1196 pcs	1090 pcs	759 pcs
Qty/40'	4049 pcs	2478 pcs	2265 pcs	1572 pcs
Qty/40'HQ	4747 pcs	2905 pcs	2656 pcs	1843 pcs

Details:

1. New mini type design

2. Heating element : Stainless steel

3. Adjustable thermostat control

4. Overheat protection

5. With fan

6. Free standing & portable type

7. No fumes, no odours, no humidity

8. Strong and long lasting construction

9. 5 / 9KW with time-delay function

10. 5 / 9KW with relay

11. Waterproof class IPX4

Certificates:

CE / GS / LVD / EMC / RoHS approved .

Quality control system:

IQC (Incoming Quality Control)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)

Where to use
* Construction Sites * Factories * Barns

* Agriculture * Sports Events * Utility/Farm Buildings
