Home > Products > Building Material Series > Metal Corrugated Roofing Sheet
Metal Corrugated Roofing Sheet
- QINGDAO
- T/T
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN | Grade | hot galvanized, Q235 | |
| Thickness | 0.18-1.2mm | Place of Origin | Shandong, China | |
| Brand Name | Longfa | Model Number | ppgi | |
| Type | Steel Coil | Technique | Hot Rolled | |
| Surface Treatment | Coated | Application | Other, shutter door | |
| Special Use | High-strength Steel Plate | Width | 800-1250mm | |
| Length | 1000-6000mm |
Product Description
Specifications
Zinc coating:80g-180gcolor :ALL RAL
Top coating:15-25um
Back coating:15-20um
BV inspectio
Delivery shortly
Lowest price to Quality product
Flexible expert service
DETAILED SPECIFICATION OF PRE-PAITED GALVANIZED STEEL COIL
1. AVAILABLE DESIGNATION AND STEEL NUMBER
Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
EN 10327-2004 | (BASE PLATE) | |||
(BASE PLATE) |
| |||
Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
Drawing | TDC52D /TDC53D | - | DX52D+Z/AZ | DDS TYPE A/C |
Steel | DX53D+Z/AZ | |||
Structural | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
Steel | TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
2.OUR SPECIFICATION OF ( Pre-painted galvanized steel coil ) COILS
Available Size
Manufacturer | Thickness | Width | Length of plate | Inner diameter of coil |
SHANDONG LONGFA STEEL PLATE CO., LTD | 0.2-1.2mm | 800/914/1000/1200/1219/1250mm | 1000-6000mm | 508mm/610mm |
Coated Mass OF (Prepainted galvanized steel coils) printed PPGI coils:1.2
Base plate | Available Coated Mass(g/m^2) |
Galvanized Steel | 80, 100, 120, 160, 180 |
Galvalume Steel | 50, 70, 150 |
3.AVAILABLE PAINTING TYPES
Category of Painting | Item | Code | |
Polyester | PE | ||
High-durability polyester | HDP | ||
Silicon modified polyesters | SMP | ||
Polyvinylidene fluoride | PVDF | ||
Easy-Cleaning | — | ||
Painting Thickness | Top side: 20+5microns; | ||
Bottom side: 5~7microns. | |||
Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
Painting structure | Top surface | Bottom surface |
|
Primer coating | No coating | 1/0 | |
Primer coating | Primer coating | 1/1 | |
Primer coating + Finish coating | No coating | 2/0 | |
Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
4.APPLICATION OF OUR PREPAINTED STEEL
| Construction | Outside | Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
| Inside | Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter | |
| Electrical appliance | Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker | |
| Furniture | Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf | |
| Carrying trade | Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board | |
| Others | Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment | |

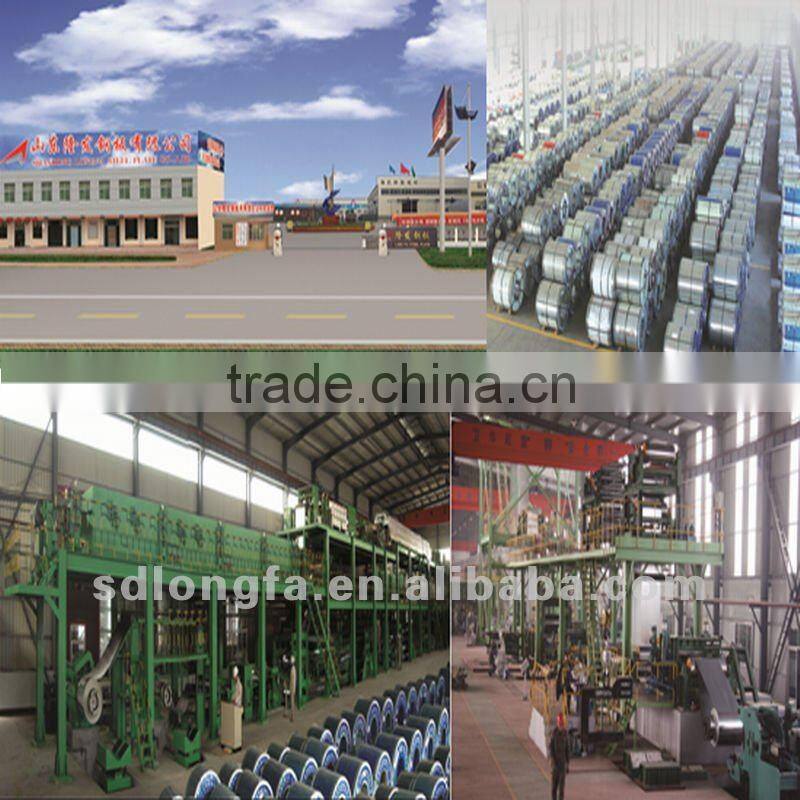

5.OUR COMPANY

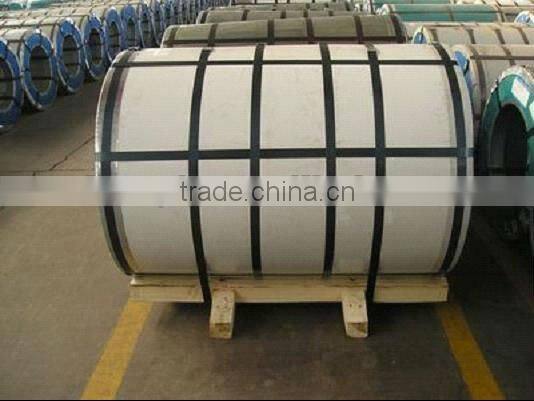

6.PACKING OF PREPAINTED
