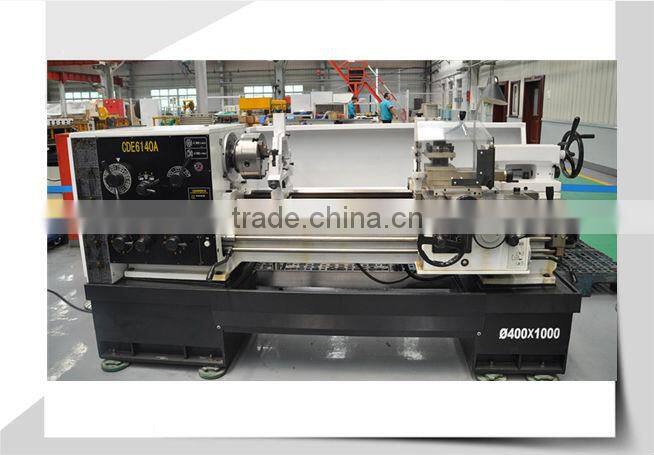

CDE6140A Manual Light-type Lathe Tool in Stock Price in China

Dalian R&C Machinery Co., Ltd.
CDE6140A Manual Light-type Lathe Tool in Stock Price in China thumbnail-1
CDE6140A Manual Light-type Lathe Tool in Stock Price in China photo-1
US$ 7,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 400
Place of Origin Liaoning, China
Brand Name R&C
Model Number CDE6140A
Voltage 380V
Power(W) 7.5 KW
Dimension(L*W*H) 2400*1198*1362mm
Weight 3905kg
Certification ISO9001,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1manual light-type lathe
2ISO9001 CE
3new design exterior
4Spindle speed11-1400rpm/22speeds
5Dia. of spindle52mm

CDE6140A manual light-type lathe tool in stock Price in China

IMAGE >> SPECIFICATION >> MAIN PARTS >>  OTHER MACHINES >>  PACKING >> R&C

CDE6140A manual light-type lathe tool in stock Price in China



IMAGE >> SPECIFICATION >> MAIN PARTS >>  OTHER MACHINES >>  PACKING >> R&C



Item

CDE6140A

CDE6240A

CDE6150A

CDE6250A

CDE6166A

CDE6266A

Max. swing over bed

400mm

500mm

660mm

Max. swing over carriage

220mm

290mm

430mm

Max. swing over gap

700mm

760mm

910mm

Width of guide way

394mm

Dia. of spindle bore

52mm

Taper of center sleeve

Morse No.6

Spindle speed

11-1400rpm/22speeds

Longitudinal feed

0.035-2.842mm/rev

Cross feed

0.009-0.804mm/rev

Metric thread

0.5-240(66)

Module thread

0.25-120(57)mm

Diametrical pitch thread

160-7-16DP(50)mm

Section of tool shank

25×25

Travel of top slide

150mm

Max.travel of cross slide

348mm

348mm

393mm

Pitch of longitudinal leadscrew

12mm

Travel of tailstock center sleeve

150mm

Diameter of tailstock center sleeve

75mm

Taper of tailstock center sleeve

Morse No.5

Main motor power

7.5kW(50Hz)/5.5kW(60Hz)









IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

CDE6140A manual light-type lathe tool in stock Price in ChinaCDE6140A manual light-type lathe tool in stock Price in ChinaCDE6140A manual light-type lathe tool in stock Price in China





IMAGE >> SPECIFICATION >> MAIN PARTS >>   OTHER MACHINES >> PACKING>> R&C

CDE6140A manual light-type lathe tool in stock Price in China



CDE6140A manual light-type lathe tool in stock Price in China



CDE6140A manual light-type lathe tool in stock Price in China



CDE6140A manual light-type lathe tool in stock Price in China



CDE6140A manual light-type lathe tool in stock Price in China



IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES >> PACKING >> R&C
CDE6140A manual light-type lathe tool in stock Price in China



IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES>> PACKING >> R&C

CDE6140A manual light-type lathe tool in stock Price in ChinaCDE6140A manual light-type lathe tool in stock Price in ChinaCDE6140A manual light-type lathe tool in stock Price in China





KINDLY CONTACT ME IF YOU NEED ANY INFORMATION.
CDE6140A manual light-type lathe tool in stock Price in China
