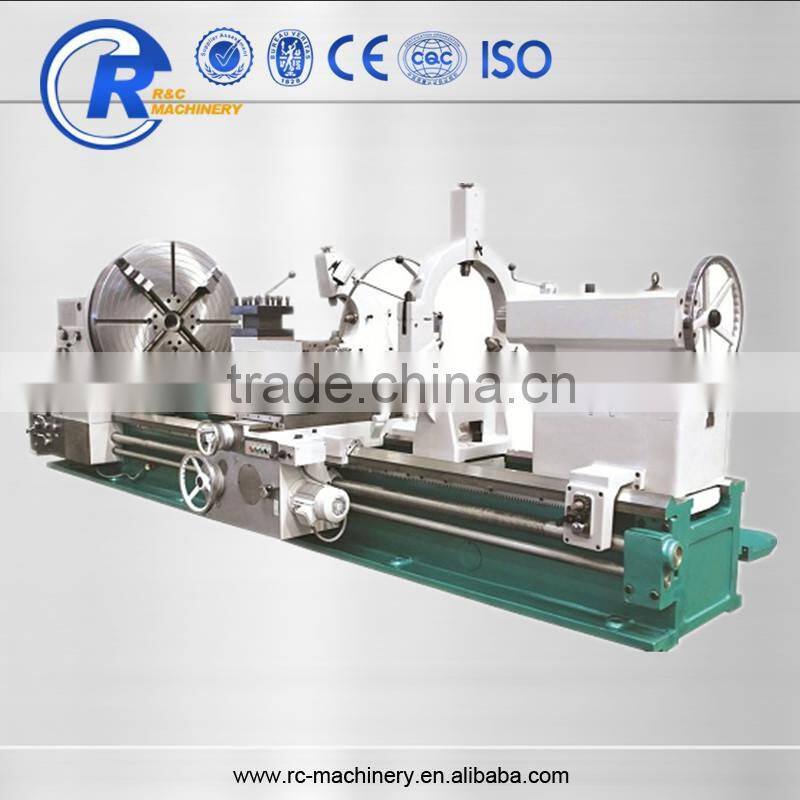

CT61125 Heavy Type Lathe Machine

Dalian R&C Machinery Co., Ltd.
CT61125 Heavy Type Lathe Machine thumbnail-1
CT61125 Heavy Type Lathe Machine photo-1
US$ 55,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 1250
Place of Origin Liaoning, China
Brand Name R&C
Model Number CT61125
Voltage 380V
Power(W) 22KW
Dimension(L*W*H) 3970-18970*2050*1650
Weight 9300-24200
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. heavy type lathe machine
2. convenient operation
3. low noise
4. high effciency

CT61125 heavy type lathe machine



IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >>  PACKING >> R&C

CT61125 heavy type lathe machine



IMAGE >> SPECIFICATION >> MAIN PARTS >>  OTHER MACHINES >>  PACKING >> R&C





ITEM

CT61100

CT61125

CT61140

CT61160

Max.swing over bed

1000mm

1250mm

1400mm

1600mm

Center distance

1000,1500,2000,3000,5000,6000,8000,10000mm

Max.swing over carriage

630mm

880mm

1030mm

1250mm



Spindle hole bore

100mm

Taper in spindle nose

1:20

Number of spindle speeds

Forward 12

Reverse 12

Range of spindle speeds

6-272rpm

4.25-192rpm



Range of feed per spindle revolution

48kids

Longitudinal 0.057-12.726mm

Cross 0.027-6.096mm

Range of metric threads

46kinds 1-224mm

Range of whitworth threads

46kinds 28-1 t.p.i

Range of module threads

37kinds 0.25-56mm

Workpiece held on the steady rest

Φ50~Φ470mm

Carriage



Tool shank section

45×45mm

Max.travel of top slide

350mm

Rapid moving speed of tool post

Longitudinal 3.8m/min

Tailstock

Cross 1.9m/min

Diameter of center sleeve

140mm

Max.travel of center sleeve

300mm

Taper in center sleeve bore(Morse)

Morse No.6

Main motor

22KW

Max.weight of workpieces between two centers

6T

Width of guideways on bed

755mm





IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C
CT61125 heavy type lathe machine



IMAGE >> SPECIFICATION >> MAIN PARTS >>   OTHER MACHINES >> PACKING>> R&C

CT61125 heavy type lathe machine



CT61125 heavy type lathe machine



CT61125 heavy type lathe machine



CT61125 heavy type lathe machine



CT61125 heavy type lathe machine



IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES >> PACKING >> R&C
CT61125 heavy type lathe machine



IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES>> PACKING >> R&C

CT61125 heavy type lathe machineCT61125 heavy type lathe machineCT61125 heavy type lathe machine





KINDLY CONTACT ME IF YOU NEED ANY INFORMATION.
CT61125 heavy type lathe machine
