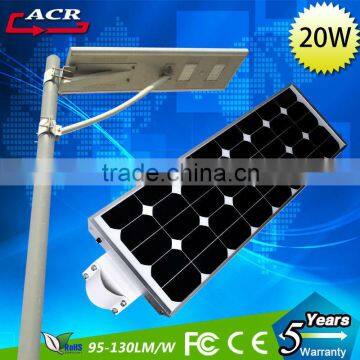

Ce Fcc Rohs Approved 5 Years Warranty Led Solar Street Light All In One 20W 12V

Specifications

all in one solar led street light 20w
1.Integrate all in one
2 30hrs time lighting time
3. Aluminum Shell

Ce Fcc Rohs Approved 5 Years Warranty Led Solar Street Light All In One 20W 12V

1. Technical Parameters of our Ce Fcc Rohs Approved 5 Years Warranty Led Solar Street Light All In One 20W 12V



Model	ACR-SS100-20w    all in one solar led street light
Solar panel	Max power	18V40W ( monocrystalline silicon )
	Life time	25 years
Battery	Type	Lithium iron phosphate Battery 12.8V/18AH
	Life time	5 years
LED Lamp     (without sensor)	Max power	12V 20W
	Led chip brand	Epistar  with high brightness
	Lumen (LM)	2000-22000lm
	Life time	50000hours
	Viewing Angle	120°
Charge time	By sun	7hours  (with enough strong shine )
Discharge time	Full power	>20hours
	Saving mode	>40hours
Working Temperature	Range( °C )	-30°C~+70°C
Colour temperature	Range(k)	6000k
Mounting height	Range (m)	5-6m
Space between light	Range (m)	18-20m
Lamps material of main	Aluminium alloy
Certificate	CE/FC/Rohs/IP65
Warranty period	3-5years
Packing & Weight	Product size	920*330*140mm
	Product weight	12.5kg
	Packing box	neutral carton
	Corton size	950*410*210mm
	Q'ty/ctn	1sets/ctn
	Gross weight	15kg
Packs Containers	20GP	375pcs
	40GP	792pcs







2.Specificaton of our  Ce Fcc Rohs Approved 5 Years Warranty Led Solar Street Light All In One 20W 12V

•  Using lithium iron phosphate battery, ensure the service life of the product.
• Long-life PV modules with more than 25 years of power generation capacity.
•  Distributed light and power - no single point of failure for enhanced security.
• Integration design, easy to carry, put solar panel, LED lamp, battery and controller all in one, cableless.
• Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running or maintenance cost.
• With CE,ROHS and IP65 certificate.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,

MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED

light will work in night automatically by light sensor control, and provide light for the darkness area,

the human intelligence induction system can save the energy when the lighting is not necessary









3.Application:

• Hiking
• Night Fishing
• Hunting
• Third World Country Urban Houses
• Weather Calamities
• Famine
• Pilgrimage
• Parks
• Reserves
• Commercial
• Industrial estates







4. Our Capacity

Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales

of high quality LED outdoor light and indoor lights,  electronic energy-saving lamps, T4 / T5 tube light indoor

lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians,

and many other professional technology research and development staff and first-class production and

testing equipment, guarantee the production of high quality.Strong technical force, complete production

testing equipment and strict quality control process to ensure theproduct quality, won the trust of many

custoers domestic and abroad.







Our Service



1.Fast and High Qualtiy Service.



•  Provide you the fastest and best service.
•  Respon within 24hours.Professional salesmen server you one to one.
•  Delivery fast.



2. After Sale Service



•  We offer the preventative maintenance and after sales Service.From the first begining to the deal close, our service to support the whole process.
• We will take the initiative to solve the problems and troubles after service.
• We also offer 5 year warranty period.



3.Welcom to visit our factory anytime!



•    We can provide IES/datasheet and other data materials if you need
•    Don't hesitate to contact me, NOW!!!!    O(∩_∩)O
