SL178F Diesel Engine

Specifications

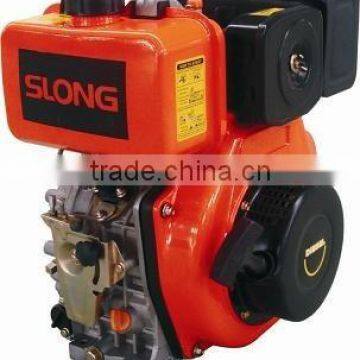

SL178F Diesel Engine
Overhead valve
SL series engines yield a greater volumetric efficiency
Quick and easy oil change.
Lon





MODEL	SL170F	SL178F	SL186F	SL186FA
ENGINE TYPE	OHV4--stroke, 25° inclined, single cylinder with air-cooled
BORE*STROKE(mm)	70*55	78*62	86*70	86*72
DISPLACEMENT(ml)	211	296	406	418
ENGINE SPEED(rpm)	3000/3600	3000/3600	3000/3600	3000/3600
COMPRESSION RATIO	20:01	20:01	19:01	19:01
RATED OUTPUT(Hp/rpm)	2.5/3000	3.7/3000	5.7/3000	6.0/3000
MAX. OUTPUT(Hp/rpm)	2.8/3600	4.0/3600	6.3/3600	6.7/3600
IGNITION SYSTEM	Non-contact transistorized ignition(T.C.L)
START MODE	Racoil and hand-operated/Electric start
AIR CLEANER	Semi-dry, oil bath,dual, double silent and cyclone type
FUEL	0# or - 10 light diesel oil
FUEL TANK CAPACITY(L)	2.5	3.5	5.5	5.5
FUEL CONSUMPTION  (g/hp-hour)	285	283	280	280
ENGINE OIL CAPACITY(L)	0.8	1.1	1.65	1.65
POWER-TAKE-OFF	Crankshaft
DIMENSIONS(L*W*H)(mm)	420*380*470	480*460*520	500*475*555	500*475*555
20UNIT	390	248	176	176
MOQ	390	248	176	176
