High precision 12V DC Motors,planetary gear motor dc 12v

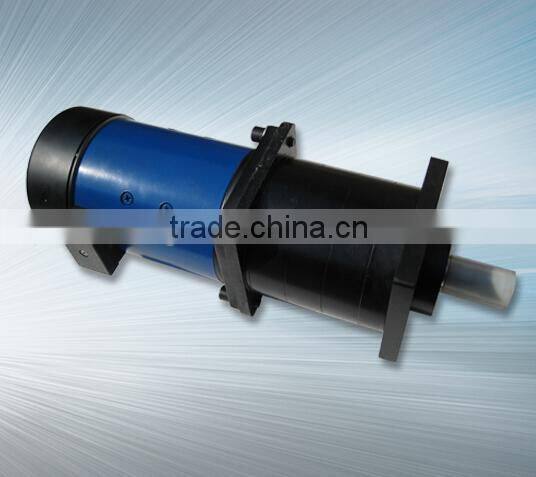

Product pictures:

Decription:

ZYT Series PM DC Motor
Summery
ZYT Series PM DC Motor is used with Ferrite PM Magnet, closure and self-cooling. It is used for driven element in any equipment system.
Model Explanation
90 ZYT08 /H1
1.90 indicates motor frame number; the frame number is indicated with 55, 70, and 90,110,130,its corresponds with frame Dia. 55, 70, 90,110,130mm
2.ZYZ indcates PM DC Motor.
3.08 indicates the lamination length No,.01-49 refers to short lamination types, 51-99 refers to long lamination types and 101-149 refers to special long lamination types.
4.H1 refers to derivative structure , its No, is indicated with H1,H2,H3…(Each frame No, is arranged on custemor ‘s requirement in order.)
3.Mounting Model
1.Housing Mounting: A5(single shaft extension),AA5(double shaft extension) and frame No,(55-130).
2.Flange Mounting:A3(single shaft extension),AA3(double shaft extension) and frame No,(55-130).
3.Foot Mounting: A1(single shaft extension),AA1(double shaft extension) and frame No,(90-130).
4.Usage
1.No more than 4000m above sea level.
2.Ambient temperature:-25degree~40 degree.
3.Relative humidity ≤95%(at +25 degree).
4.The followed temperature rise: no more than 75K(when 1000m above sea level).
5.Technical Data
The following data changes within range depending on exact model,customer can refer to them when making selection.

Package

Company introduce

Work Shop:

Process Of An Order:

1. Please check product detailed information above.

A. Model/Size   B. Transmission Ratio   C. Shaft Direction  D. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.

3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,

    then a sales contract will be sent to you to confirm.

4. Packing: Carton and Wooden Case.

5. How to delivery:

    By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

    By air - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)

    Others - We arrange to delivery goods to some place in China appoint by buyers.

Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
