Home > Construction & Decoration > Wire Mesh > Welded Wire Mesh > 1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack

Anping Fansi Metal Wire Mesh Factory
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-1
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-2
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-3
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-4
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-5
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack thumbnail-6
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-1
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-2
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-3
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-4
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-5
1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable Containers With Wire Rack photo-6
US$ 45.58 - 75.54 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FANSI
Model Number:
FS-SC-L-914
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xin'gang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name FANSI
Model Number FS-SC-L-914
Material Other, Galvanized Iron Wire, Galvanized Iron Wire, Q235 low carbon steel wire,stainless steel wire etc.
Type Other, storage cage
Application Cages
Hole Shape Square
Aperture 50x50mm
Wire Gauge 5.0mm,6.0mm

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack   :



1. Folding style storage cage:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



2.Storage cage specification:



Lightweight but durable
Capacity 800 kg
weight greatly reduced compared to a typical platform
bright zinc electroplated finish
Stackable
Media Trailers front door
Fully collapsible when not in use to reduce storage space



3.The storage cage material:Q235 low carbon steel wire,stainless steel wire etc.



1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



4. Storage cage characters:



(1)using the high quality cold-rolled steel welded by hardening



(2)high strength,and large load capacity.



(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.



(4)Surface galvanized, beautiful oxidation resistance and long service life



(5)Using international standards, and supporting the use of the container, effectively improve space utilization.



(6)It can stack each other four levels, realize the three-dimensional storage.



(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.



(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework



(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.



(10)The bottom can be installed wheels, factory internal flow is very convenient

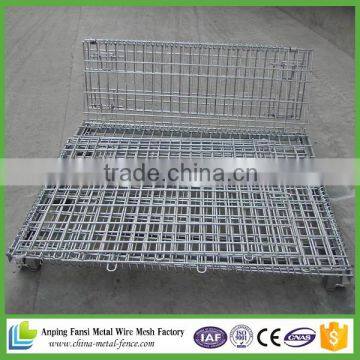

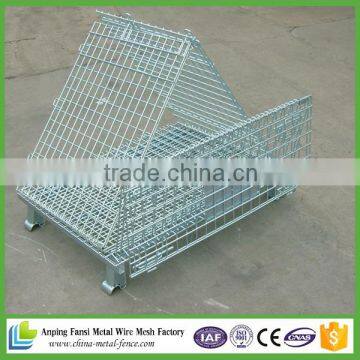

Folding illustrative picture

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



5. Technical:



Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production



6.Regular size:



stype

overoll size(mm)

Inner size(mm)

Volumn

wire diameter(mm)

Mesh(cm)

Weight(kg)

Max. loading (kg)

A-1

800*600*640

750*570*500

0.21

6.0

5*5

30

700

A-2

6.0

5*10

25

500

B-1

1000*800*840

950*770*500

0.51

6.0

5*5

47

1200

B-2

6.0

5*10

42

800

B-3

6.4

5*5

53

1500

B-4

6.4

5*10

46

1000

B-5

6.0

10*10

35

600

B-6

5.0

5*5

35

600

B-7

5.0

5*10

30

500

C-1

1200*1000*890

1150*970*750

0.83

6.0

5*5

65

1500

C-2

6.0

5*10

56

1000

C-3

6.4

5*5

73

2000

C-4

6.4

5*10

62

1200

C-5

6.0

10*10

46

1000

C-6

5.0

5*5

47

1000

C-7

5.0

5*10

40

800

D-1

800*500*540

750*470*400

0.14

6.0

5*5

26

600

D-2

6.0

5*10

21

400

E-1

1550*1120*990

1500*1090*850

1.39

6.0

5*5

84

1800

E-2

6.0

5*10

78

1500



7.Basic structure:



1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



8.The foldable type:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack

9.Storage cage



1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack

10.Packing:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



11.Warehouse:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



12.Ready for shipment:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



13. Loading container:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack



14 .Payment:

1200 mm (width) x 1000 mm (D) x 1000 mm (height) Stackable containers with wire rack

We accept the L/C, T/T, D/P, Western Union, MoneyGram, Paypal or Escrow



15.Shipping:



1. Delivery Term: FOB Tianjin
2. Parts can be arranged within 3 working days after the payment confirmed.
3. UPS/DHL/TNT/EMS/FedEx is optional, or other way customer appointed.
4. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
5. Any import fees or charges are the buyer's responsibility.
