W-section Hot Dip Galvanised 1.8m High Double Leaf Palisade Gate
- Tianjin Xin'gang
- T/T
You May Like
-
Hot Dip Galvanised W-section 1.8m High Double Leaf Steel Palisade Gate
-
Hot Dipped Galvanised Finish Steel Picket Sliding Gate
-
Metal Polymer Coating 2.4m High D Profile Powder Coated Palisade Fencing
-
Green Powder Coated W Section Steel China Palisade Fence
-
Hot Dipped Galvanized Steel Palisade Security Gate Fences
-
Plastic Coated Steel Security 2.75m Wide Standard Palisade Fencing
Product Details
| Place of Origin | Hebei, China | Brand Name | FANSI | |
| Model Number | FS-PF-L-721 | Frame Material | Metal | |
| Metal Type | Steel | Pressure Treated Wood Type | Heat Treated | |
| Frame Finishing | Not Coated | Feature | Easily Assembled, Eco Friendly, Rodent Proof, Rot Proof, Waterproof |
Product Description
Specifications
1. 1.8m high,2.75m wide2. D section 3.0mm thickness
3. 50*100mm post
4. Post height:2.325m
5. Rail:45 x 45 x 6
W-section hot dip galvanised 1.8m high double leaf palisade gate

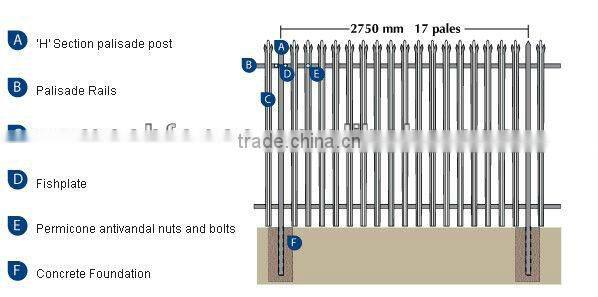

Palisade fence components:
There are a number of components that make up a steel palisade fence with some different options to choose from. Palisade fencing from Aaron is available in many different heights up to 3.6m. We supply the majority of our palisade fencing in runs of either 50m, 100m or 200m with all the component parts included.
Palisade pales:

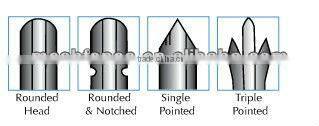

The ‘W' section is often preferred to the more traditional ‘D' section as it offers increased security as the fastener head is more concealed and therefore more difficult to tamper with. The ‘W' pale itself is a stonger more robust profile. We offer our palisade with a choice of heads:
Fishing and fittings:
We supply all our palisade galvanised to BS 729. You also have the option to polyester coat to a range of standard colours. some of these are shown below.
Our palisade fences are fixed using bolts and Permacone security fixings.
| Our palisade fences are fixed using bolts and Permacone security fixings. When fully tightened these fixings snap off to make them tamper proof | ![]() |
Size and specification:
Height above ground | Suggested Pale Thickness (mm) | Posts | Post Height | Rails | |
| Metres | 'D' Section | 'W' Section | |||
1.8 2.00 2.10 2.40 3.00 3.60 | 3.00 3.00 3.00 3.00 or 3.50 3.00 or 3.50 3.00 or 3.50 | 2.00 to 3.00 2.00 to 3.00 2.00 to 3.00 2.00 to 3.00 3.00 to 3.50 3.00 to 3.00 | 100 x 50 100 x 50 100 x 50 100 x 50 100 x 50 100 x 50 | 2.325m 2.725m 2.725m 3.125m 3.925m 4.725m | 45 x 45 x 6 45 x 45 x 6 45 x 45 x 6 50 x 50 x 6 50 x 50 x 6 65 x 50 x 6 |
Other Specification:
Posts - 100mm x 55mm RSJ or 102mm x 44mm RSJ or 127mm x 76mm RSJ depending on height of the fence. Posts installed at 2.75m centres.
Rails - Generally 50mm x 50mm x 6mm RSA - 2no per bay. 3no per bay in more secure areas.
Pales - 3mm thick ‘D’ section or 2mm thick ‘W’ section are the standard. The tops are generally
triple pointed or rounded and notched. 17no per 2.75m bay.
Fixings - M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts. M8 permacone nuts and bolts or 6mm anti vandal rivets connect the pales to the rails.
Finish - Galvanised to B.S EN ISO 1461 as standard. There is also a option for the fence to be Polyester Powder Coated to a colour or you choice.
1)Hot dipped galvanized
2) Polyester Powder Coated
Heights - Standard heights are 900mm (3ft), 1.2m (4ft), 1.5m (5ft), 1.8m (6ft), 2m (6ft 6), 2.1m (7ft), 2.4m (8ft), 2.75m (9ft) 3m (10ft) and 3.6m (12ft)
Gates - Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
