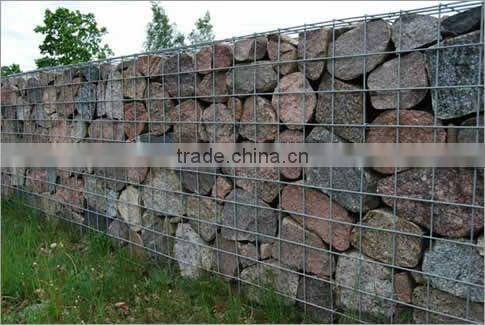

50*50mm mesh spacing pvc coated hexagonal gabion box

Specifications

1.Wire diameter: 3,0-4,0-5,0 mm
2.Mesh size:50-100 x 50-100 mm
3.Length= 50-100 cm
4.Width=50-200 cm
5.Height=50-100 cm

Infrastructure using 50*50mm mesh spacing gabion for Turkey market

Brief introduction:

DESCRIPTION :
Unique type of basket system filled with stones or sand used in erosion protection, security and other purposes of wall construction.

TECHNICAL SPECIFICATIONS :

• Gabion basket is made out of welded wire panels fixed with helix (spring).
• Wire diameters are 3,0-4,0-5,0 mm, mesh size is 50-100 x 50-100 mm Coatings are Hot Dipped Galvanized ( 120 – 500 gr/m2 Zn ), Galvan and/or Stainless Steel
• Sizes, Length= 50-100 cm, Width=50-200 cm, Height=50-100 cm

AREAS OF USE :

• Retaining Walls
• Creek Bed Control
• Infrastructure
• Erosion Control
• Landscaping
• Security Purposes

Detailed information:

1. Materials: Low carbon steel wire, stainless steel wire, electro galvanized wire, hot-galvanized wire, heavily galvanized wire, pvc-coated wire.

2. Weaving processing: twisted before galvanized, weaving after galvanized.

3. Available:

· Electro Galvanized before Weaving
· Electro Galvanized After Weaving

· Hot Dipped Galvanized before Weaving
· Hot Dipped Galvanized after Weaving
· PVC Coated Before or After Weaving

4.Uses: (1).Strengthen the slopes  (2).Gabion offers a unique way to protect against erosion and landslides.  (3).Gabion retaining walls are used for their flexibility, robustness and high drainage capacity. (4).The work of Gabion are considered to be a perfect solution in demanding geotechnical conditions, because you can easily assemble.
5. Roads and railways: Gabion is used where it is necessary to stabilize the road or rail. It is used primarily for the expansion or construction of roads on the slopes. Furthermore, in the construction of railway embankments, and so on. Another option is the use of Gabion noise barriers, where the effect is compared with soundproof concrete improved by selecting suitable plants.

6.Rivers:

Gabion provides clear advantages in the management of watercourses. Gabion works better than the concrete lining, which destroys any connection between water flow and its surrounding areas and prevents the growth of plants.

7.Specification:

8.Gabion Sizes:

Gabion types:

Weaving:

Welded:

10. Gabion Basket applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.

11. Gabion cage features:

1)An economy. Just a stone into a cage sealing
2) construction is simple, no special skills.
3)strong to withstand natural damage and corrosion resistance and resistance to adverse climate impacts.
4)Can withstand a wide range of deformation, but not collapse.
5) silt stones is conducive to plant production, and the natural environment as a whole.
6 )has a good permeability to prevent the damage caused by the hydrostatic
7)Save on shipping costs. Can be folded up and transport, assembly on site.

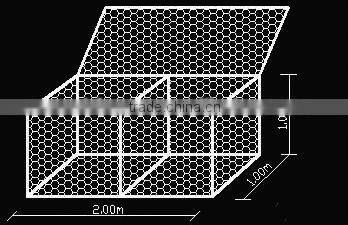

12.Gabion Box Sizes:
This Gabion Wall has been designed and constructed to retain the site boundary along the length of a new access road to a new industrial development. The gabions were filled with crushed concrete and faced with 6g stone fill.

Gabion walling is being used to construct an access track along the length of an existing train station. The access track will be used by a pilling rig that will be required to place new foundation when the existing station is demolished and the new railway station constructed. The gabion wall is constructed both sides of railway line and has to be constructed and backfilled in 4m lengths. This limits the chance of slipage to the embankment.

13.Working:

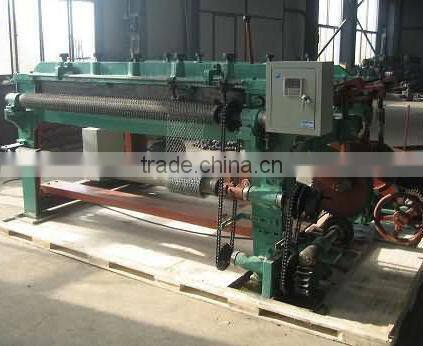

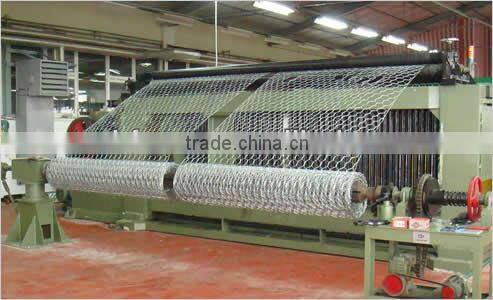

  14.Workshop:

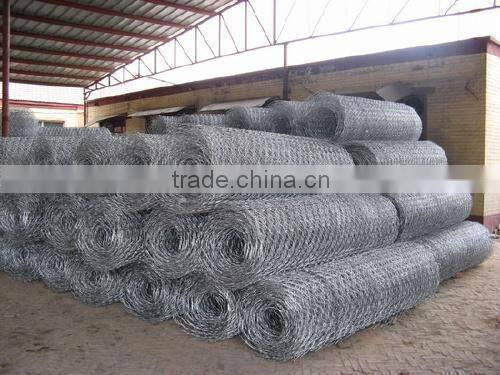

15.Warehouse:

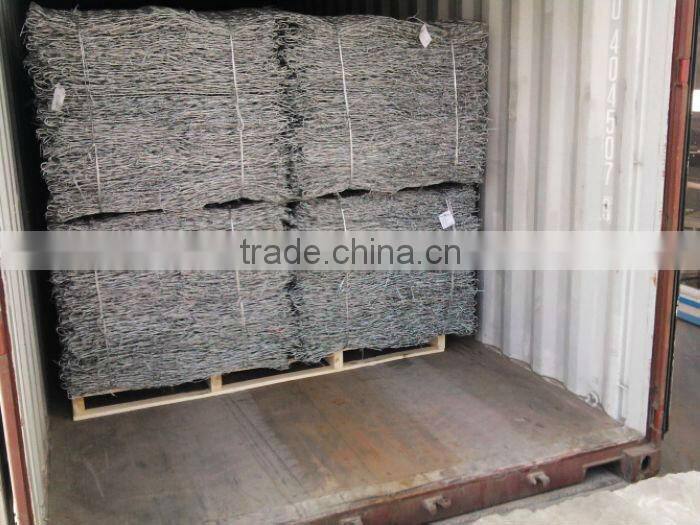

16.Loading:
