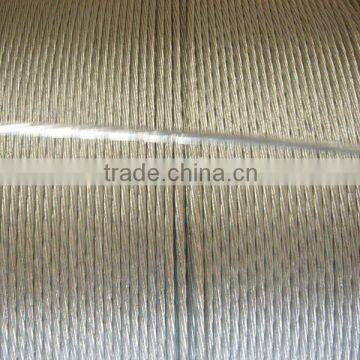

Hot-dipped Galvanized Strand Core for Cable Conductor
- XINGANG TIANJIN
- T/T
You May Like
Product Details
| Steel Grade | high and low carbon wire | Standard | ASTM | |
| Wire Gauge | 3.20-12.70mm | Place of Origin | China | |
| Type | Galvanized | Application | Other, Steel Wire Strand | |
| Alloy Or Not | Non-alloy | Model Number | ASTM, BS, YB | |
| Brand Name | GUTA |
Product Description
1. General introduction:
High-carbon raw material to satisfy or overpass the requirement of Min. breaking load. Hot-dipped galvanizing line to guarantee heavy zinc weight requirement. Full-type stranding machines not only cover the size range from 3.20mm(1/8 inch) to 12.7mm(1/2 inch), but also makes the single wire tighly stranded, not get loosen at cutting area, clean and smooth surface.
2. Specifications:
(1).
STRUCTURE | STRAND SIZE RANGE/mm | SINGLE WIRE SIZE RANGE/mm | MIN.BREAKING LOAD/Mpa | NOMINAL WEIGHT/100m | |||
1*3 | 6.20 -- 8.60 | 2.90 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 16.49 -- 31.38 |
1*7 | 3.00 -- 12.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 4.58 -- 73.22 |
1*19 | 5.00 -- 20.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 12.42 -- 198.76 |
1*37 | 7.00 -- 28.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 24.19 -- 387.06 |
ZINC WEIGHT: 100g/m2 -- 270g/m2 | |||||||
(2). ASTM-A475 from 1/8` to 1/2` , All Min. breaking load grade from utility grade to EHS. Structure 1*3, 1*7 and 1*19, Coating Class A & B. BS183&443, AS1222-1,IEC60-888
Q: Are you a manufacturer or merely a trader?
A: CHUNYUAN is a manufacturer specialized in steel wire & rod, so we can provide factory price/ the cheap price for you.
Welcome to visit our factory at any time when you are available.
Q: How long has your factory been founded?
A: TianJin ChunYuan Wire Product Co.Ltd, founded in the year of 1995, reformed and re-constructed from a well-reputed state-owned factory with a history of more than half a century. We are one of the leading company in the wire industry in China with clients all over the world. Now we are looking forward to the further co-operationwith you.
Q: May I have your catalog and price list for trial order in MOQ quantity?
A: Almost all our products are shown on Alibaba here. If you can not find it please do not hesitate to contact us by online "chat now" or browse our web site for more details. Welcome your inquiry by email,phone,fax,skype etc. Promise quotation will be sent in 1 working day.
Q: How do you guarantee the quality of your product?
A: Every process will be checked by responsible QC which ensures every product's quality. Quality management system ISO9001 attached.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as specifications,Item Number, Quantity for each item, Quality request, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q: May I buy 1 ton for a trial order?
A: If the size you need we have stock, we can offer 1 ton even less for your test.
Q: Any other additional explanations of your factory?
A: Free samples can be provided as your requirements. Professional packaging teams keep every packing well and safety. We supply 100% satisfied after-sale service. Promise 100% Refund or re-production owing to our products' quality problem.
