Hot-dipped Galvanized Stay Wire Strand
- TIANJIN XINGANG
- T/T
You May Like
Product Details
| Steel Grade | high carbon steel rod | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 3.2mm to 12.7mm | Place of Origin | Tianjin, China | |
| Type | Galvanized | Application | Construction | |
| Alloy Or Not | Non-alloy | Model Number | ASTM A475-3 | |
| Brand Name | GUTA |
Product Description

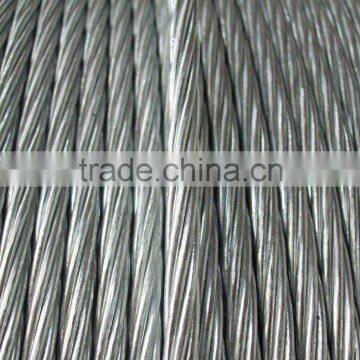

hot-dipped galvanized stay wire strand
1. General introduction:
High-carbon raw material to satisfy or overpass the requirement of Min. breaking load. Hot-dipped galvanizing line to guarantee heavy zinc weight requirement. Full-type stranding machines not only cover the size range from 3.20mm(1/8 inch) to 12.7mm(1/2 inch), but also makes the single wire tighly stranded, not get loosen at cutting area, clean and smooth surface.
2. Specifications:
(1).
STRUCTURE | STRAND SIZE RANGE /mm | SINGLE WIRE SIZE RANGE/mm | MIN.BREAKING LOAD /Mpa | NOMINAL WEIGHT /100m | |||
1*3 | 6.20 -- 8.60 | 2.90 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 16.49 -- 31.38 |
1*7 | 3.00 -- 12.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 4.58 -- 73.22 |
1*19 | 5.00 -- 20.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 12.42 -- 198.76 |
1*37 | 7.00 -- 28.00 | 1.00 -- 4.00 | 1270 | 1370 | 1470 | 1570 | 24.19 -- 387.06 |
ZINC WEIGHT: 100g/m2 -- 270g/m2 | |||||||
(2). ASTM-A475 from 1/8` to 1/2` , All Min. breaking load grade from utility grade to EHS. Structure 1*3, 1*7 and 1*19, Coating Class A & B.
(3). BS, YBT standard subject to buyers requiremen
