200W Cheap Solar Panel With TUV

FOB Price

US$ 0.6 - 0.73 / Watt

1000 Watts(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

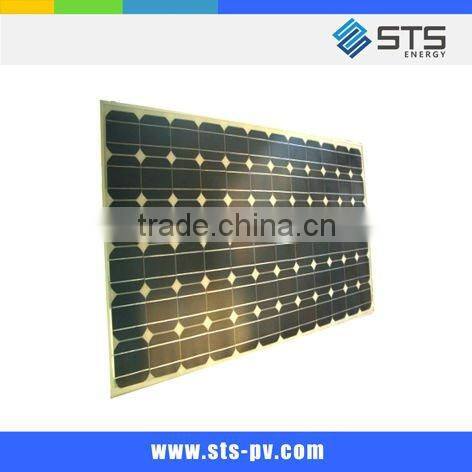

200W cheap solar panel with TUV

Efficiency 200W solar panel

1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.

2. High efficient, high reliable solar cells ensure our product output stability.

Benefits of solar panel

1. Manufactured in an ISO9001:2008 certified plant

2. High efficiency, high safety, high reliability

3. Output power tolerance of +/-3%

Warranty

1. 10-years limited warranty on materials and workmanship

2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%

Specifications of solar panel

Model Type	STS-6M-200M-48
Peak power	200W
Cell type	Mono Crystalline Silicon,156×156mm
Number of cells	48 cells in series
Weight	16kg
Dimensions	132699040mm
Maximum power voltage(Vmp)	23.9V
Maximum power current(Imp)	8.37A
Open circuit voltage(Voc)	29V
Short circuit current(Isc)	9.08A
Maximum system voltage	DC 1000V
Temp.Coeff.of Isc(TK Isc)	+0.036%/°C
Temp.Coeff.of Voc(TK Voc)	-0.33%/°C
Temp.Coeff.of Pmax(TK Pmax)	-0.47%/°C
Normal Operating Cell Temperature	45±2°c

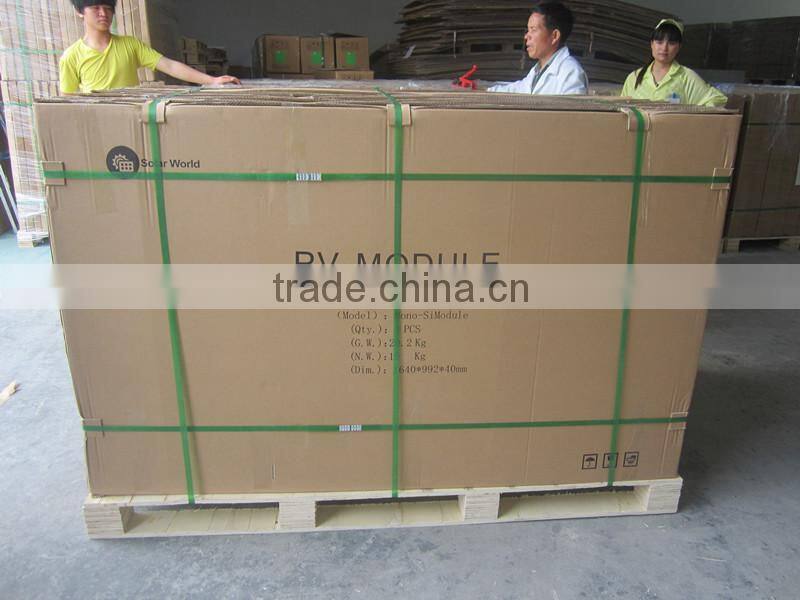

Packaging & Shipping

Carton box, loaded on pallet or wooden case.

Our Services

1.Reply your inquiry in 24 working hours

2.Customized design is available, OEM is welcomed

3.Delivery the goods to our customer all over the world with speed and precision

4.Offer the customer the lowest price with high quality solar modules

Zhejiang Jingshang New Energy Technology Inc.: Contact namelibby zhou
Chat Now; Phone86-572-3070271; AddressShiyuan West Road, Nanxun Industrial Park, Huzhou, Zhejiang
