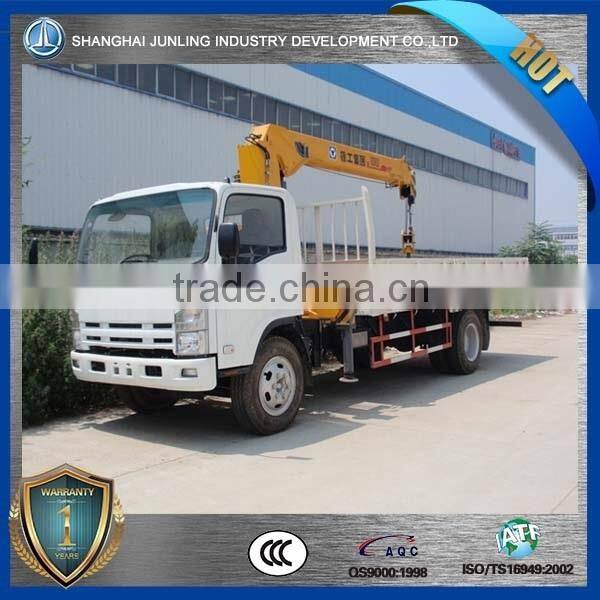

Middle Telescopic Boom Truck Crane 422B With 12 Ton Lifting Capacity

Name: Middle Telescopic Boom Truck Crane 422B With 12 Ton Lifting Capacity
Brand: HIAB
SKU: 103522303
Availability: InStock

Shanghai Junling Industry Development Co., Ltd. Gold Verified Supplier

5Yrs

US$ 28,000 - 40,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

construction,agriculture,forestry,railway,ports,roads,electricity...

Rated Loading Capacity:

740kg

Payment & Shipping

Payment Methods:

Port of Shipment:

Any main port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction,agriculture,forestry,railway,ports,roads,electricity...

Rated Loading Capacity 740kg

Rated Lifting Moment all

Max. Lifting Load 3400kg

Max. Lifting Height 3m to 10m

Span all

Place of Origin Finland

Brand Name HIAB

Model Number 422EP

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

1. Crane truck Specification

			NQR CRANE TRUCK
DIMENSION
Overall dimension	OL x OW x OH	mm	6600 x 2170 x 2410
Front-rear tread	AL	mm	1680/1650
Wheel base	WB	mm	4175
Ground Clearance	HH	mm	190
BODY DIMENSION
Overall dimension	OL x OW x OH	mm	4200 x 2120 x 380
Body Thickness		mm	Side: 3 Floor: 4
WEIGHT
Gross vehicle weight		kg	9410
Curb weight		kg	3980
Payload		kg	5420
Fuel tank capacity		L	100
Seat capacity			3
ENGINE / TRANSMISSION
Engine model			4HK1-TCG40
Engine Type			Diesel, 4 Cylinder, Direct injection, turbo, intercooled, high pressure, Commonrail
Piston Displacement		cc	5193
Max. output		Ps/rpm	190
Max. torque		Nm/rpm	510
Transmission model			MLD-6Q
BASIC SYSTEMS
Steering system			Power steering wheel
Brake system			Hydraulic dual circuit
Tire			8.25-16
Battery			12V
Alternator			24V 50A
Air condition			Available
