Techno High Speed Mixer/Plastic Mixer/Turbo Mixer
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Plastic Field High Speed Mixer | |
| Automatic Grade | Automatic | Production Capacity | 100-2200kg/h | |
| Place of Origin | Jiangsu, China | Brand Name | Techno Brand High Speed Mixer | |
| Model Number | SRL-Z/SRL-W High Speed Mixer | Voltage | 220-480V | |
| Power(W) | 22-220KW | Dimension(L*W*H) | 3500X2200X2500 | |
| Weight | 3000kgs | Certification | CE ISO | |
| Warranty | 12 Months Warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

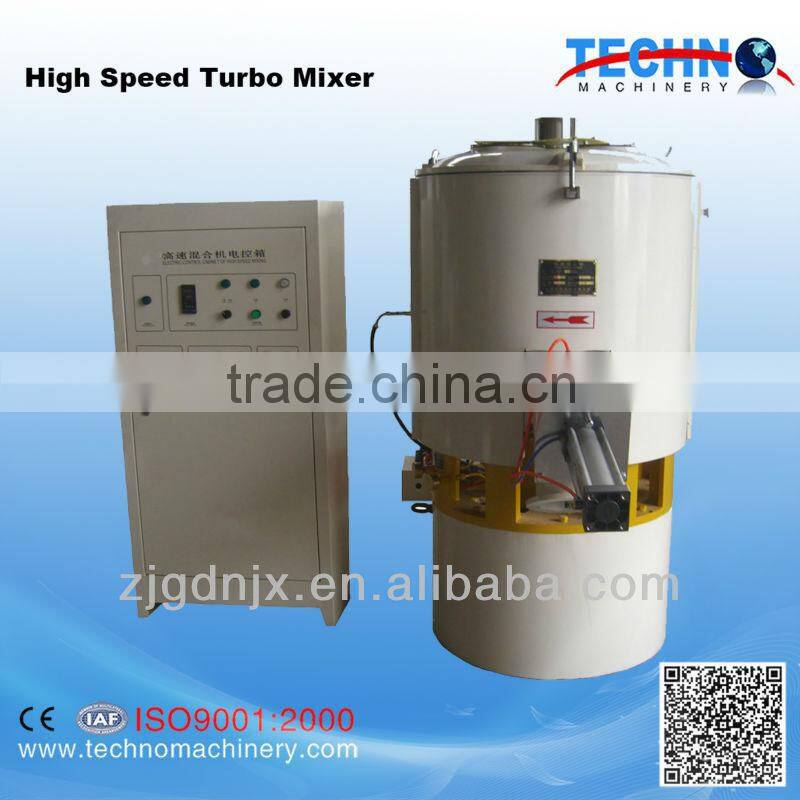

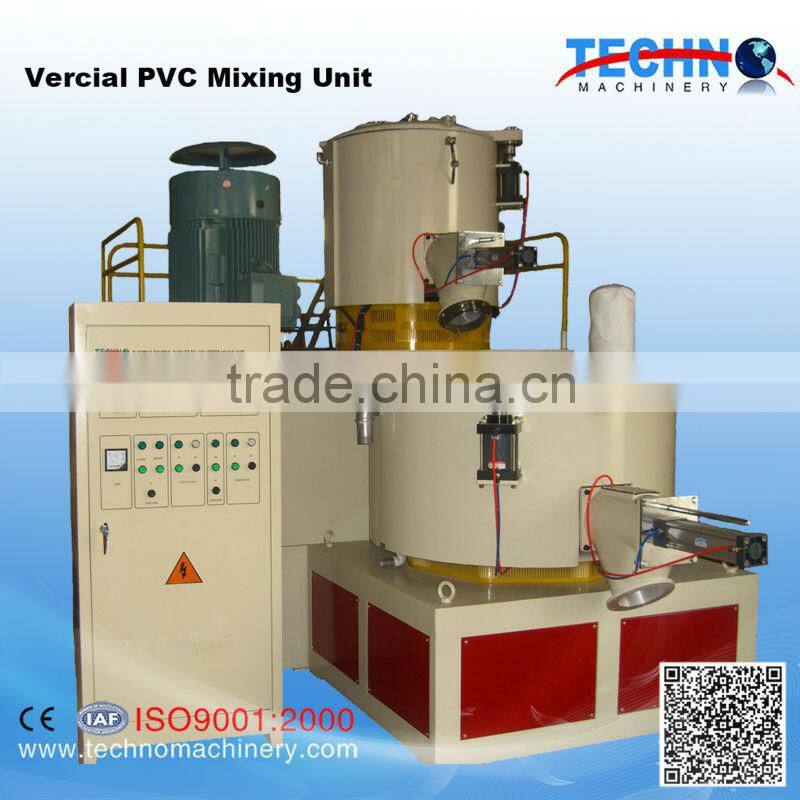

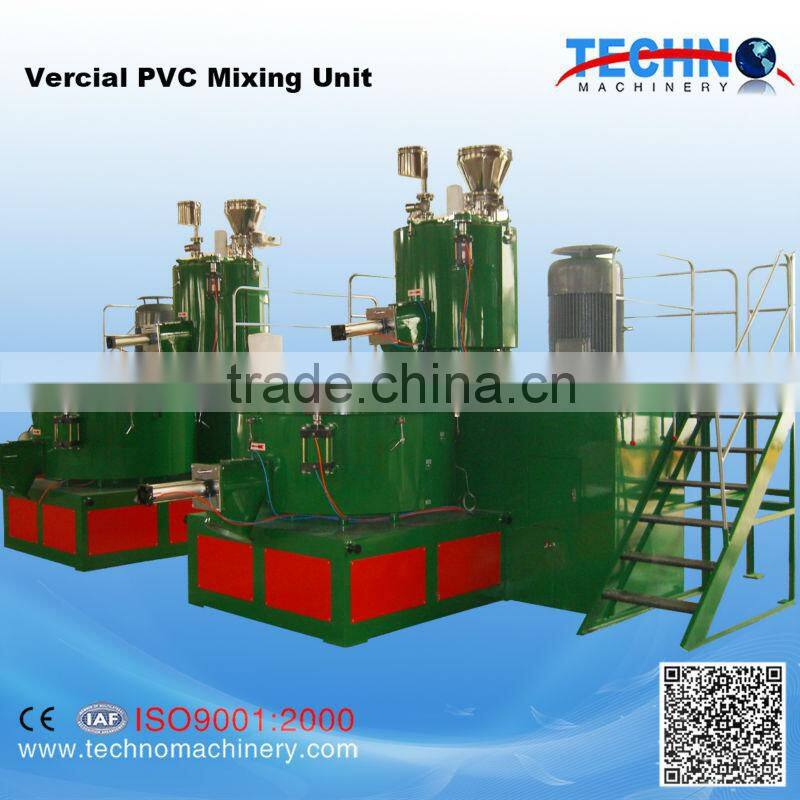

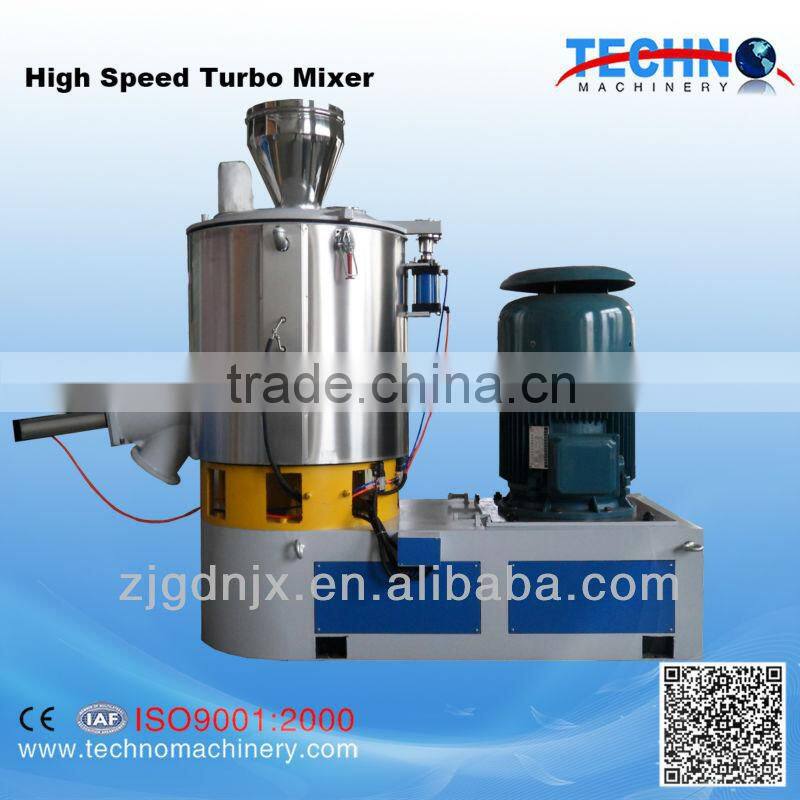

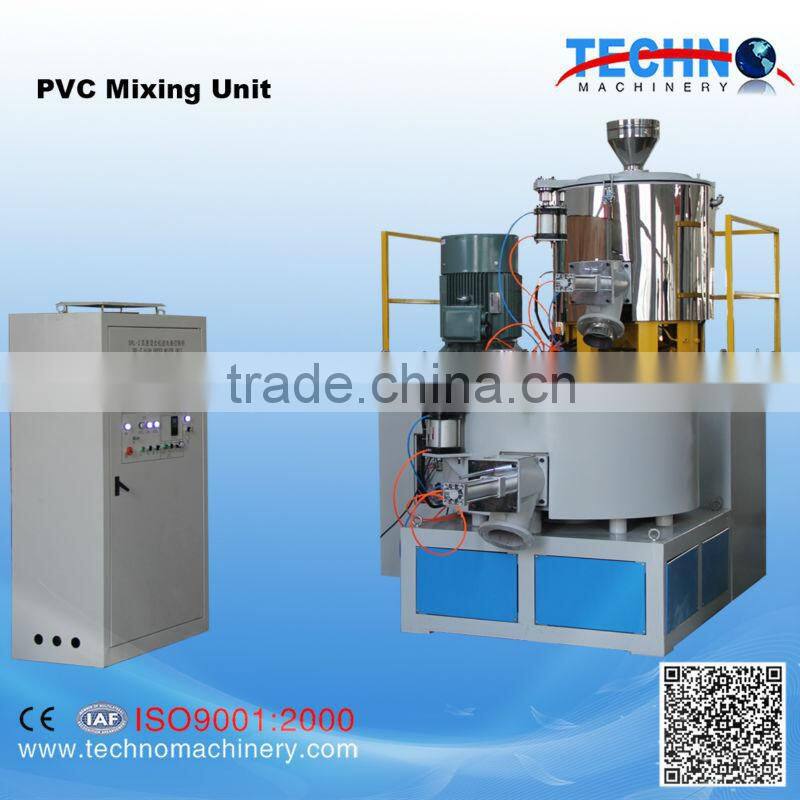

High Speed Mixer/Plastic Mixer/Turbo Mixer
High Speed Mixer Feautres
In a High Speed Mixer, the heat generated due to friction is utilised for mixing, hence it's known as "Heater Mixer". High Speed Mixer is used to mix solid to solid, liquid and pasty components. The Heating Phase in a heater mixer_it is not only the shortest possible cycle time which is the decisive factor, but many cases, the way in which friction is intruduced into the product is of far greater importance
The hot mixture should be cooled subsequently in " Cooler mixer" in order to keep it in a free flow condition, suitable to storage, transportation and subsequent treatment. Also helps in case of PVC dryblend staticfree, heat stablilized and stressfree compound. The cooling phase-a large number of additional process steps are require. Good heat transfer co-efficients, necessary for obtaining short cooling times are essential for high throughput capacities. Mixing and sdispersing processes and also de-agglomeration are frequently of equal importance as factors concerning the handling of the machines.
High Speed Mixer & Coole
1. SRL-W High Speed Mixer & Horizontal Cooler Technical Table
SRL-W | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
Total volume(L) | 300/1000 | 500/1500 | 800/2000 | 1000/3000 | 800*2/4000 |
Effective volume(L) | 225/700 | 330/1000 | 600/1500 | 700/2100 | 1200/2700 |
Stirring speed(rpm) | 475/950/80 | 430/860/70 | 370/740/60 | 300/600/50 | 350/700/65 |
Mixing time(min) | 8-12 | 8-15 | 8-15 | 8-15 | 8-15 |
Power(KW) | 40/55/7.5 | 55/75/15 | 83/110/22 | 110/160/30 | 83/110*2/30 |
Weight (kg) | 3300 | 4200 | 5500 | 6500 | 8000 |
