PVC Wire Trunking Machine
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Condition | New | Application | Profile | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | YF | |
| Voltage | 220-480V | Power(W) | 20-220KW | |
| Dimension(L*W*H) | L24000*W1800*H2200mm | Weight | 20000KGS | |
| Certification | CE/ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PVC Cable Trunk Production Line
PVC Wire Trunking Machine
Product Processing Flow:
Raw material+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating bath → Belt haul off → Cutter → Tilting stacker → Finished product inspecting and packing

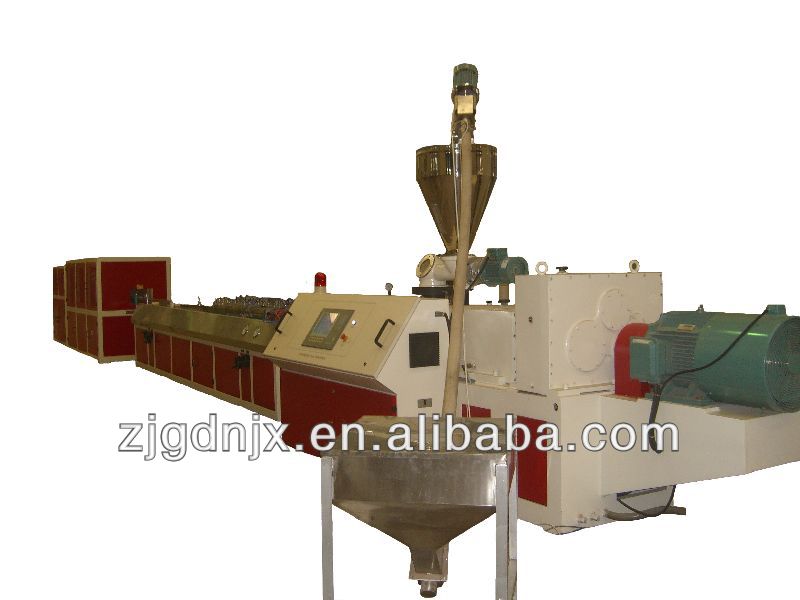

The Whole Production Line of PVC Wire Trunking Machine
Features of PVC Cable Trunk Extrusion Line:
PVC Wire Trunking Machine
1. Normally PVC Cable Trunk Production Line uses SJSZ-51/105 or 65/132 Conical Twin Screw Extruder to produce double trunk or single trunk,and the specification refers to client's requirement.
2. This extrusion line also can manufacture other customized shapes of PVC profiles.
3. If change to single screw extruder, this line can make PE, PP, ABS profile.
Technical Parameters:
PVC Wire Trunking Machine
Model | Product dimension (w×h)mm | Extruder model | output(kg/h) | Max speed (m/min) | Install power (kw) | Main motor power(KW) | Length of line(m) |
SJYF-180 | 180×60 | SJSZ51/105 | 80-120 | 6 | 55 | 22 | 23 |
SJYF-240 | 240×120 | SJSZ65/132 | 140-180 | 4 | 76 | 37 | 27 |
The Machine Unit:
PVC Wire Trunking Machine
Name | Quantity |
Automatic loader | 1 set |
SJZ51, SJZ65 conical twin screw extruder | 1 set |
Mould and calibrating | 1 set |
Vacuum calibrating table | 1 set |
Haul off machine | 1 set |
Printer | 1 set |
Synchro cutter | 1 set |
Tipping stacker | 1 set |
Other Necessary Equipment:
PVC Wire Trunking Machine
Name | Quantity |
SRL-Z type of hot/cooling mixer | 1 set |
crusher | 1 set |
Twin Screw Extruder for PVC Wire Trunking Machine

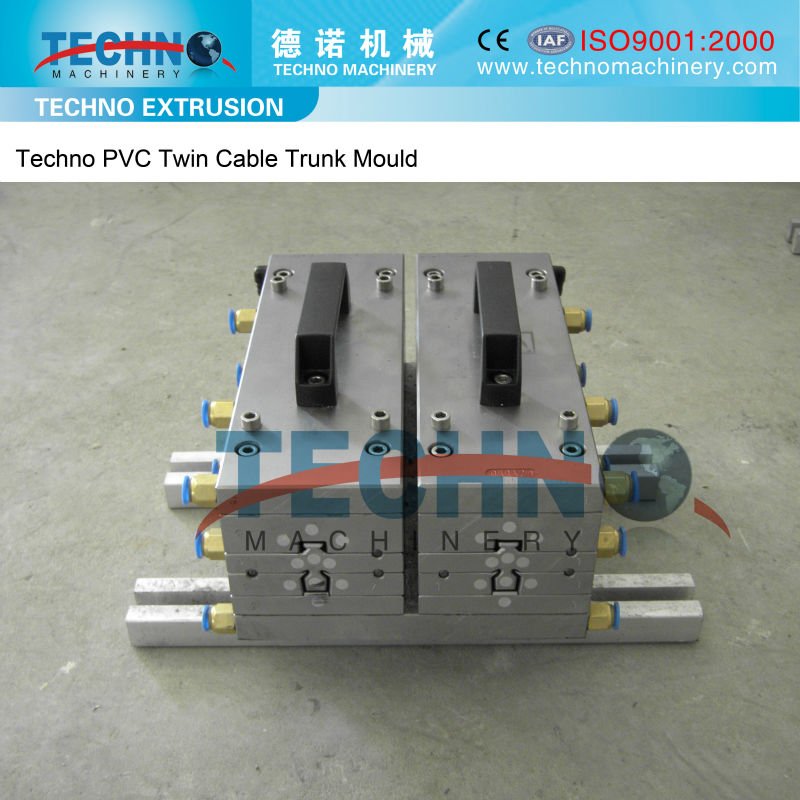

Double Cable Trunk Mould for PVC Wire Trunking Machine

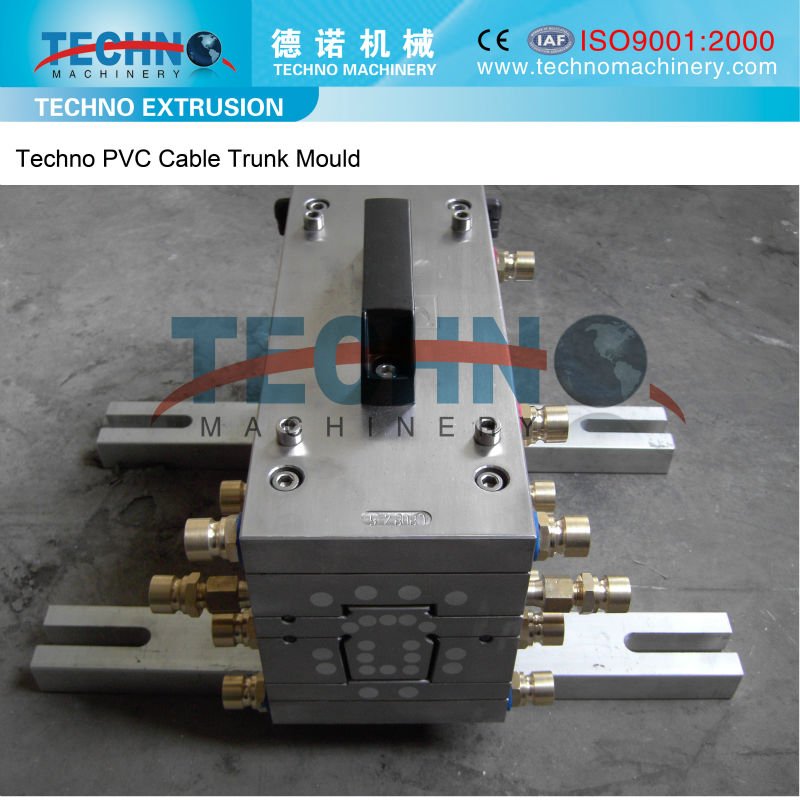

Single Cable Trunk Mould for PVC Wire Trunking Machine
Vacuum Calibrating Table for PVC Wire Trunking Machine
Haul-off and Cutter Unit for PVC Wire Trunking Machine
Tilting Stacker for PVC Wire Trunking Machine

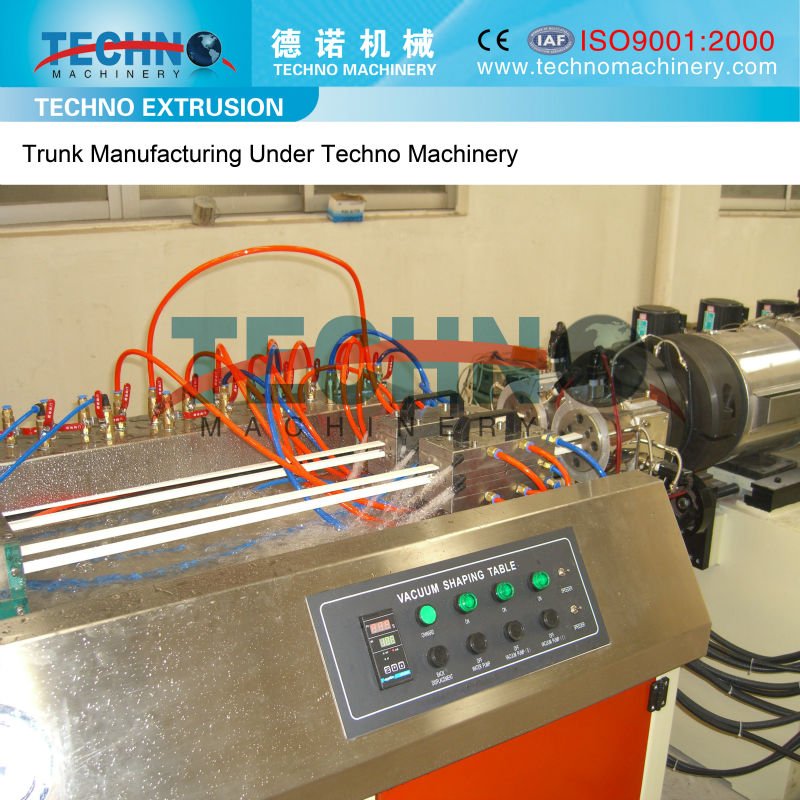

Cable trunk Manufacturing for PVC Wire Trunking Machine
