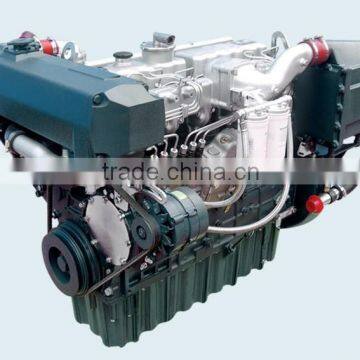

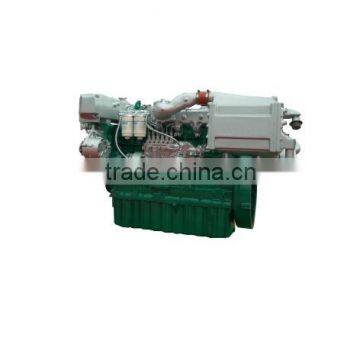

diesel engine marine propulsion 180HP

Specifications

1.Yuchai marine engine adopting the technology of FEV,Germany;
2.Chinese marine eng

Engine Feature:

1. This series diesel engine is developed by adopting the technology of FEV, Germany.

2. Cylinder block and cylinder head are made of alloy cast iron with high strength; crankshaft is made in a single piece; sliding bearing. Engine is compact in design, light on weight and with high reliable; overhaul life is more than 12,000 hours.

3. Intake system uses turbo-charging & inter-cooling technology. P type high-pressure injection pump and P type injector are provided in fuel system, contributing to excellent fuel efficency compared with products of the same power in China.

4. Yuchai particular piston ring sealing technology reduces oil consumption by more than 50% compared with products of the same power in China.

5. Engine is equipped with digital & intellectual machine-side & remote monitoring instruments to facilitate operation, monitoring & automatic protection while effectively ensure safe operation of engine.

6. It is used as the ideal main machine for powering speedboats, cargo ships and fishery vessels and so on.



YC6A Series technical parameter

Model	YC6108 ZLCB	YC6A 170C	YC6A 190C	YC6A 195C	YC6A 220C	YC6A 250-C20			YC6A 260-C20	YC6A 280-C20
Type	Vertical, in-line, water-cooled, four stroke
Intake way	Inter-cooled & turbo charging
No. of cylinders X Bore X Stroke(mm)	6×108×132
Displacement (L)	7.252
Compression ratio	17:1
Continuous power /speed (kW(Ps)/r/min)	112(152) /1500	125(170) /1500	140(190) /1800	145(197) /2300	162(220) /2300	183(250) /2200			191(260) /2300	206(280) /2500
One-hour power /speed (kW(Ps)/r/min)	123.2(168) /1548	137.5(187) /1548	154(209) /1858	159.5(217) /2374	178.2(242) /2374	201(282) /2270			210(286) /2374	227(309) /2580
Min. specific fuel consumption (g/kW·h)	≤198
Specific oil consumption (g/kW·h)	≤0.8
Crankshaft rotation direction (seen from power output end)	couterclockwise
Net weight (kg)	770							780
Overall dimensions (LxWxH)  (mm)	1415×910×1075						1430×900×980
Matched reduction gearbox	120C,135,MB242						120C
Certificaate	ZC,ZY,CCS,IMO

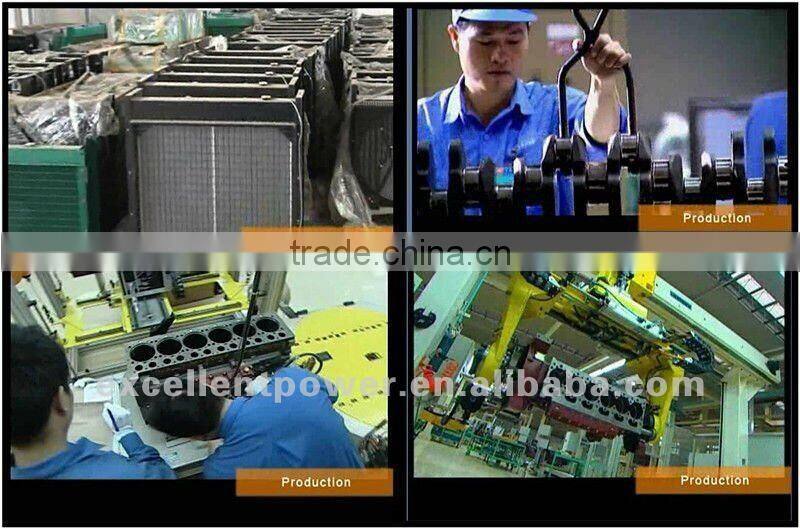

Production Process

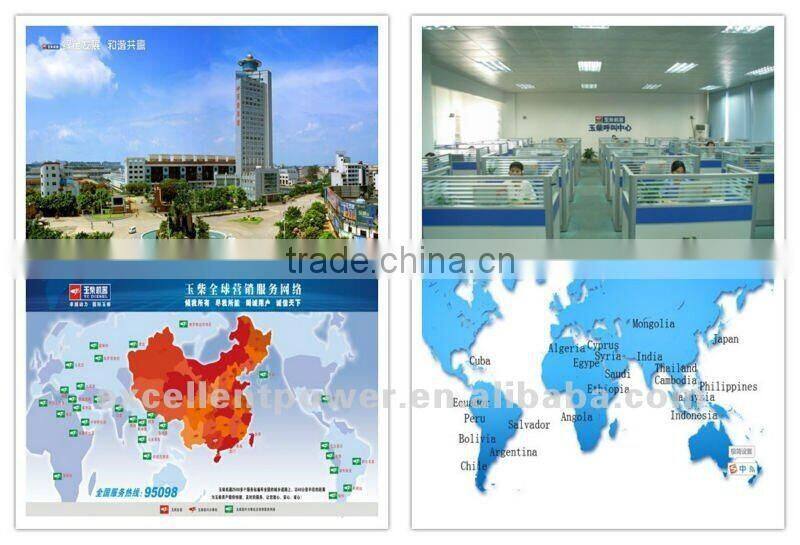

Factory & Global Service Network & Call center

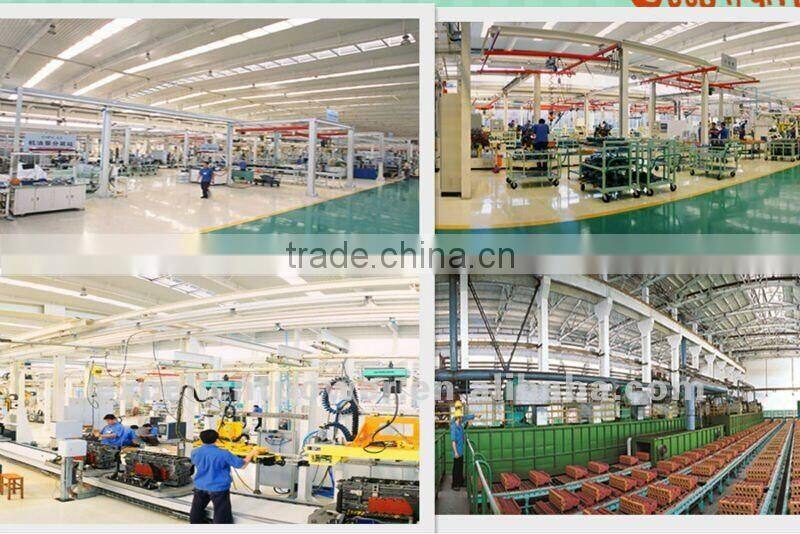

Workshop





Certificate
