Home > Products > Wall Mount LCD > Wall Mount 32 Inch Lcd Advertising Player

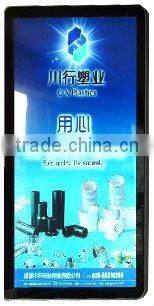

Wall Mount 32 Inch Lcd Advertising Player
US$ 10 - 100
/ Unit
1 Unit(Min. Order)
- shenzhen
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | USER(or OEM) | |
| Model Number | US-AD320LY | Type | TFT | |
| Application | Indoor | Panel Size | 32 inch | |
| Max Resolution | 1366x768 | Viewing Angle | 178°/178° | |
| Pixel Pitch | 0.51(H)*0.51(V) | Color | 16.7M | |
| Contrast Ratio | 16:9 | Brightness | 600 | |
| Response Time | 8ms | Input Voltage | 5W |
Product Description
Specifications
*with Samsung,LG,AU orginal lcd panel*SD/CF/3G/WIFI/LAN Network optional
*Easy handle software
*CE, FCC,UL,CCC,ISO9001
wall mount 32 inch lcd advertising player
| Specifications | ||||||||||
| Model No. | US-AD320LY | |||||||||
| Panel size | 32″TFT-LCD | |||||||||
| Display area(mm)/mode | 1044(W)×568(H) 16:9 | |||||||||
| Maximum resolution | 1366x768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.51(H)×0.51(V) | |||||||||
| Brightness (nits) | 600 | |||||||||
| Contrast | 1500:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 1(BNC×3) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC×3) | |||||||||
| S-video | 1(BNC×2) | |||||||||
| HDMI | 1 | |||||||||
| Composite video loop output | 1 | |||||||||
| L/R audio input | 1 ( RCA*2) | |||||||||
| L/R audio output | 1 ( RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | Special | |||||||||
| Ads input interfaces | ||||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1 | |||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G or WIFI Module | Included(Network version only) | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | 220W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 85% | |||||||||
| Storage humidity | 85% | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | wall-mounted or rack mounted | |||||||||
| Detail Features | ||||||||||
| Video format:MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | ||||||||||
| Audio format:Wave/MP3/WMA/AAC | ||||||||||
| Image format:JPEG/BMP/TIFF/PNG/GIF | ||||||||||
| Image resolution:480P/720P | ||||||||||
Play mode:Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc | ||||||||||
| Time:year/month/day/week/h/m/s, in the top right corner (open and close optional) | ||||||||||
| Timing open & close:Per day 5 times, 7 days a week, free time | ||||||||||
| Timing play:7 days a week, free set the play program everyday | ||||||||||
| Alarm clock:Set 5 alarms one day, once ring the alarm, play the specified program | ||||||||||
| OTG:Support copy, delete, remove, rename, build new file among different cards | ||||||||||
| Running subtitle:Can set the play location, word size, color and back-color | ||||||||||
| Log files:Record the play time (concise to second), the play contents | ||||||||||
Angle subscript display function:Can set the play time, just support BMP picture with biggest resolution 160*90 | ||||||||||
Memory function:Power off, memory the time of the play; power on, play from the time, not from beginning | ||||||||||
| Key and lock function:Use the remote controller before input the keyword | ||||||||||
| Encrypt CF card:Play the contents in the CF card before input the keyword | ||||||||||
| Sound volume:Can set the volume of sound in the different time | ||||||||||
| Storage card lock:Have a anti-theft lock in the case, equip 2 sets key | ||||||||||
| Other function:Customized | ||||||||||
| Upgrade software:Just put the upgrade file in the storage cards |
