Hydraulic Press Brake 20T1050

FOB Price

US$ 18,000 - 22,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	SC	Model Number	WH67K 20T1050
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Machining
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feature and Characters:

1. Overall structure:

This machine adopts welded steel plate; the frame consists of right and left wall boards, working table, oil box, slider, CNC control system, standard die. The main parts are stress relieving.

2. Feature and Advantages:

Advanced configuration, high precision ,high efficiency and low noise,suit for the small hardware. Efficiency and cost saving CNC hydraulic press brake;

Using Mitsubishi control system, the new product with highly special designed;

The machine has high accuracy and high strength; Y accuracy (±0.5⁰ );

Ram stroke (Y) and back gauge(X, R, Z)are controlled by controller;

Back gauge is adopted ball screw and rolling guide way, X accuracy (±0.05mm), R accuracy (±0.1mm), Z accuracy (±0.1mm);

A set of standard tools is provided with each machine;

The back door open the door machine adopt totally closed off, machine on both sides of the use of semi closed transparent protective power break;

Parameter

Specification	WH67K-20/1050
Norminal pressure	200KN
Length of table	1050mm
Distance between housing	1000mm
Throat depth	100mm
Stroke	150mm
Open Height	250mm
Main Motor Power	2.2KW
Overall dimension	1500×1200×2200mm
Weight	2.2TON

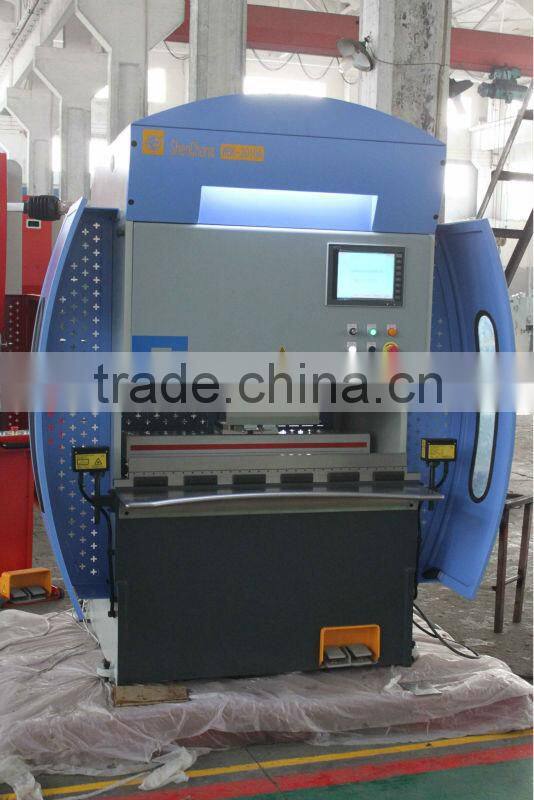

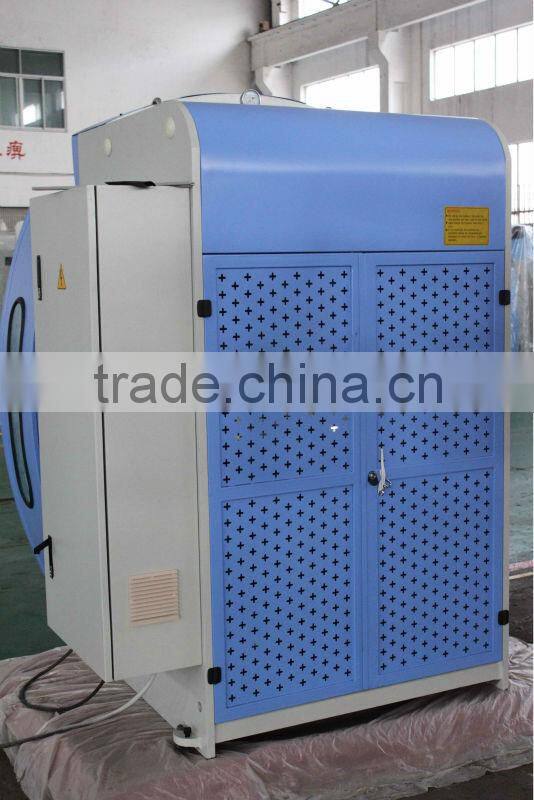

Detailed image
