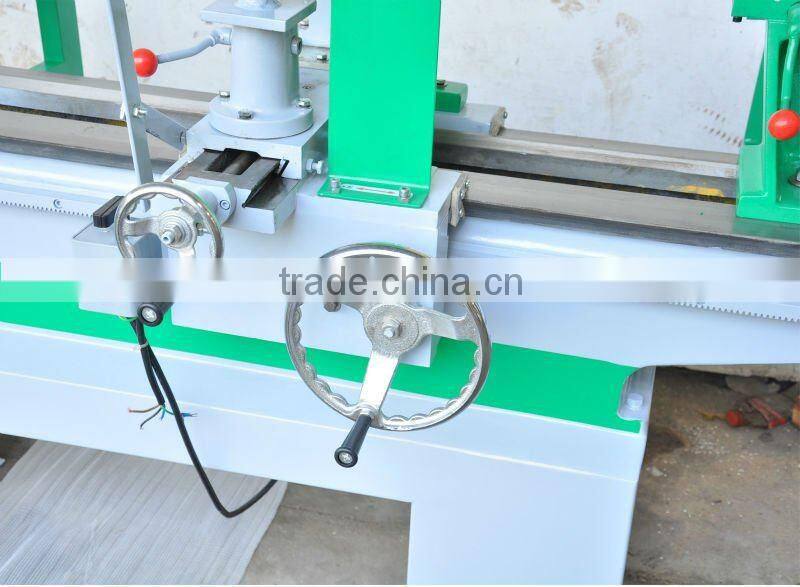

retro-rotary wood lathe MC3032X150
USE OF THE MACHINE

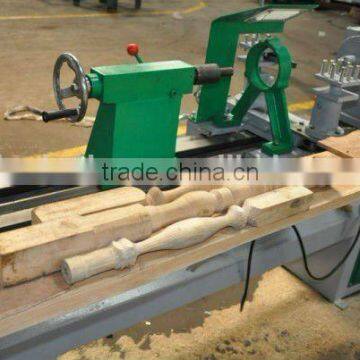

It is one of the common equipment that apply in furniture industry and wooden decorative art & craft industry.It mainly use in processing all kinds of shaping retro-rotary work-piece with template or copy shaper for example round bar,whorl pillar Rome pillar, crystal pillar,whorl wood line,wooden stair banister and the back of solid wood chair.
MAIN SPECIFICATION AND TECHNOLOGY PARAMETER
| Model | MC3032X100 | MC3032X150 | MC3032X200 |
| Max cutting length | 1000mm | 1500mm | 2000mm |
| Max cutting Dia. | 320mm | 320mm | 420mm |
| Rotary speed of main arbor | 750,1250,1750,2250r/min | ||
Motor power / Voltage frequency | 2.2kw(3HP) / 380V 50Hz | ||
| Weight of machine | 480kg | 530kg | 750kg |
| Overall dimensions (L×W×H) | 2100×950×1250mm | 2600×950×1250mm | 3200×950×1450mm |
Feature:
1.main frame made of cast iron with fine aseismic performance and wearing quality
2.stable running,working exactly
3.It mainly use in processing all kinds of shaping retro-rotary work-piece with template or copy shaper
4.the guide shaft applies swallow-tail guide rail to obtain the high straightness
5.high speed and convenience
