Home > Products > Sliding Table Saw > Efficient Sliding Table Saw MJQ6132D

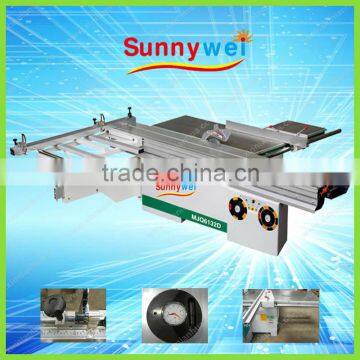

Efficient Sliding Table Saw MJQ6132D
- 500 Set / Sets per Month
- Shunde/Guangzhou/Shenzhen/Hongkong
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Sliding Table Saw, Table panel saw, woodworking table saw | |
| Use | Other, Woodworking, woodworking/any material working | Style | Horizontal | |
| Place of Origin | Guangdong, China | Brand Name | Xinnianhua/ Sunnywei | |
| Model Number | MJQ6132D | Usage | Wood Cutting | |
| Voltage | 380v 50 hz 3ph | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 3450*3080*1150mm | Weight | 950kg | |
| Certification | CQC |
Product Description
Specifications
Sliding Table Sawcessing length:3200mm
2.sawblade tilted 45 degree
3."4"cylindrical steel guide
4.power:5.5kw
Efficient Sliding Table Saw MJQ6132D
USE AND APPLICABILITY RANGE OF THE MACHINE:
The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
MAIN SPECIFICATION AND TECHINOLOGY PARAMETER MJQ6132D
Slide worktable max distance | 3400mm |
Max processing length | 3220mm |
Max processing thickness | 65mm |
Main saw blade dimension(max) | Φ305×Φ30mm |
Groove- saw blade dimension | Φ120×Φ22mm |
Main saw arbor rotary speed | 4000,5000r/min |
Groove- saw arbor rotary speed | 8600r/min |
Main electronic motor power | /5.5KW(7.4HP)/380V 50HZ |
Groove-electronic motor power | 0.75kw(1HP) |
Weight of machine | 950kg |
Overall dimension(L×W×H) | 3450×3080×1150mm |
Dust-collecting mouth external diameter | Φ100mm(4") |
45°tilting max sawing thickness 55mm
Strengths:
1.steel bearing double-slide,copper pulley structure with high precision ,the error of straigthness on whole distance of travel is less than 0.15mm
2.high quality of the spindle bearing and lifting system
3.movable slide worktable ,high precision
4."4" cylindrical steel guide
5.sawblade titled 45 degree
6.self-developed high quality saw blade,glossy,neat
7.quality bearing with long working life, 4 years at least
8.our patent products, super quality
9.body made with excellent steel plate jointing
