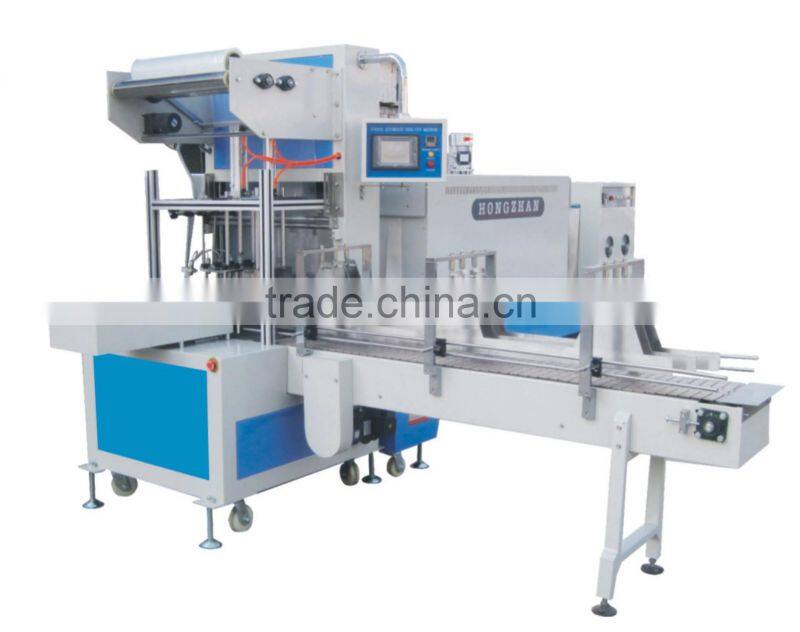

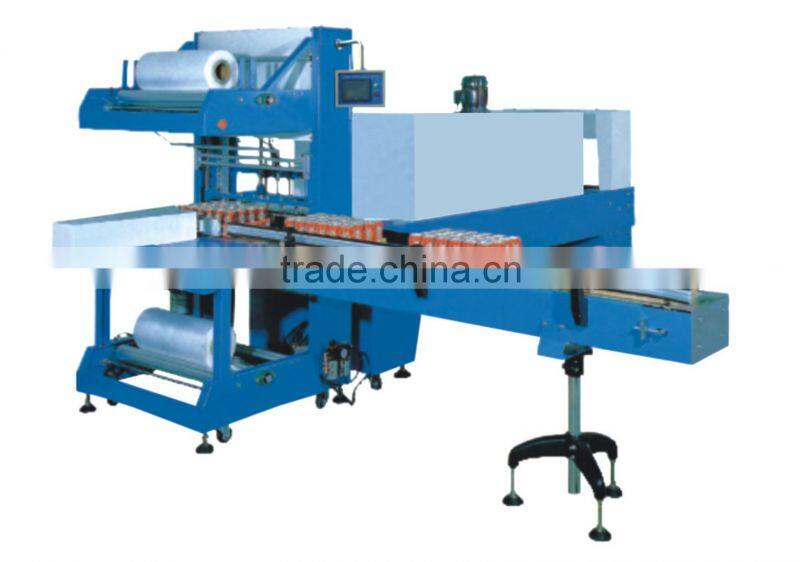

Automatic Sealing and Shrinking Packge Machine
- Ningbo/Shanghai
- T/T Money Gram
You May Like
-
2 IN 1 SHRINK PACKING MACHINE
-
SHRINK PACKING MACHINE WITH SEALING/CUTING/SHRINKING
-
Automatic KFV-320 Vacuum Forming and Packing Machine
-
DZ 600/2SB Double Vacuum Chamber Packing Machine
-
JOIE JEV-280L Automatic Sachet Water Filling Packaging Machine Manufacture Price
-
JOIE JEV-280L Automatic Sachet Sauce Filling Packaging Machine Manufacture Price
Product Details
| Application | Food, Beverage | Packaging Type | Film | |
| Packaging Material | Plastic | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 220V | |
| Power | 2KW | Place of Origin | Zhejiang, China | |
| Brand Name | JOIE | Model Number | ST6030AH/ST6030AF | |
| Dimension(L*W*H) | 2500*1430*2100 | Weight | 400kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Large contraction packaging2.Suitable for PE,PVC,P0F
3.Stainless steel heating electric heating tube
4.Speed, long service
This set of equipment adopts foreign advanced technology. The main fittings adopt foreign well-known brands, such as omron, ShiKe, panasonic, mitsubishi, etc
feature
1. Automatic counting, the whole column, carry feed, seal, and cooperate with the constant temperature PE shrinking machine, etc. The process of automatic packing machine
2. Large contraction packing materials, also can in a short period of time to completely contraction, after packing clean and tidy appearance, compact and convenient pallet, guarantee the quality of products and the need of long-distance
transportation .
3. Fluctuation of transport systems and large wind cooling system, is the product immediately after the thermal contraction after heating, make sure disposable perfect packaging effect.
Technical parameters
| ST6030AF SEALING MACHINE | SM6540 Shrinking tunnel | |
| Horizonta Height and length of infeed Conveyor | 850 ± 50mm/2000mm | 850 ± 50mm/2000mm |
| Max packing dimension(mm) | L500 x W300 x H300 | W650 x H400 x LUnlimited |
| Minium packing size | 280 x 100x 100mm | 280 x 100x 100mm |
| Packing Speed | 8-12pcs/minute | 15m/min |
| Voltage | 220V/50Hz | 380V/50HZ |
| Rated Power | 2KW | 24KW |
| Sealing time/Shrink time/Temperature | 0.5-1.58/0-0.68/0-250^ | 0.5-1.58/0-0.68/0-250^ |
| Width/Thickness of the Film | MAx600mm/0.04-0.12mm | MAx600mm/0.04-0.12mm |
| Dimension | L2750 x W1530 x H 1970mm | L3200 x W950 x H1580mm |
| Gross weight | 600kg | 400kg |
| Air pressure of working | 4-8Mpa | 4-8Mpa |
| Shrink film | PE POF PVC | PE POF PVC |

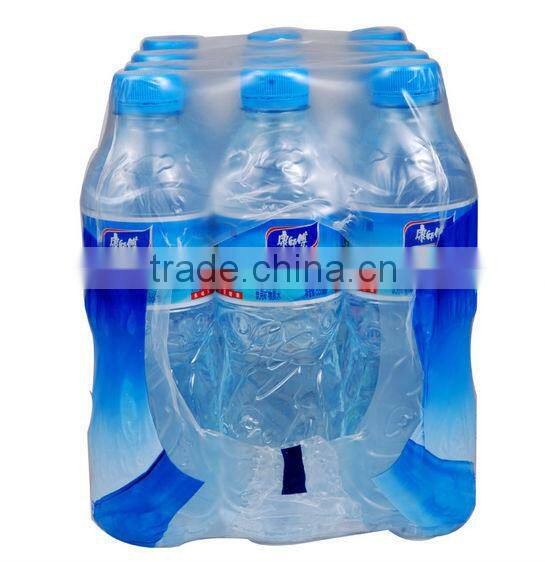

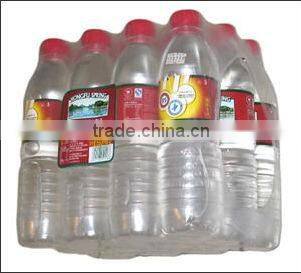

Range of application :
Cans, glass bottles, beer, mineral water and so on large quantities of automatic shrink packaging items, colleagues can also be used for wood, steel, ceramics, home appliances, computers and so on all walks of life.
