Falling Crucible Furnace SSJL-1700

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SIOMM		Model Number	SSJL-1700
Place of Origin	Shanghai, China

Product Description

Specifications

1)Best value falling crucible furnace
2) CE, ISO9001 certificate
3) 100% Chinese manufactruer, factory direct price

falling crucible furnace SSJL-1700

Product Description

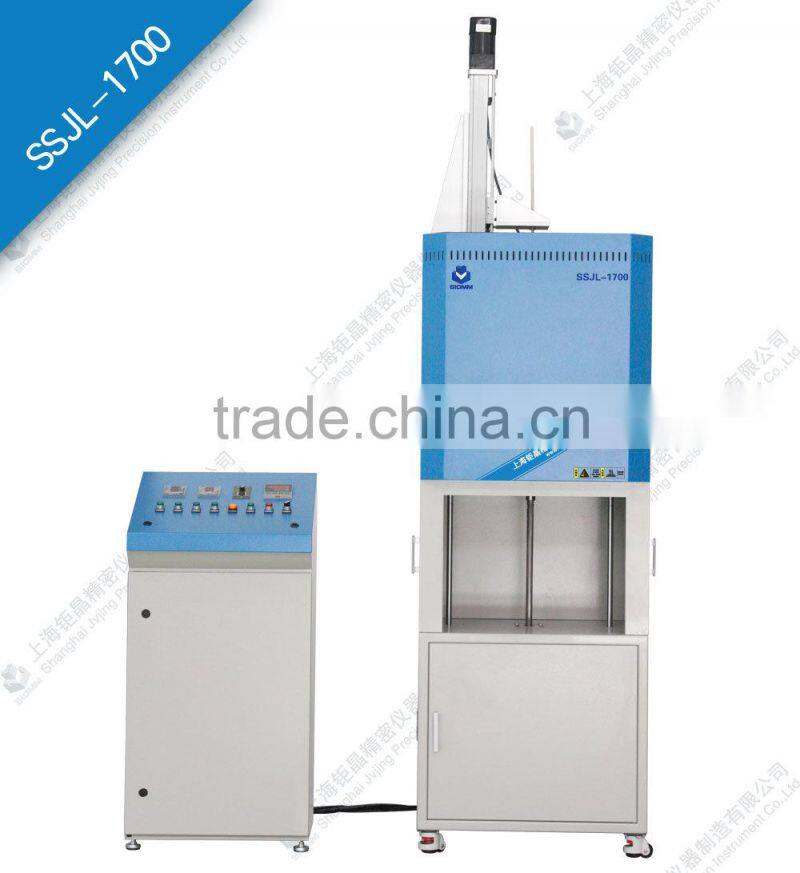

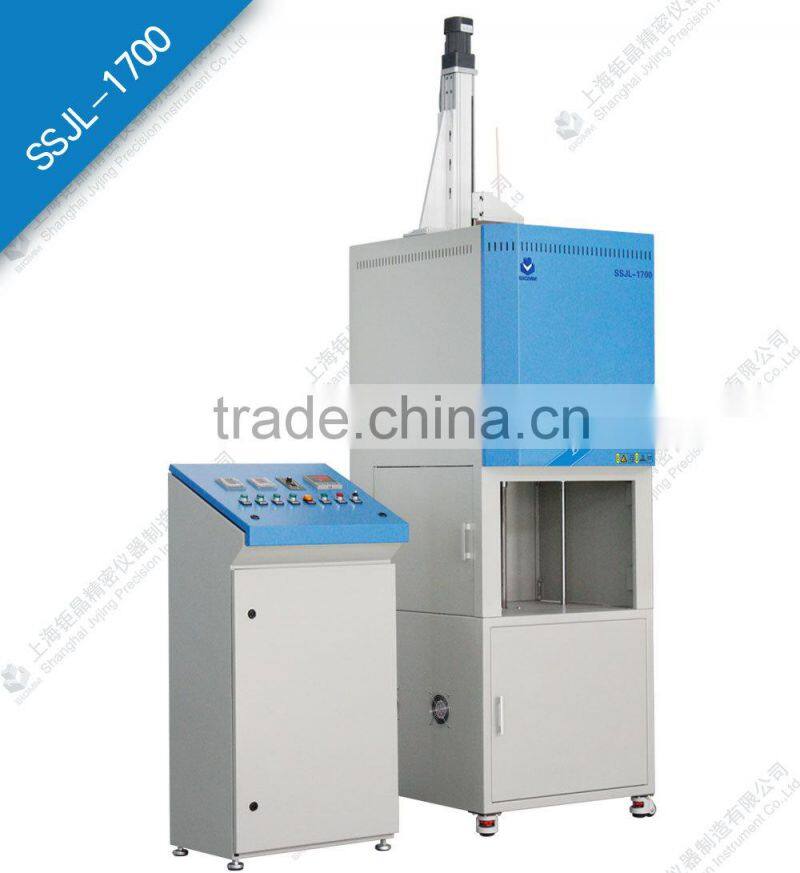

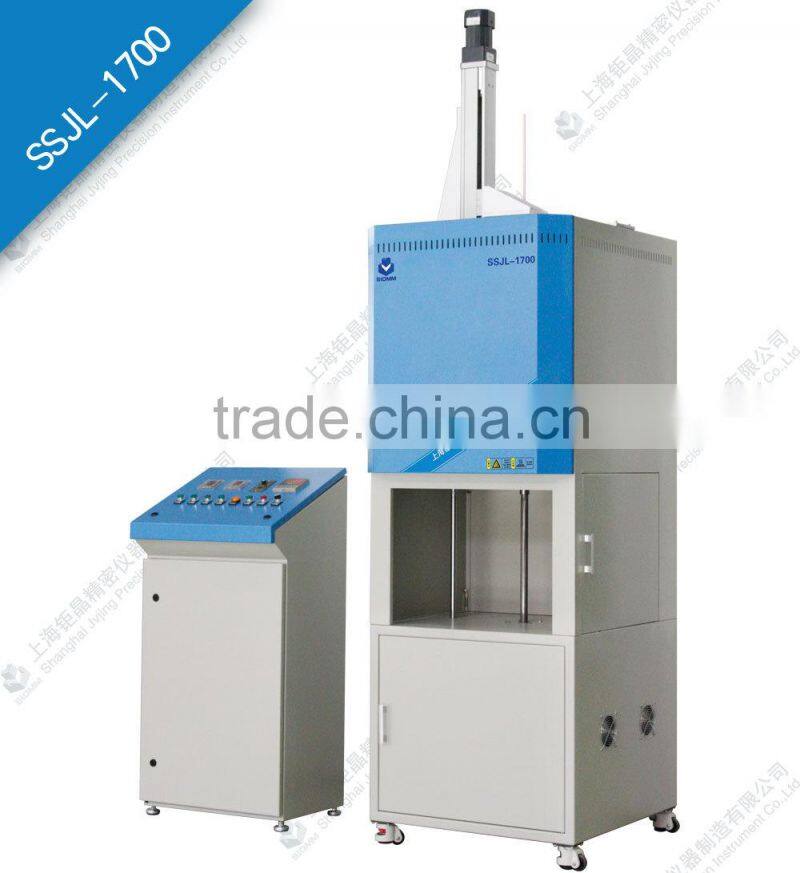

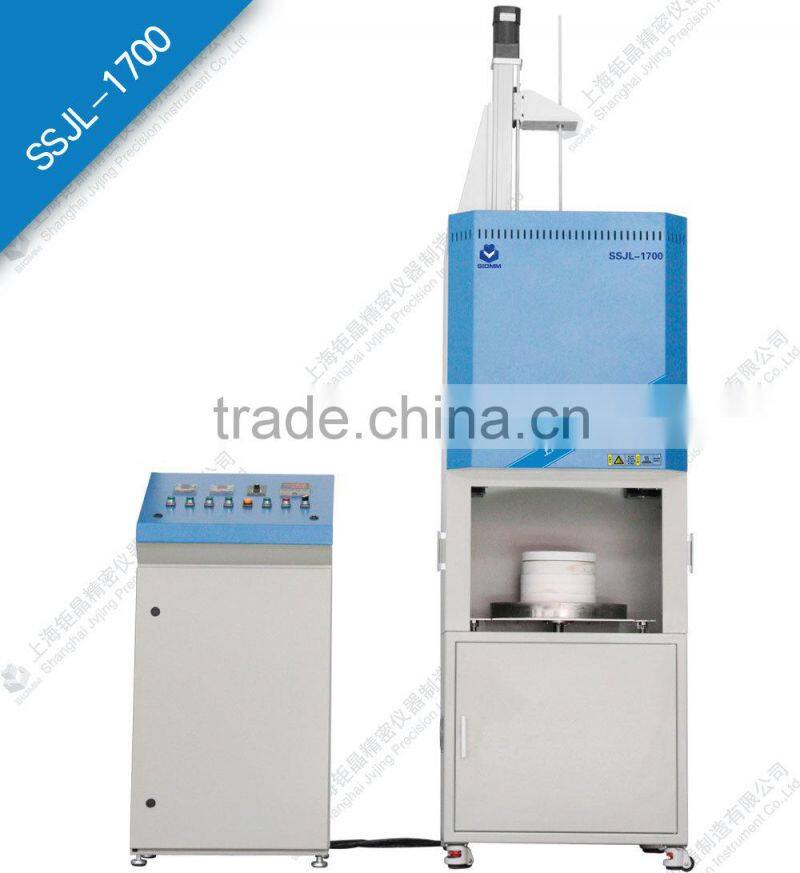

SSJL-1700 falling crucible furnace comprises a furnace body, transition zone, door screw down system and a support frame. With high purity alumina polycrystalline fiber curing furnace chamber, ensure the temperature field more uniform; crucible lifting part adopts stepless speed regulation motor control screw rod, upper and lower limit of the limit switch control, ensure smooth and safety running.

Detailed Images

Functions

1. Crucible free lift, smooth running, convenient for add or taking the specimen in high temperature;

2. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and durability properties; And adopted the imported silicon carbide rod as heating elements, greatly improving the service life.

3. with unique furnace design , durable to use, does not collapse;

4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking, history recorder, output statements; can install the paperless recording device for data storage and output;

5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.

Product Uses

Heat treatment technology research of electronic components, ceramic, aerospace and other special materials; And melting experimental of non-ferrous metal materials.

Specification

Model	SSJL-1700 (Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1)
Furnace chamber size	Φ300*400mm (Customizable)
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 the heating and cooling program
Heating elements	Imported silicon molybdenum rod
Thermometric component	B-mode thermocouple
Power supply	≤1600℃
Max. temperature	1650℃
Constant temperature accuracy	±1℃
Lifting speed	1-100mm/min(adjustable)
Rated power	20KW
Power supply	AC380V 50HZ/60HZ
