398ton Making Machine Plastic

398ton Making Machine Plastic photo-1
398ton Making Machine Plastic photo-2
398ton Making Machine Plastic photo-3
398ton Making Machine Plastic photo-4
398ton Making Machine Plastic photo-5
398ton Making Machine Plastic photo-6
US$ 48,000 - 48,520 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Preform Injection
Style Horizontal
Brand Name Longshun
Model Number LSF-398
Place of Origin Jiangsu, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 1260-1646g
Injection Rate 310-405g/s
Clamping Force 3980KN
Opening Stroke 700mm
Power(W) 22kw
Certification SGS
After-sales Service Provided Engineers available to service machinery overseas







Company Information



 We are manufacturer of 398ton  making machine plastic in Changzhou city of China ,which is quite near Shanghai ,about 1h by train,we are professional in mechanical and enginering ,with 15years manufacturing experience ,we could give technical support during your production ,we specialize in supplying complete production line ,which includes injection machine ,mold ,and auxiliary machines like autoloader ,chiller ,hopper dryer ,crusher ,etc ,besides ,we also help customer for raw material and some other relative machinery ,we help customer in all aspects,as long as they satisfy .



Besides the traditional link-type (toggle) 398ton  making machine plastic
of various specifications, LONGSHENG MACHINERY also has the most advanced full hydraulic two platen plastic injection molding machine, and formed a medical products, thermosetting injection molding , bi-color plastic,special machines and other system perform solutions.

What is the difference with other injection molding machine factories is that LONGSHENG MACHINERY has years of research and production experience of two platen injection molding machine, the innovations used in the field of injection molding machines, to achieve industrial applications.

The full hydraulic two platen plastic injection molding machine has the advantage that conventional rod machine do not have. Not only in the technical features, more reliability and convenience in embody the value of full hydraulic two platen plastic injection molding machines. The applications of hydraulic injection molding machine is the systemic breakthrough of the application of the traditional injection molding machine. In terms of technology, hydraulic application of the two platen structure, breaks the bottlenecks in the application of traditional mechanical structure of injection molding ,which enables customers to design more targeted application of more energy—efficient injection molding products.

For meeting your increasing demand,and insuring our users own more advantages in drastic competition, we will always struggle on the road and make more contributions for our clients,employees and society.

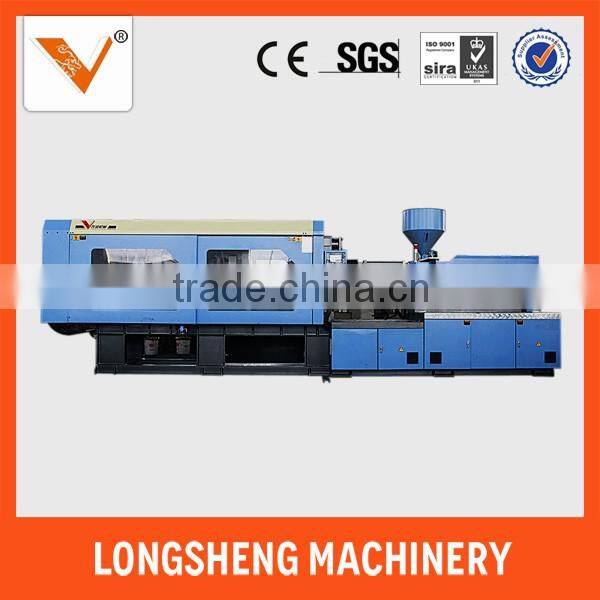

398ton making machine plastic



Product Description





 398ton  making machine plastic suitable for processing and injection of PE, PVC, PP, PS, ABS, PC, Nylon(PA), PU, PET, PMMA(ACRYLIC), POM, LDPE, HDPE, PPR and all other thermoplastic raw material. clamping force of LONGSHENG injection moulding machine is from 68 ton to 3200ton.









INJECTION UNIT



Unit

398ton making machine plastic

A

B

C

           Screw Diameter

Mm

70

75

80

Screw L/D Ratio

L/D

21.4

20

18.8

Short Size

Cm3

1385

1590

1809

Injection weight

G

1260

1447

1646

Injection Rate

g/s

310

356

405

Plasticizing capacity

g/s

60

65

70

Injection Pressure

Mpa

195

158

139

Screw Speed

Rpm

0-165









CLAMPING UNIT

Clamp Force

KN

3980

Space Between Tie Bars

mm

720*720

Toggle Stroke

mm

700

Max. Mold Height

mm

760

Min. Mold Height

mm

280

Ejector Stroke

mm

200

Ejector Tonnage

KN

110

Ejector Number

P

13





OTHERS

Max. pump Pressure

Mpa

16

Pump motor powder

Kw

37

Heater Power

Kw

24.8

Machine Dimension(L*W*H)

M

7.3*2.0*2.2

Oil Tank Capacity

L

850

Machine Weight

T

16

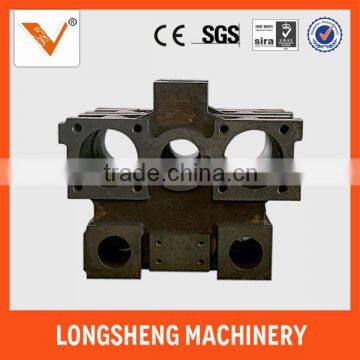

Clamping Unit

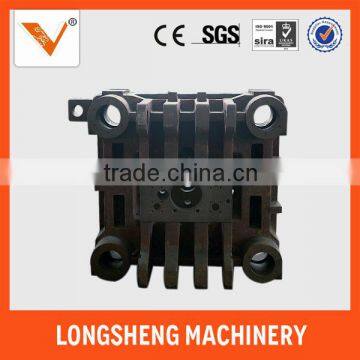

1. Platen with Material QT450-10

Made in China



2. Tie-Bar with Material 40Cr

Made in China

HB250-280

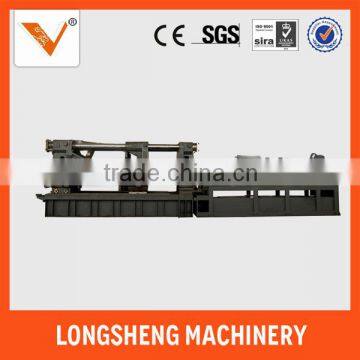

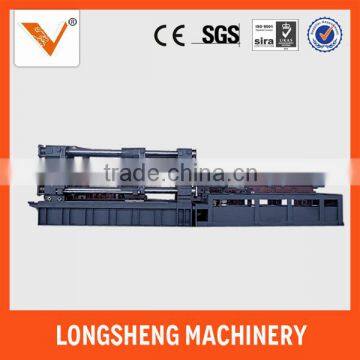

3. Machine Base Frame

Made in China



Injection Unit

1. Screw and Barrel with Material 38GrMoALA

Made in China



2. Motor

ZHONGDA

Made in China

3. Oil Cooler

Made in China



4. Oil  Pump

SETTIMA

ITALY

5. All Hydraulic Valves

With Brand Yuken

Japan

6.Hydraulic Motor

Intermot

Sino-italy

7. Bearing for Hydraulic Motor

With Brand Hazhou

China

8. Selector valve

NORTHMAN

Taiwan

9. Proportional Valve

HNC

Taiwan

Controlling Unit

1. Computer Controlling System

Porcheson

SINO-AUSTRA

2. Power Switch

With Brand Schneider

GERMAN

3. Limited switch

With BrandOMRON

JAPAN

4. One way auto switch(high rupture)

With Brand Schneider

GERMAN

5. PID

With Brand Omron

JAPAN

6. SSR

With Brand Schneider

GERMAN

7. Timer Relay

With Brand omron

JAPAN

8. Approach Switch

With Brand Schneider

GERMAN

9. Servo motor energy saving system

With Brand Star

Made in China

Others

1.five star motor

Intermot

Sino-italy

2. “O” Ring

With Brand NOK (Yuken of Japan)



3. Oil Sealing Ring

With Brand NOK (Yuken of Japan)



4. Anti-wear Ring

Made in Germany



5. Dust Ring

With Brand NOK(Yuken of Japan)



6. Linear Transducer

With Brand LINCC

Switzerland

7. High Press Tube

Made in China



Our Services



Good Quality: Strict quality control system .Good reputation in the market.

Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.

 Good Service: Our company provide one-stop service
