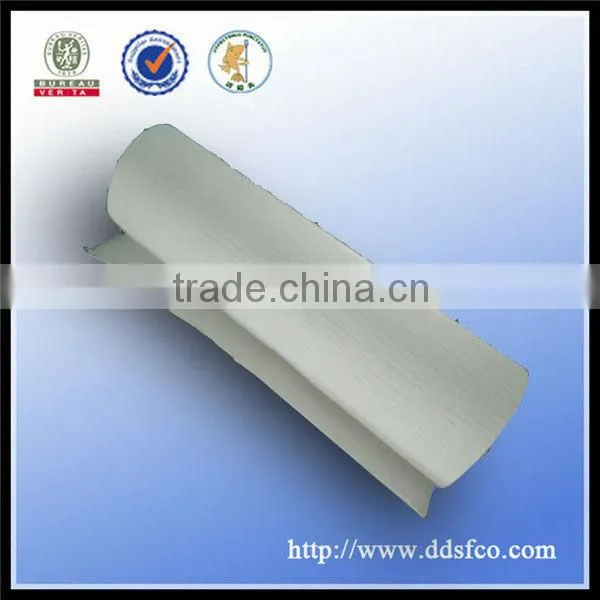

paint booth filter , dust collect filter,filter material
USD $2 - $5
/ Square Meter
100 Square Meters(Min.Order)
- 100000 Square Meter / Square Meters per Month
- Dalian
- T/T Credit Card
You May Like
-
5 micro pp filter cartridge for pre filter
-
washable air filters
-
Air Breather HY-GLQL-001 for India Power Plant
-
Filter air outlet static pressure box aluminum partition filter air outlet
-
Small FFU fan 500 * 500mm FFU thin FFU fan ultra small FFU
-
FFU dust-free supply fan FFU laminar flow hood ultra clean workbench FFU
Product Details
| Condition: | New | Efficiency: | 60%-90% | Construction: | Other, Filter Cotton |
| Filtration Grade: | Medium Filter | Medium Material: | Cotton | ||
| Place of Origin: | Liaoning, China | Brand Name: | Whitewing Headlining Cotton | Model Number: | DEF5 |
| Dimension(L*W*H): | Customized | Weight: | 560g/square meter | Certification: | ISO9001:2008 |
| Warranty: | 30days | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
paint booth filter , dust collect filter,filter material1.20mm
2.clear dust of 5um above
paint booth filter , dust collect filter,filter material
| Filter media: 100% synthetic fiber |
| Primary filter grade: G2 G3 G4 |
| Fine filter grade: F5 F6 F7 |
| Thickness: 8mm 10mm 15mm 20mm 25mm |
| Width: up to 220mm |
| Testing standard: EN799 ANSI/ASHRAE 52.1-1992 |
| Working temperature: up to 120°C |
| Advantage: |
| 1.Solid penetrated glue |
| 2. Precuts for finished dimension |
| 3. Customer logo stamp avaiable |
| 4. Fire prevention |
| 5 Surface with netting or bonded fabric avaiable |
| Application: |
| 1. For pre filtration use |
| 2.Chemical plants |
| 3.Pharmaceutical and food industry |
| 4.Gas trubo and Co-generation utility plants |
| 5.Paint spray plants |
| 6.Pre-filtration and recycling or exhaust air |
| TYPE | Thickness | Wind Speed | Initial Resistance | Final Resistance | Efficiency | Dust Capacity | Thermal Resistance | Humidity |
| mm | m/s | Pa | Pa | % | g/sqm | °C | % | |
| G2 | 10 | 2 | 20 | 120 | 73% | 320 | 120°C | 100 |
| G3 | 20 | 1.5 | 20 | 200 | 85% | 500 | 120°C | 100 |
| G4 | 20 | 1 | 25 | 200 | 92% | 470 | 120°C | 100 |
| F5 | 20 | 0.3-0.6 | 35 | 250 | 98 | 438 | 120°C | 100 |
| F6 | 20 | 0.3-0.6 | 55 | 300 | 99 | 425 | 120°C | 100 |
| F7 | 20 | 0.3-0.6 | 80 | 400 | 99.9 | 400 | 120°C | 100 |
