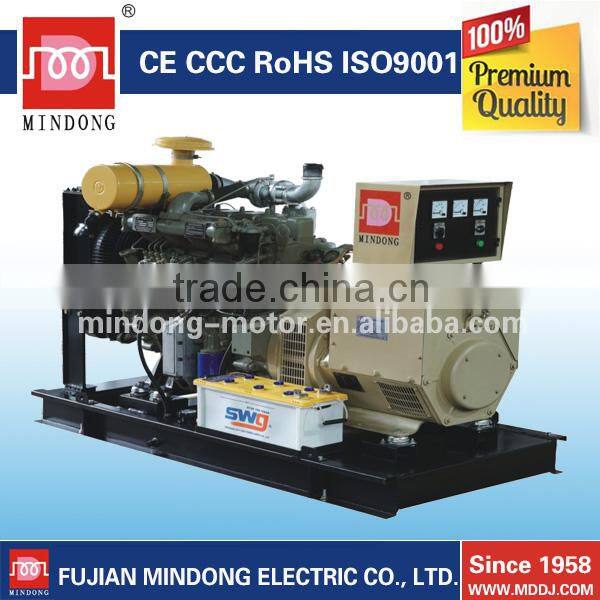

High Quality,Factory Price 25kva - 160kva MINDONG Diesel Generator

Specifications

 Quality,Factory Price 25kva - 160kva MINDONG diesel  generator

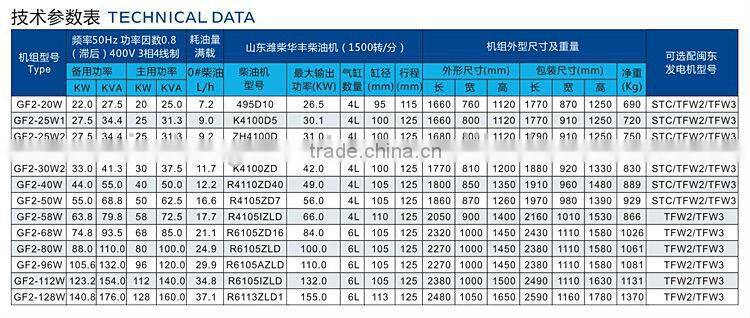

 Diesel generator. set technical data

1 Generator Set

   Generator set use the integrated structure. base frame with high-strength steel Generator set connected with full suspension shock absorber design, good damping effect and small shake.

   Diesel choice of Shanghai jiading or Shanghai Niuhe diesel. 12V/24V DC electric start. with tank water cycling and Fan cooling.

   Generator choice of MINDONG self-produced generator. STC series third harmonic generator; TFW2/TFW3 AVRAutomatic Voltage Regulator . class H insulation. protection class according to IP21/22 standard

   Control panel: standard configure Backpack switch box creen liquid crystal display {LCD)-specific control module controls. have automatic start. data acquisition and display, fault alarm and protection functions ,configuration of electric monitoring instrument and diesel operation instrument,

   Generator set have generator and engine operation monitoring instrumentation. with MCCB circuit breakers. with short circuit, overload protection function .

   Generator set output power to meet the following environmental conditions:≤1000m Ambient temperature:≤40°C.

2,Generator set with 12V high-performance lead-acid batteries and charging generator, can be six consecutive start.

3,Generator set equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

4,Generator set attach muffler. corrugated absorber and simple installation materials. configure the base shock absorber.

5,Warranty period: from the date of out of warehouse for one year or l000 hours.

6,Generator set selectable configuration includes the following.

•Self starting control module

•Remote monitor module

•Automatically load the output of the cabinet. the ATS automatically switch cabinet and the AMF mains voltage

•Detection module

•Generator over-current fault alarm

•Water or oil heater

•Mains floating chargers
